Fiamma Fast Clip System

Suits F80 S, F45 S and earlier F45

Fiamma's new Fast Clip is lighter and simplified, the side panels of the Privacy room are quickly and easily joined with the fabric of the awning.

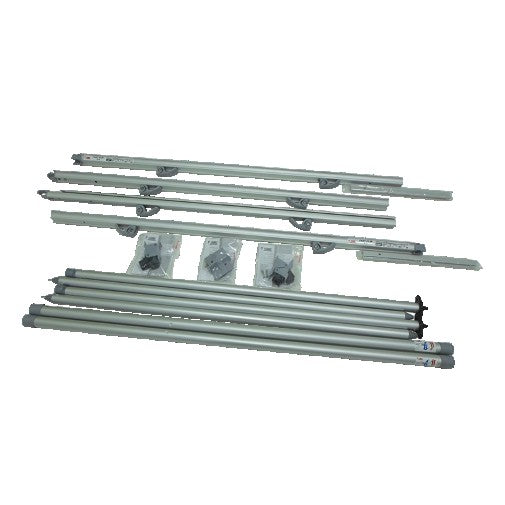

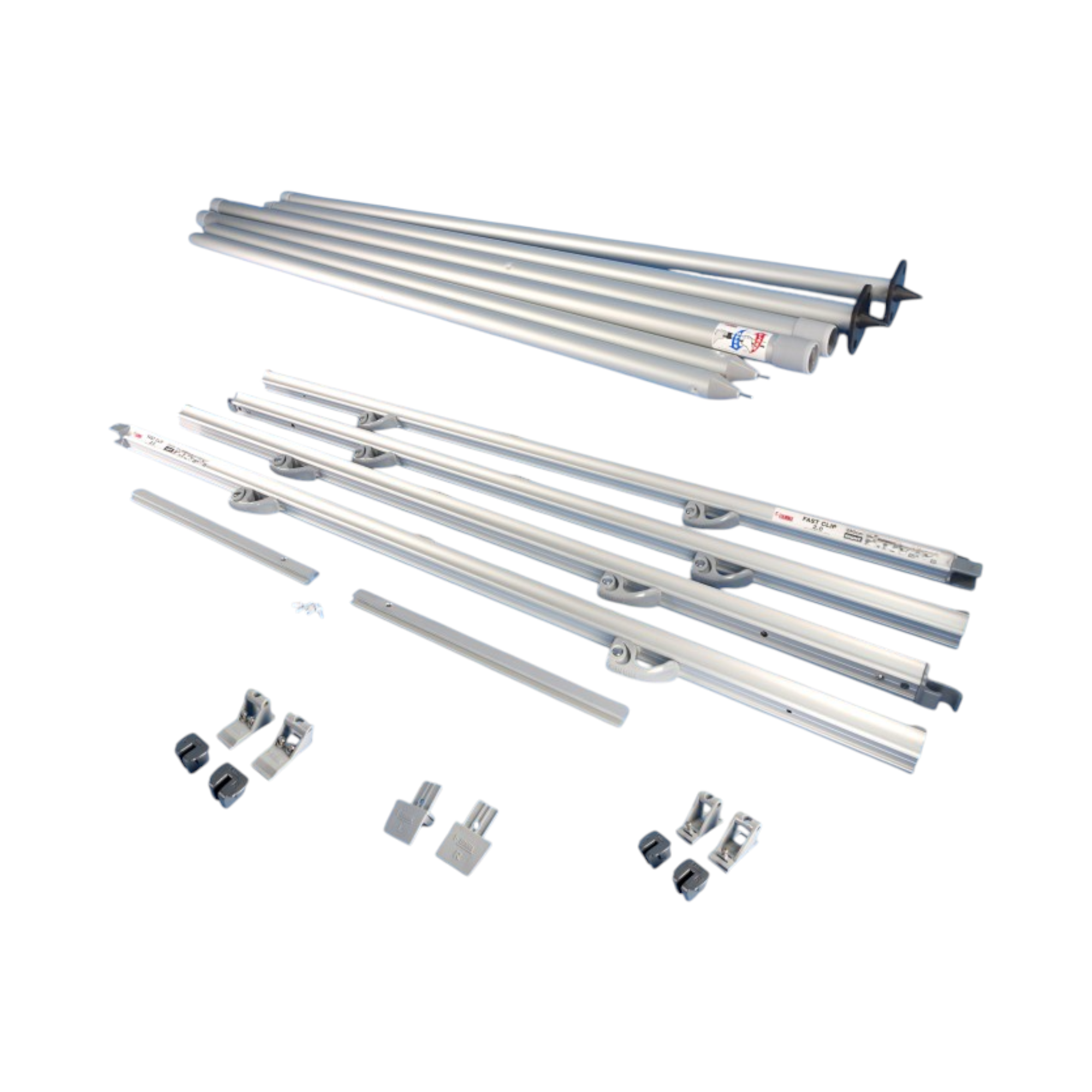

In order to guarantee a perfect seal the fabric of the awning is blocked between the hinged lower rail and the upper rail by internal easy clamps. The Fast Clip is delivered with two vertical poles that are fixed between the side panels and the vehicle wall.

Made of anodized aluminium. It is adaptable for awnings with a maximum extension of 250cm.

• Upper bar is now divided into 4 pieces (old one had 2 pieces), allowing the user to close one level at a time
• Sections are stronger
• Stronger joints (between parts) to avoid central bending
• Bigger levers, easier to unhook and can be closed in every direction
• Levers can not come out of their positions
• By turning the levers you increase or decrease the grip on the awning fabric
• Plastic end "caps" have been shaped in order to cover the end part (in aluminium) that could damage the fabric of the side walls when inserting them into the rail

200-08002
