EN1226S-X

Enerdrive 2600W 12v True Sine Wave Inverter with Built in RCD

This product is on order with our supplier (if no add to cart button is available, then we are not confident of the suppliers delivery date)

Our preferred invertor for running power to all power points in a RV.

This is thoroughly proven unit and we have never had reports of one failing to run any appliance including all air-cons in a caravan.

With in inbuilt transfer switch and its own RCD to maximize safety.

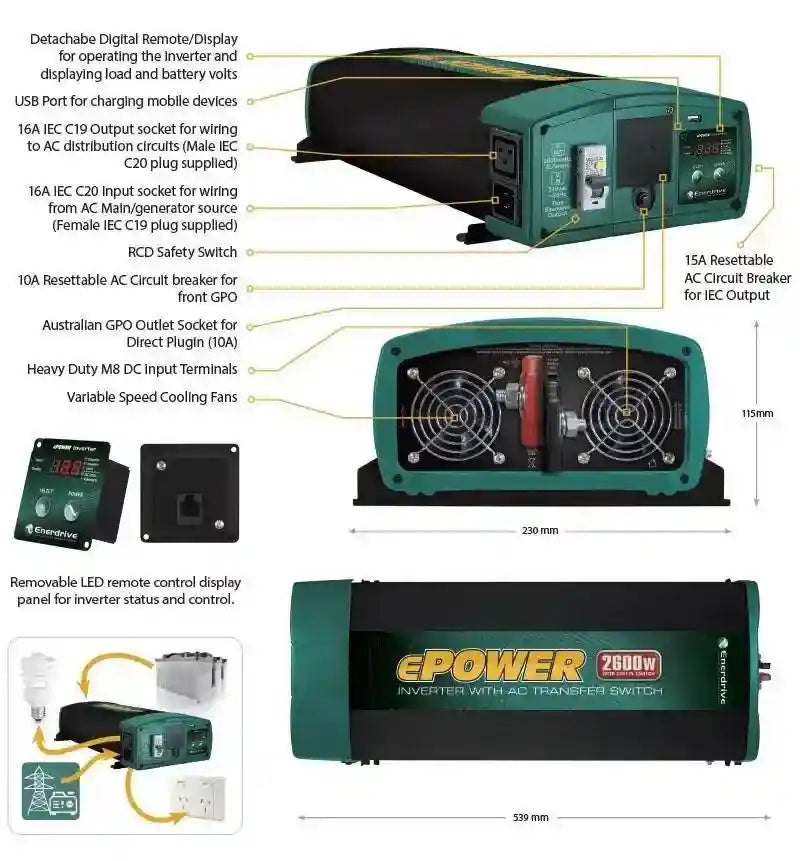

Key Features:

  • Seamless 16A AC Internal Transfer Switch
  • AC RCD/Safety Switch with test button

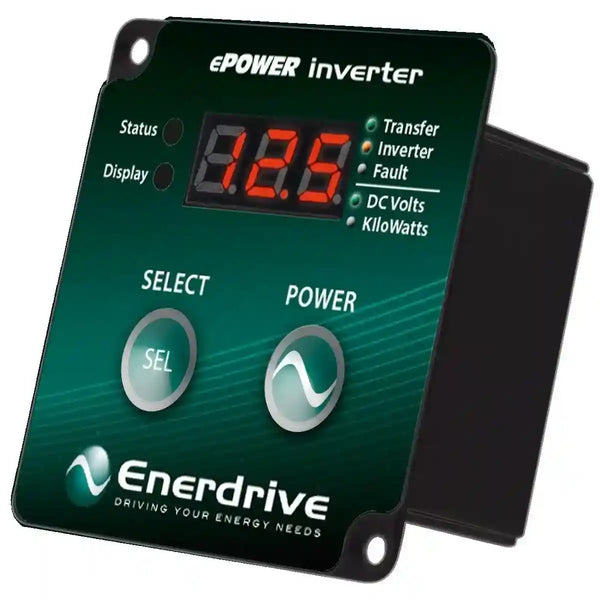

  • Removable LED Remote Control Display Panel
  • Regulated Pure Sine Wave Output
  • Silent Operation
  • Compact Size for Easy Installation
  • USB Port for charging USB devices
Model – Description EN1226S-X
AC Output Power 2600W
AC Output Current 11.3A
AC Output Voltage 230 Vac / 50 Hz
AC Output Waveform Sinewave ( 3% THD)
Nominal DC Input Voltage 12.5 VDC
No Load battery draw 1.5 ADC
DC Input Voltage operating range 10.5 – 15.5 VDC
Under Voltage Alarm 11.0 / 12.1 VDC
Under Voltage Alarm Recovery 11.3 / 12.3 VDC
Under Voltage Shutdown 10.5 / 11.8 VDC
Under Voltage Shutdown Recovery 12.0 / 12.6 VDC
Over Voltage Shutdown 15.5 VDC
USB Port 5V, 750 mA

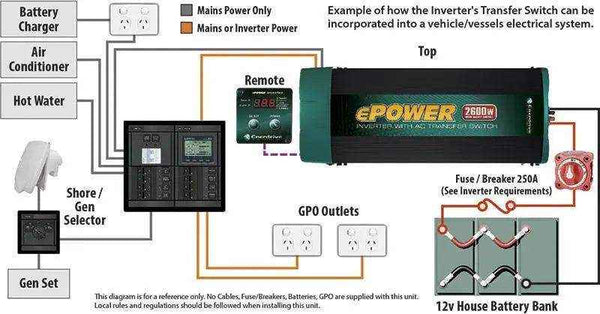

AC Transfer Switch
Transfer Time 30 ms
Transfer Relay Rating 16A (resistive load)
AC Input socket IEC-C20 16A max
AC Output socket IEC-C19 16A max
AC Output Front GPO 10A max
Safety and Environmental
Conformance All required Australian Standards , CE LVD: EN/IEC 62040-1, IEC61558-2-16
EMI / EMC CE EMC: EN/IEC 62040-2 category C1
Agency Markings RCM , CE
Operating Temperature 0°C to 40°C
Storage Temperature -20°C to 60°C
Relative Humidity 5-90% non-condensing
Operating Altitude Up to 3000 meters above sea level
Weights and Dimensions
Weight 7.0 kg
Dimensions (W x L x H) 560x230x115 mm
Warranty 3 Years

ePOWER 2600W True Sine Wave Inverter with AC Transfer Switch and Safety Switch

Enerdrive's ePOWER 2600W Inverter is a professional-grade, high-quality device that utilizes the latest power conversion technology to deliver clean and energy-efficient true sine wave AC power from a DC source. It comes with an integrated AC Transfer Switch that permits for a smooth transition of AC power between Mains/Generator and Inverter and a RCD Safety Switch that ensures safety and security in just 0.03 seconds. Able to accommodate 2600W, the ePOWER is a great option for powering tools, electronics, and appliances. Additionally, the inverter is backed by a 3-year warranty.
