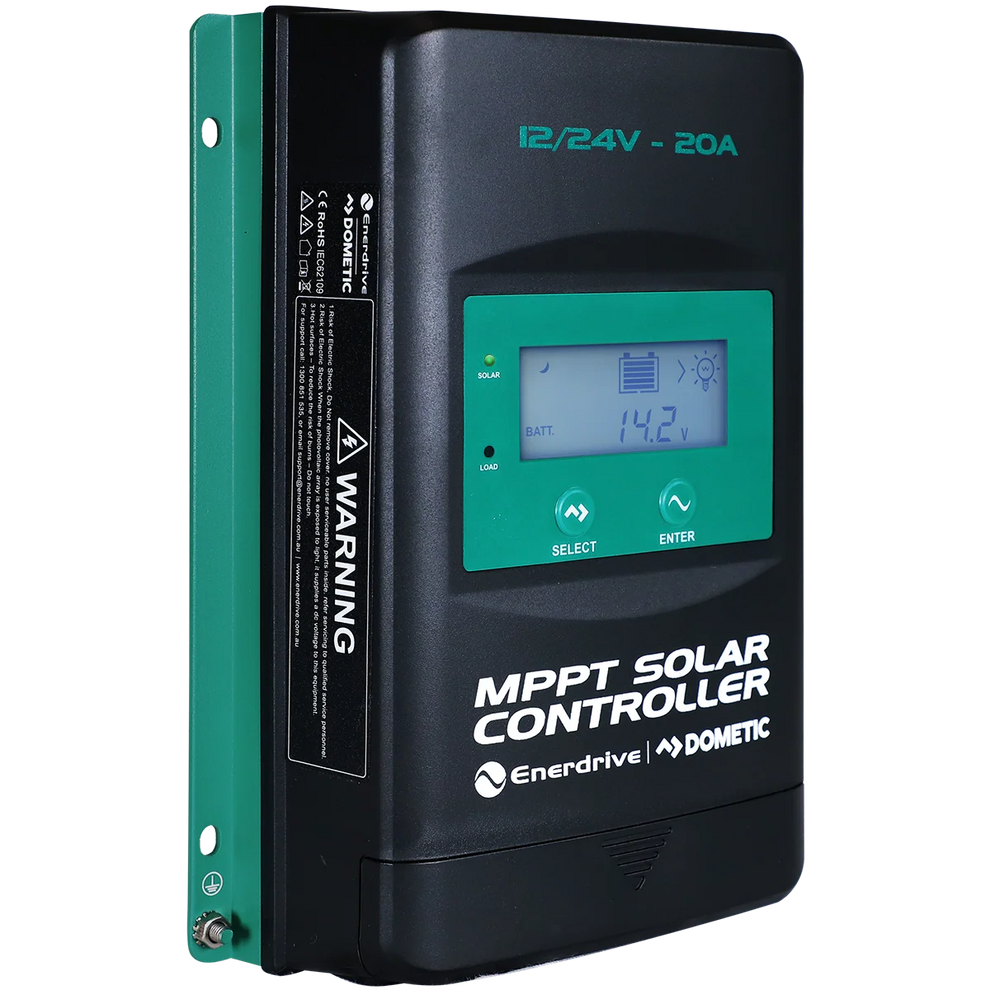

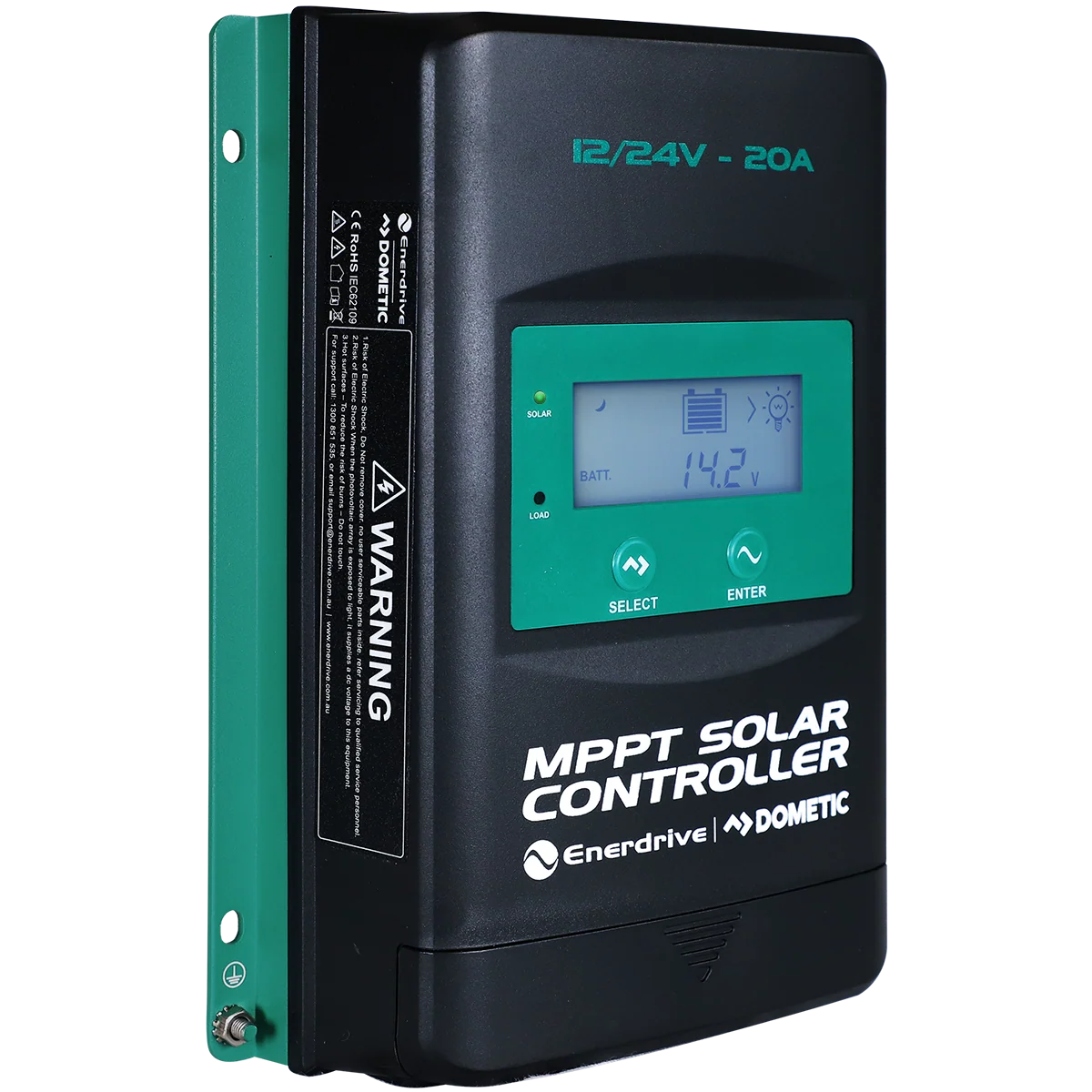

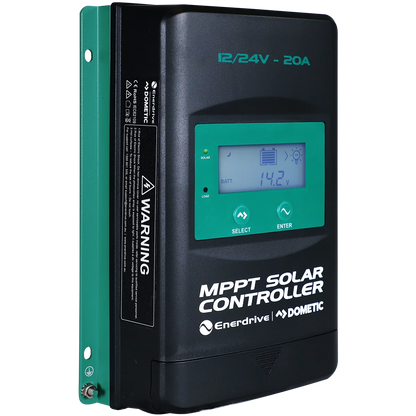

Enerdrive Mppt Solar Controller Solar Regulator - 20amp 12/24V

Enerdrive MPPT Solar Controller Solar Regulator - 20amp 12/24V

The Enerdrive MPPT Solar Controller uses an advanced MPPT (Maximum Power Point Tracking) algorithm to efficiently track the maximum power point of your solar panel array. This reduces power loss and increases energy capture by 20%-30% compared to traditional PWM chargers. The controller automatically selects between 12V and 24V systems and supports battery voltages from 8V to 32V.

It features a self-adaptive three-stage charging process to extend battery life and improve system performance. Comprehensive electronic protection safeguards against overcharge, over-discharge, and reverse polarity connections on the PV and battery terminals. This controller is suitable for applications such as RVs, marine use, and remote off-grid systems.

The unit has an IP33 rating for ingress protection and includes an isolated RS485 communication port for system monitoring and future upgrades. A built-in LCD screen provides real-time energy statistics and multiple load operation modes.

Features

• MPPT Technology: Fast tracking of maximum power point for charging efficiency up to 30% higher than PWM controllers.
• Self-Adaptive Three-Stage Charging: Digital controlled charging to extend battery lifespan and optimise performance.
• Battery Compatibility: Works with lead-acid (wet, AGM) and lithium batteries.
• Electronic Protection: Protects against overcharge, over-discharge, and reverse polarity on both PV and battery connections.
• Voltage Support: Auto-selects 12V or 24V systems; accepts 8-32V battery voltage.
• High Efficiency: Up to 99.5% tracking efficiency and 98.6% DC/DC transfer efficiency.
• Ingress Protection: Rated IP33 for protection against solid objects and water spray.

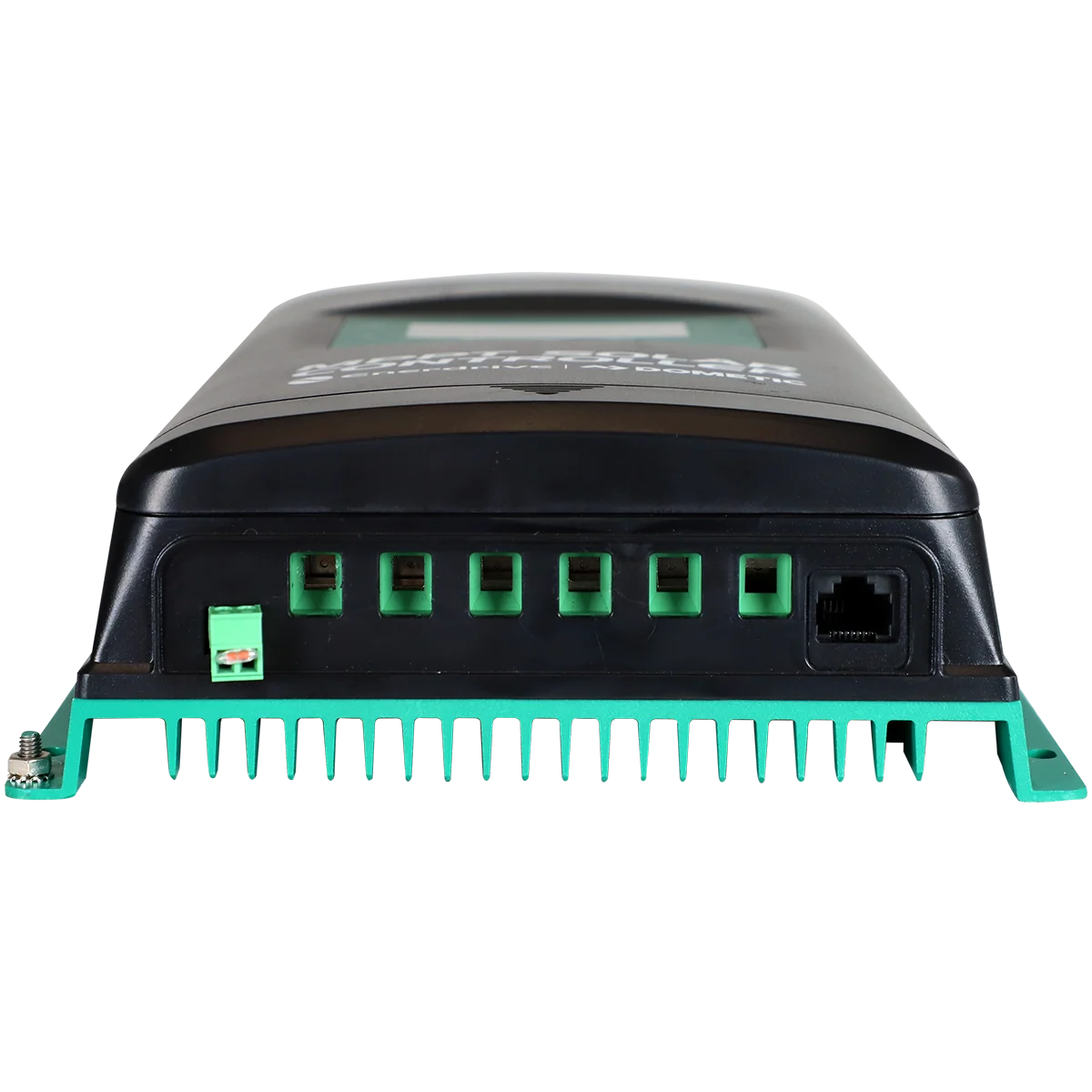

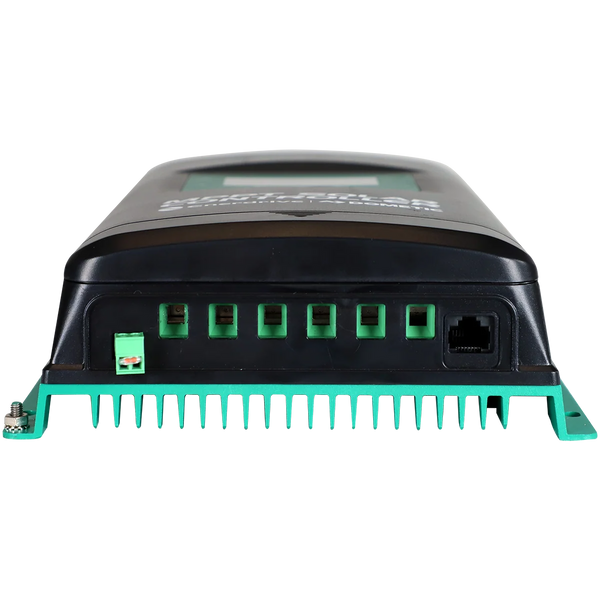

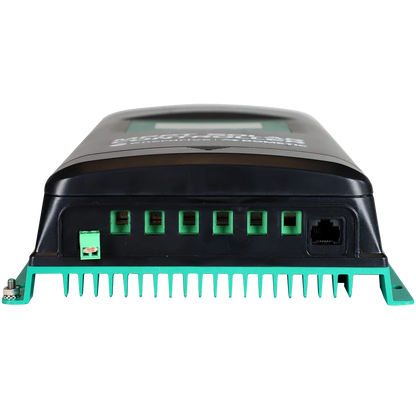

• RS485 Communication Port: Isolated interface for remote monitoring and system integration.
• Low Power Consumption: Self consumption less than 30mA at 12V and 16mA at 24V.
• Operating Temperature: Suitable for environments from -25°C to +50°C.
• LCD Display: Shows real-time energy data and supports multiple load modes with configurable backlight timeout.
• Physical Dimensions: 217 mm (L) x 158 mm (W) x 56.5 mm (H).
• Recommended PV Array Power: 300W for 12V systems, 600W for 24V systems.
• Maximum PV Array Power (Overdrive): 360W at 12V, 720W at 24V.

Use the Enerdrive MPPT Solar Controller for reliable and efficient solar charging in a range of off-grid power setups including caravans, boats, and remote monitoring stations.
