EN230100-12

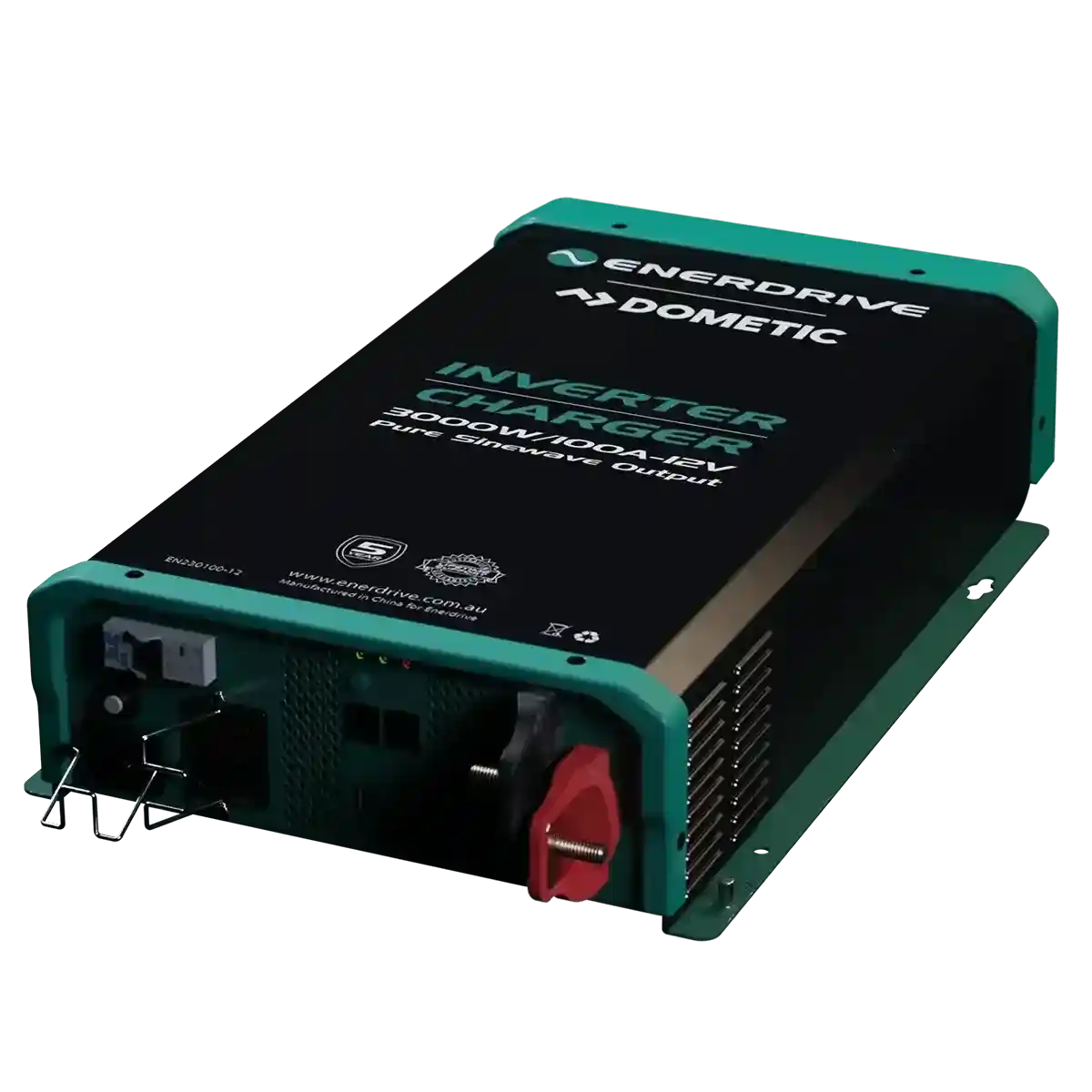

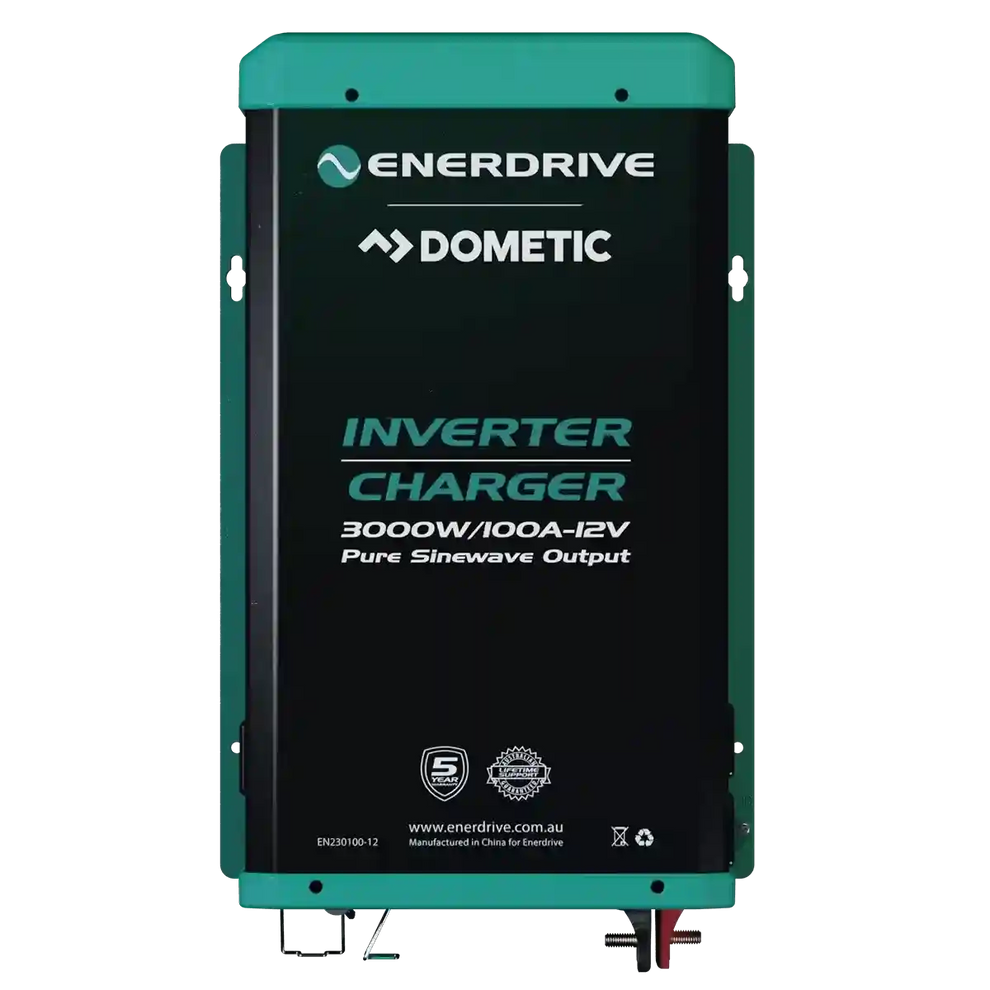

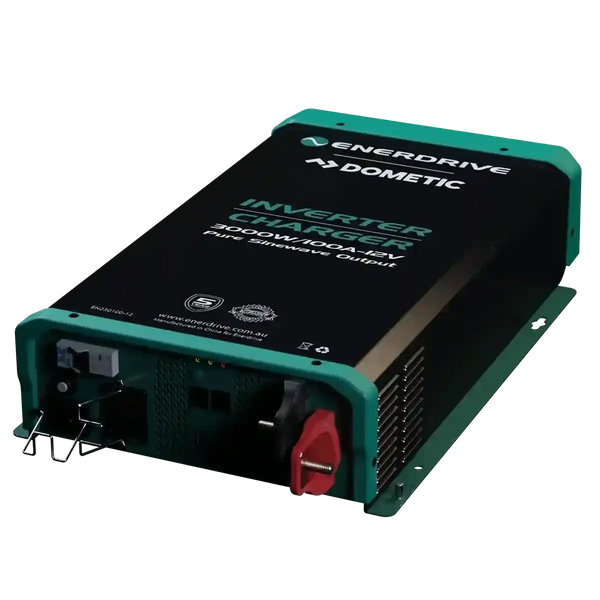

Enerdrive Inverter Charger Combi 3000W 100A 12v

This product is on order with our supplier (if no add to cart button is available, then we are not confident of the suppliers delivery date)

12V 3000W/100A Inverter-Charger (Model EN230100-12)

Introducing our advanced 12V 3000W/100A Inverter-Charger, a premier solution designed to provide you with reliable True Sinewave AC power for RVs, Marine, 4WD, and off-grid applications. It also efficiently recharges your battery when connected to 240V AC. This product combines state-of-the-art technology with user-friendly design, ensuring your power needs are met with efficiency and safety.

Key Features:

  • True Sinewave Output: Delivers clean, stable power for sensitive electronics, ideal for high-power appliances.
  • Automatic Transfer Switch: Quick switch between 240V mains and battery power, ensuring continuous power supply.
  • Multi-Stage Charging: Tailored charging profiles for various battery types, maximizing battery lifespan.
  • Safety First: Integrated AC RCD/Safety Switch for immediate power cut-off in case of electrical faults.
  • Remote Control Display Panel: For easy monitoring and control of your power setup.
  • Compact & Quiet Operation: Fits in tight spaces and runs quietly, perfect for any setup.

Technical Specifications:

  • AC Output Power: 3000W
  • Charger Output Current (Maximum): 100A
  • AC Output Current: 13.0A
  • AC Output Voltage: 230VAC
  • AC Output Waveform: True Sinewave (<3% THD)
  • Nominal DC Input Voltage: 12.5Vdc
  • DC Input Voltage Operating Range: 10.5 – 16.5 VDC
  • Under Voltage Alarm / Shutdown: 11.0 / 12.5 VDC & 10.5 / 12.0 VDC
  • Over Voltage Shutdown: 16.5 VDC
  • Transfer Time: <30ms
  • Transfer Relay Rating: 16A
  • AC Input/Output Sockets: IEC-C20 / IEC-C19 (16A Heavy Duty Connectors)
  • Conformance: LVD: EN/IEC 62040-1, IEC 61558-2-16
  • Agency Markings: CE
  • Operating Temperature: 0°C to 40°C
  • Storage Temperature: -20°C to 60°C
  • Relative Humidity: 5 - 90% non-condensing
  • Operating Altitude: Up to 3000m above sea level
  • Weight: 10.4kg
  • Dimensions (W x H x D): 440.7mm x 307mm x 108mm
  • Warranty: 5 Years

What's Included:

  • 1 x Enerdrive EN230100-12 3000W/100A-12V Inverter / Charger (Combi)
  • Remote Control Display Panel
  • 4m 1.5mm2 AC Lead with IEC C19-C20 Connectors
