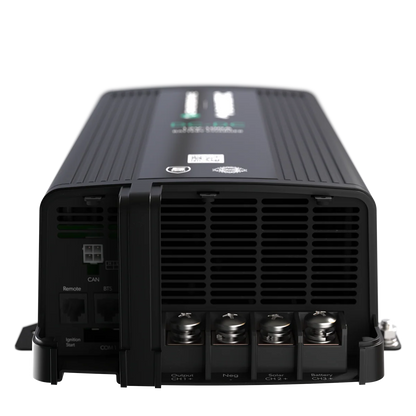

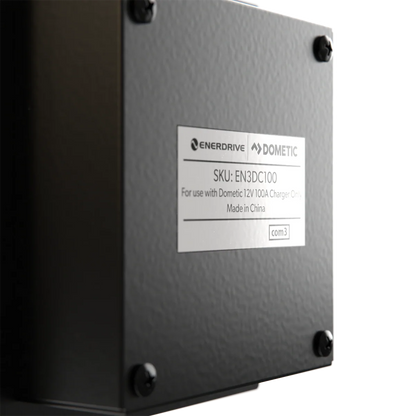

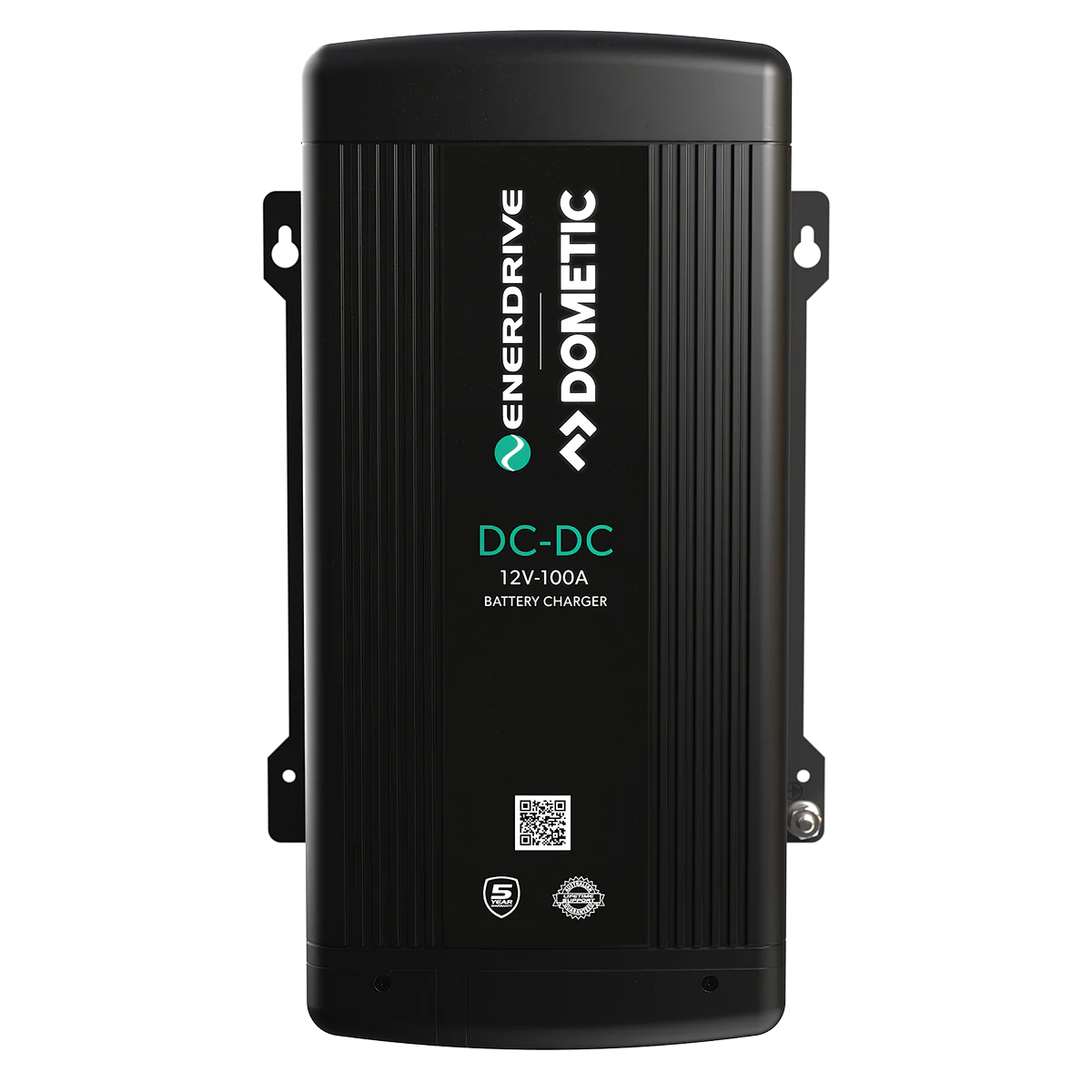

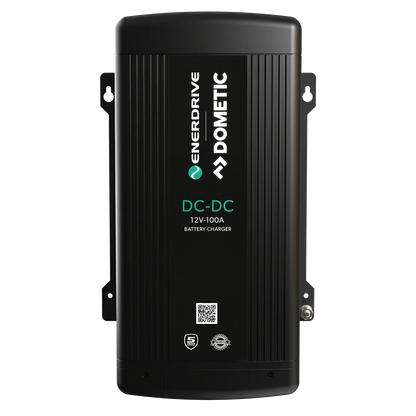

Enerdrive EN3DC100 12V 100A DC-DC Battery Charger with MPPT Solar and Alternator Inputs

Enerdrive EN3DC100 12V 100A DC-DC Battery Charger with MPPT Solar and Alternator Inputs

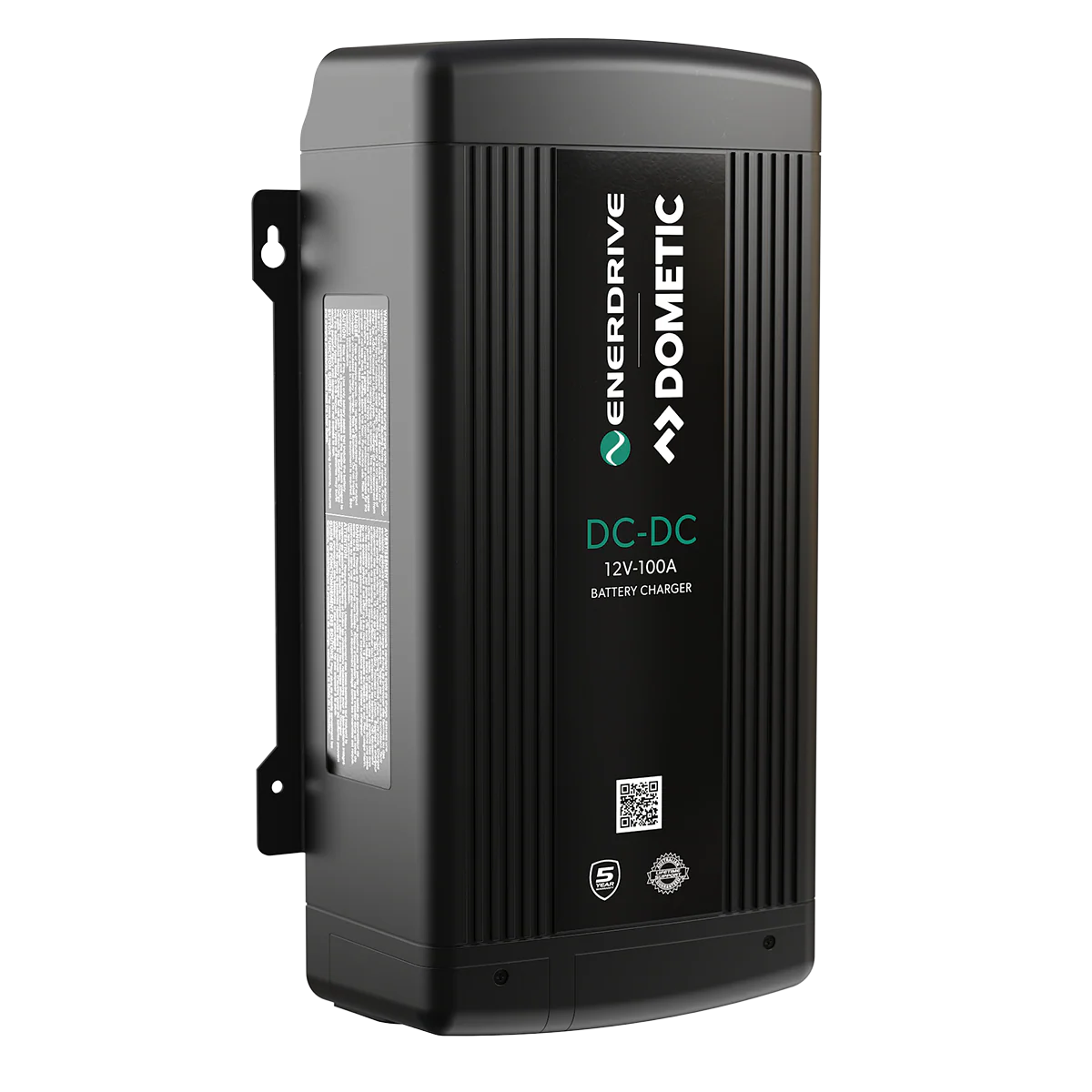

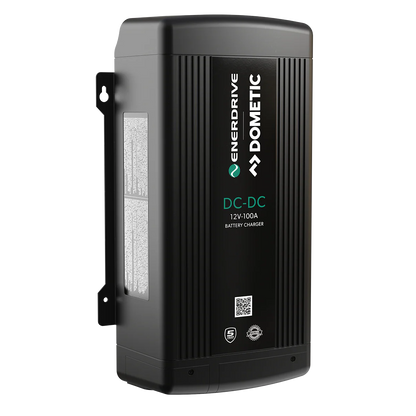

The Enerdrive EN3DC100 12V 100A DC-DC Battery Charger with MPPT Solar and Alternator Inputs is a dual-input 12V DC charger providing up to 100A alternator charging and up to 80A MPPT solar charging to a single house battery bank.

Features

• Model: Enerdrive EN3DC100 12V 100A DC-DC Battery Charger with MPPT Solar and Alternator Inputs
• System voltage: 12V DC nominal output
• Maximum output current: 100A DC charger output
• Adjustable output: selectable from 10A to 100A in 10A increments
• Charging stages: 4-stage charging – Test, Bulk, Absorption, Float
• Equalise function: equalise voltage 15.5V (Flooded batteries only), equalise current 10% of Bulk setting
• Output bank: 1 house battery bank
• Compatible battery types: Gel, AGM, Flooded, Lithium, Program (equalisation for Flooded only)
• Bulk voltage range: 13.8–14.8V DC
• Float voltage range: 13.0–13.8V DC
• Efficiency: >95% charger efficiency
• Minimum house battery voltage: 8.0V DC
• Standby draw (unit ON): <600mA from house battery
• Standby draw (unit OFF): <1mA from house battery

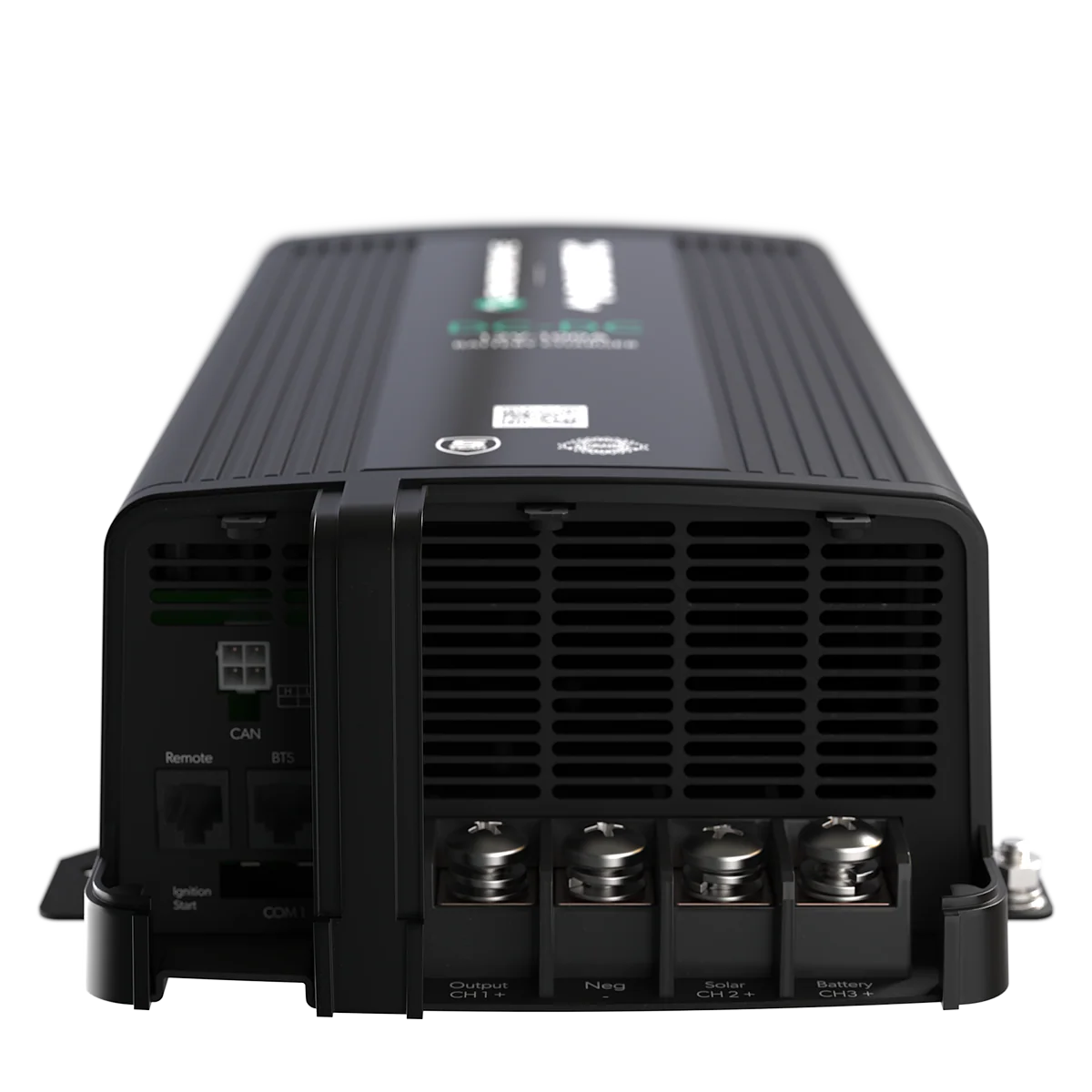

• Solar input: dedicated MPPT solar input (CH2)
• Solar input voltage range: 14.5–55V DC
• Solar input current: up to 80A max
• Solar input power (12V panels): up to 1200W max
• Solar input power (24V panels): up to 2000W max (55V max)
• MPPT tracking efficiency: >98%
• Alternator input: dedicated alternator input (CH3)
• Alternator input voltage range: 10.5–16V DC
• Maximum alternator input current: 135A (internally limited to 100A charge output)
• Startup voltage with ignition sense (COM1): 11.7–12.6V DC
• Startup voltage without ignition sense (COM1): >12.7V DC
• Suitable alternators: high-output 12V alternators approximately 180A or higher (check vehicle documentation)
• Cooling: forced air ventilation (fan cooled)
• Ingress protection: IP32 rated
• Operating temperature range: -20°C to 40°C
• Storage temperature range: -40°C to 70°C

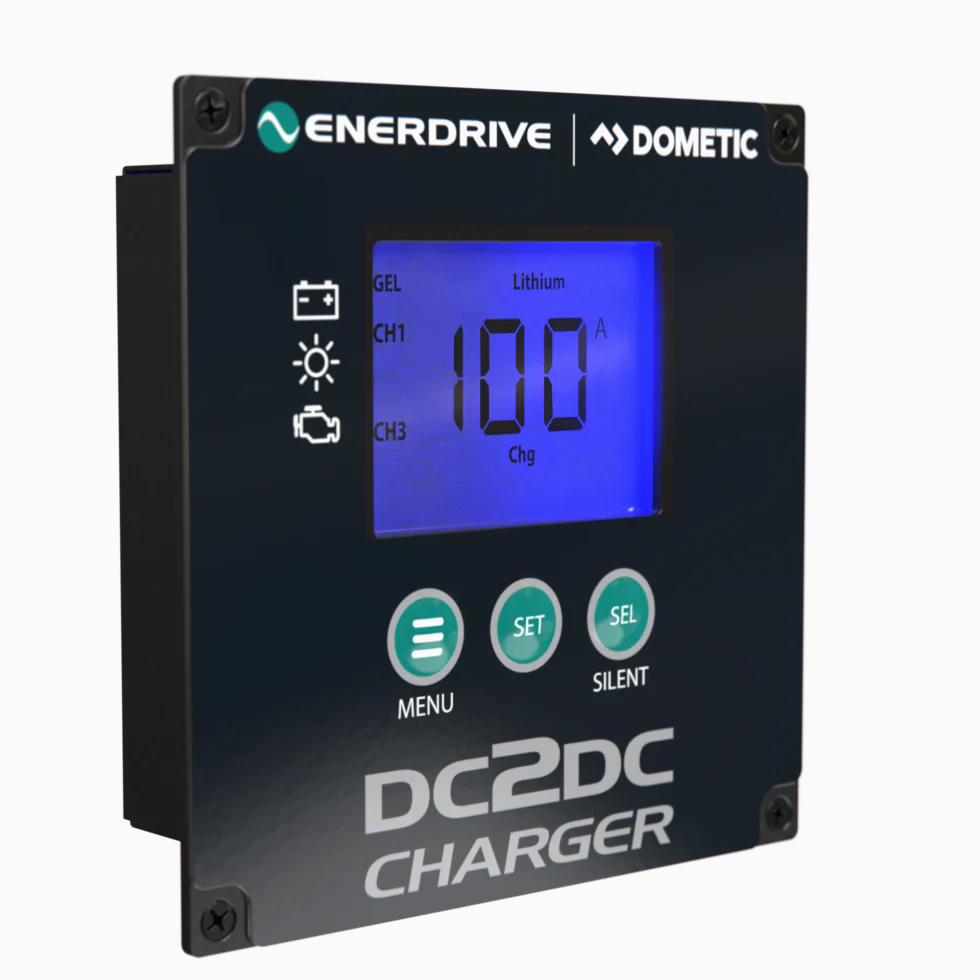

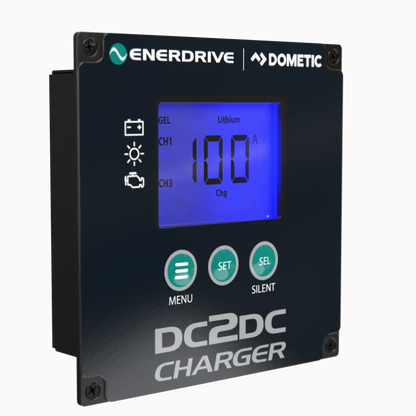

• Remote display: included backlit LCD display, 100 x 100mm, 0.4kg
• Remote display communication: CANBUS

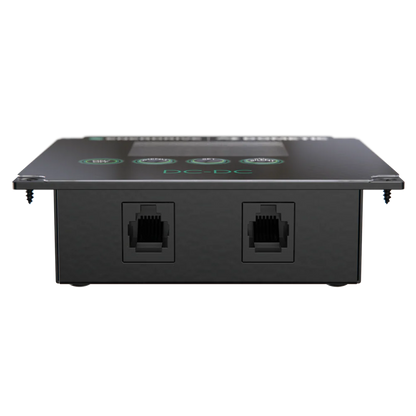

• Remote display connection: RJ12 port
• Battery temperature sensor port: RJ12 (optional sensor)
• Protections: reverse battery, short circuit, over charge, over temperature
• Dimensions (charger): 356 x 205 x 97mm
• Weight (charger): 3.23kg
• Weight (remote display): 0.4kg
• Warranty: 5 years (manufacturer conditions apply)
• Typical applications: large 4WDs, utes, trucks, caravans, motorhomes, and marine systems with suitable high-output alternators
• Recommended accessories: Enerdrive solar panels, Enerdrive or compatible lithium and AGM house batteries, Enerdrive battery temperature sensor, Enerdrive or compatible battery monitors
