Enerdrive EN3DC100 12V 100A DC-DC Battery Charger with MPPT Solar and Alternator Inputs
$1,989.00
EN3DC100
Couldn't load pickup availability
Enerdrive EN3DC100 12V 100A DC-DC Battery Charger with MPPT Solar and Alternator Inputs
The Enerdrive EN3DC100 12V 100A DC-DC Battery Charger with MPPT Solar and Alternator Inputs is a dual-input 12V DC charger providing up to 100A alternator charging and up to 80A MPPT solar charging to a single house battery bank.
Features
- Model: Enerdrive EN3DC100 12V 100A DC-DC Battery Charger with MPPT Solar and Alternator Inputs
- System voltage: 12V DC nominal output
- Maximum output current: 100A DC charger output
- Adjustable output: selectable from 10A to 100A in 10A increments
- Charging stages: 4-stage charging – Test, Bulk, Absorption, Float
- Equalise function: equalise voltage 15.5V (Flooded batteries only), equalise current 10% of Bulk setting
- Output bank: 1 house battery bank
- Compatible battery types: Gel, AGM, Flooded, Lithium, Program (equalisation for Flooded only)
- Bulk voltage range: 13.8–14.8V DC
- Float voltage range: 13.0–13.8V DC
- Efficiency: >95% charger efficiency
- Minimum house battery voltage: 8.0V DC
- Standby draw (unit ON): <600mA from house battery
- Standby draw (unit OFF): <1mA from house battery
- Solar input: dedicated MPPT solar input (CH2)
- Solar input voltage range: 14.5–55V DC
- Solar input current: up to 80A max
- Solar input power (12V panels): up to 1200W max
- Solar input power (24V panels): up to 2000W max (55V max)
- MPPT tracking efficiency: >98%
- Alternator input: dedicated alternator input (CH3)
- Alternator input voltage range: 10.5–16V DC
- Maximum alternator input current: 135A (internally limited to 100A charge output)
- Startup voltage with ignition sense (COM1): 11.7–12.6V DC
- Startup voltage without ignition sense (COM1): >12.7V DC
- Suitable alternators: high-output 12V alternators approximately 180A or higher (check vehicle documentation)
- Cooling: forced air ventilation (fan cooled)
- Ingress protection: IP32 rated
- Operating temperature range: -20°C to 40°C
- Storage temperature range: -40°C to 70°C

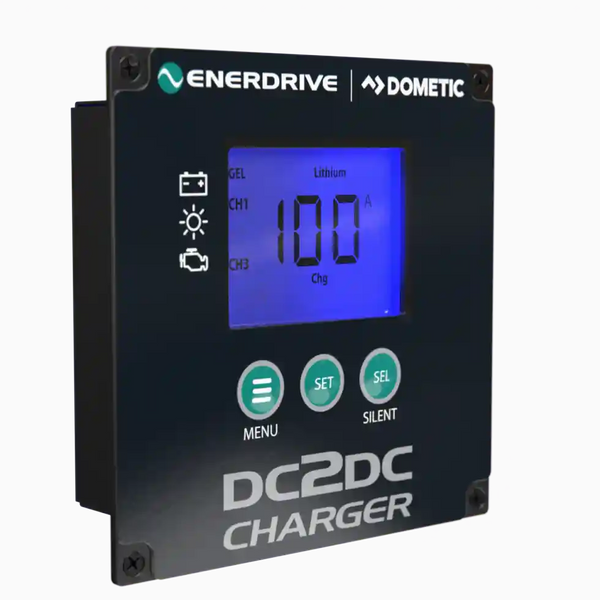

- Remote display: included backlit LCD display, 100 x 100mm, 0.4kg
- Remote display communication: CANBUS

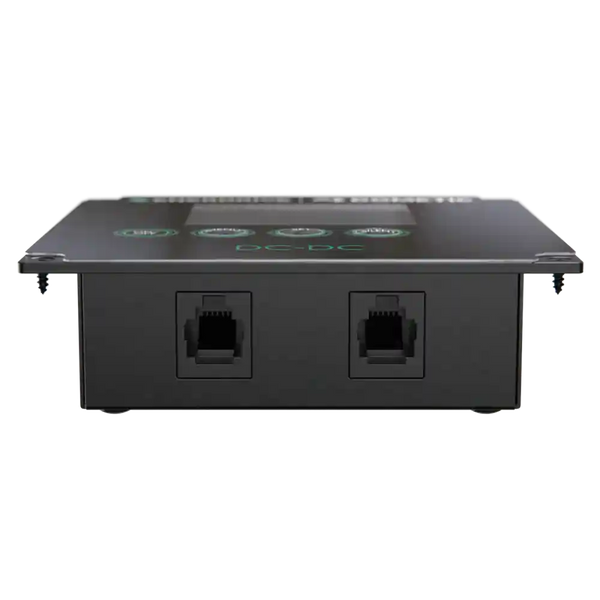

- Remote display connection: RJ12 port
- Battery temperature sensor port: RJ12 (optional sensor)
- Protections: reverse battery, short circuit, over charge, over temperature
- Dimensions (charger): 356 x 205 x 97mm
- Weight (charger): 3.23kg
- Weight (remote display): 0.4kg
- Warranty: 5 years (manufacturer conditions apply)
- Typical applications: large 4WDs, utes, trucks, caravans, motorhomes, and marine systems with suitable high-output alternators
- Recommended accessories: Enerdrive solar panels, Enerdrive or compatible lithium and AGM house batteries, Enerdrive battery temperature sensor, Enerdrive or compatible battery monitors
-
