EPL-200BT-12v-G2
B-TEC 200amp / 12v LiFePO4 Battery Gen2
| Normal Specification | EPL-200BT-12V G2 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 200Ah |
| Cycle Life (DOD – 80% under controlled conditions) | ≥ 2000 Cycles |
| Standard Charge Specification (Lithium profile charger required) | |
| Battery Charge Temperature | 0 ̴ 45°C |
| Normal Charge Voltage CV/CC* | 14.40 ̴ 14.60V |
| Standby (Float) Voltage | 13.50 ̴ 13.80V |
| Maximum Charge Current | 150A @ 25°C for 30mins |
| Recommended Charge Current for Maximum Life | ≤60A |
| Standard Discharge Specification | |
| Battery Discharge Temperature | -20 ̴ 60°C |
| Battery Output Voltage Range | 11.00 ̴ 14.60V |
| Maximum Discharge Current | 200A @ 25°C ±5°C for 30mins |
| Pulse Discharge Current | 450A for 1.0s |
| Discharge Cut-off Voltage | ≤11.20V |
| Circuit Protection | The battery is supplied with a LiFePO4 Battery Management System BMS that can monitor and optimize each single prismatic cell during charge and discharge, to protect the battery pack from overcharge, over discharge and short circuit. Overall, the BMS helps to ensure safe and accurate operation of the battery. |
| Over-Charge Protection | |
| Over-charge Protection Per Cell | 3.90V ± 0.03V |
| Over-charge Release Per Cell | 3.60V ± 0.05V |
| Over-charge Release Method | Discharge below release voltage |
| Over-Discharge Protection | |
| Over-discharge Protection Per Cell | 2.80V ± 0.05V |
| Over-discharge Release Per Cell | 3.20V ± 0.05V |
| Over-discharge Release Method | Apply Charge/Voltage ≥12.8V |
| Battery Manual Reset Button | Yes |
| Over Current Protection | |
| Discharge Over Current | 220A for 30s – 450A for 1s |
| Protection Reset Time | 5s Auto Release |
| Over Current Release Method | Disconnect Load |
| Over Temperature Protection | |
| Battery Discharge Over Temperature | Protection to 65°C ± 5°C |
| Release at 50°C ± 5°C | |
| Battery Charge Over Temperature | Protection to 55°C ± 5°C |
| Release at 45°C ± 5°C | |
| Short Circuit Protection | Auto release after 5s |
| Mechanical Characteristics | |
| Dimensions | 519mm |
| Width 165mm | 273mm |
| Height 215mm | 222mm |
| Weight | Approx 25.0 Kg |
| Storage Information | |
| Temperature and Humidity Range | ≤ 30 days -20°C ̴ 35°C, 45 ̴ 75% RH |
| ≥ 30 days -10°C ̴ 30°C, 45 ̴ 75% RH | |
| Self-discharge Rate | ≤ 3% Per Month |

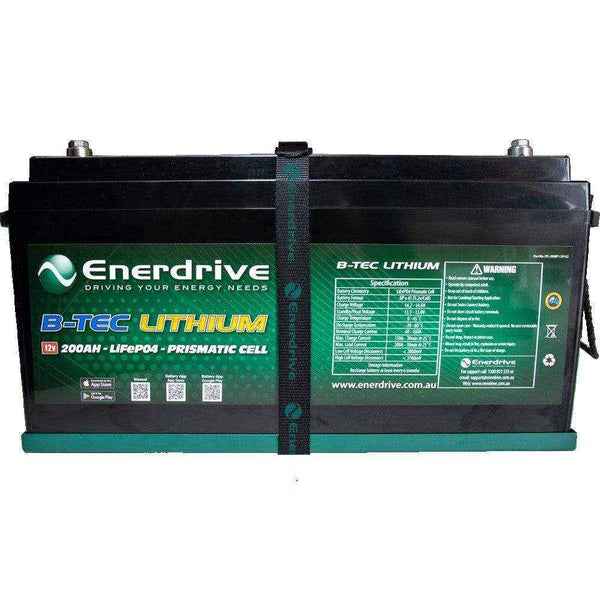

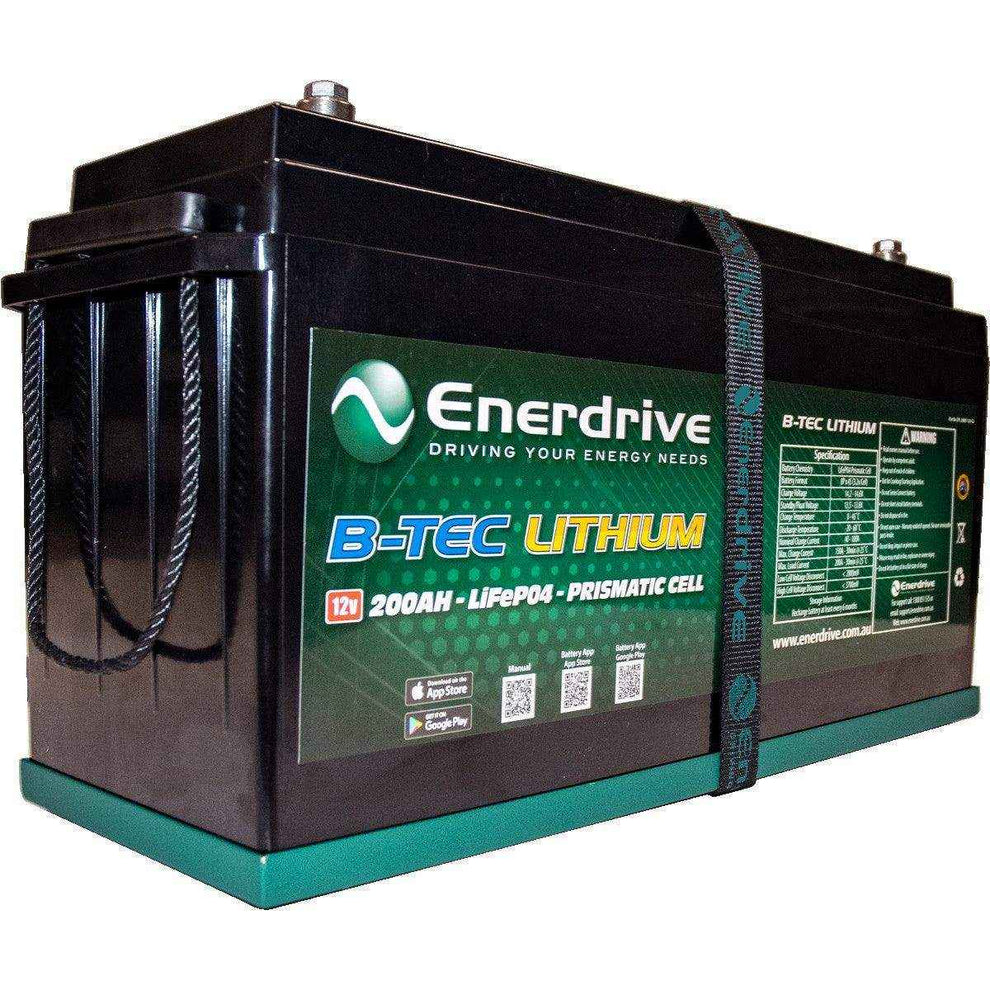

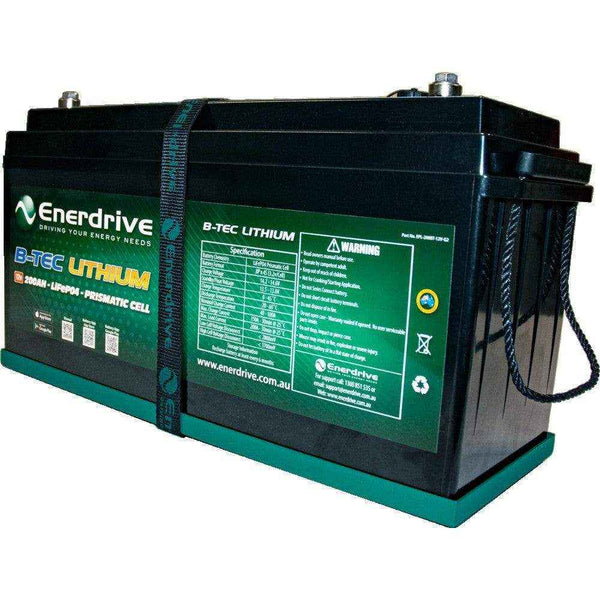

Enerdrive B-TEC LiFeP04 12v 200Ah G2 Lithium Battery
Available in 12v 200Ah capacity, the Enerdrive B-TEC G2 lithium battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity.

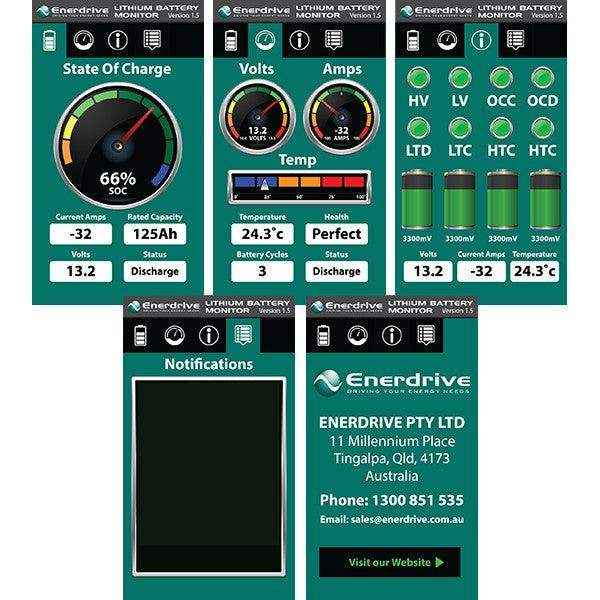

Smart Phone Monitoring System
The Enerdrive B-TEC G2 battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;
Battery Management System
The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature and short circuit. The BMS helps to ensure safe and accurate operation of the battery.
Size and Weight Savings
Lithium v AGM Capacities;
The Enerdrive B-TEC G2 battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.
The Enerdrive B-TEC G2 battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.
The New Generation 2 B-TEC
So, How does the New Enerdrive Generation 2 (G2) B-TEC 200Ah Lithium Battery measure up against it original predecessor? Let’s have a look.
Dimension Original Generation 2
Length 485mm 505mm
Width 170mm 172.5mm
Height 245mm 265mm
The increase in height allows for full 360° connection of the battery cables the make installation easier and more flexible. Also included for free is a metal battery tray and hold down strap to complete the installation process.

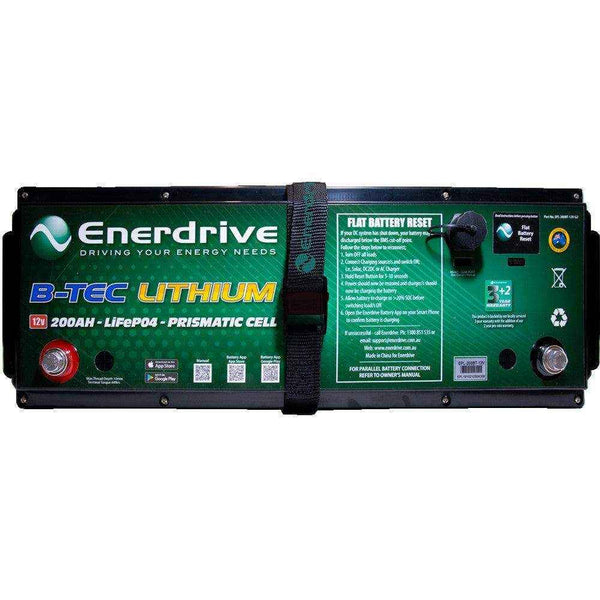

The G2 now incorporates a “Built-In Reset Button” making re-starting a flat battery a breeze. No longer do you need to apply a voltage to the battery terminals to wake up the battery. Press the button and within seconds, the battery will come back to life ready to accept a charge source to rejuvenate the battery.
The new G2 also includes a RS485 communications port located on the top of the battery. This port allows for integration onto other CanBus systems for data monitoring and recording.
The New Enerdrive Generation 2 (G2) B-TEC 200Ah Lithium Battery now comes with a 5 year warranty, giving you peace of mind that this product will keep you covered. With over 7 years of researching, designing and testing lithium batteries and the associated charging systems, Enerdrive are at the forefront of lithium battery systems in Australia. Enerdrive are the only Australian company that can supply a fully integrated self-branded energy system to suit your setup.
Please Note; The G2 battery is capable to be paralleled to a second G2 battery. For maximum performance and lifespan of your G2 battery, no more than 2 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single batteries BMS.
The G2 200Ah battery is able to accept a maximum inverter capacity of 2600W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery.
