Elecbrakes VM1 Portable Electric Brake Controller for Vehicle - Hard Wired Version

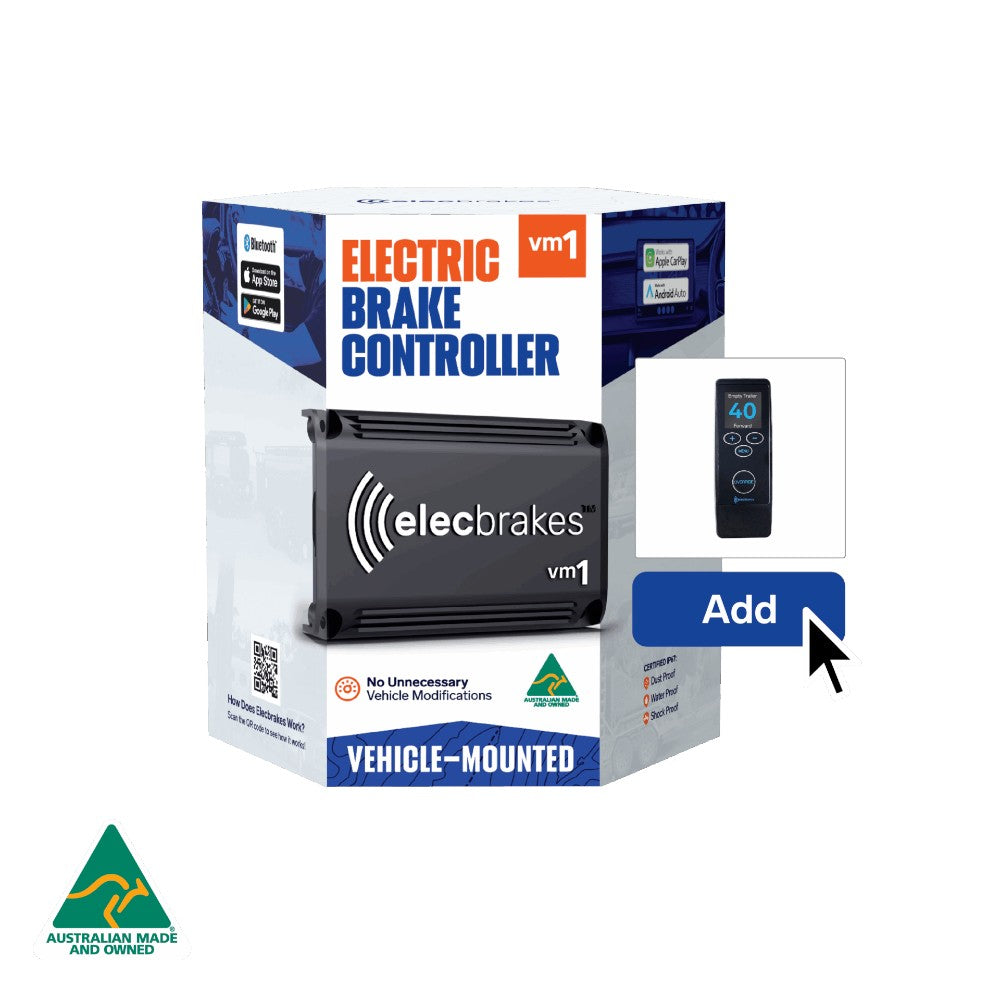

Elecbrakes VM1 Portable Electric Brake Controller – Hard Wired Version

Hard wired version designed for permanent connection into your vehicle’s electrical system, allowing towing of multiple trailers with one vehicle.

Elecbrakes Australian Designed and Manufactured

Overview

The Elecbrakes VM1 Portable Electric Brake Controller offers a vehicle-mounted solution for precise braking control. Suitable for tow vehicles towing caravans, trailers, horse floats, or boat trailers, it supports multiple braked axles and provides consistent brake response. The compact unit installs without dashboard modifications and is built for durable use in Australian conditions.

Features

• Permanent Wiring Installation: Connects directly to vehicle’s auxiliary 12V DC power and brake light circuit for reliable operation.
• Compatible with Multiple Trailers: Supports up to 3 braked axles (24A output), ideal for fleets or diverse towing needs.

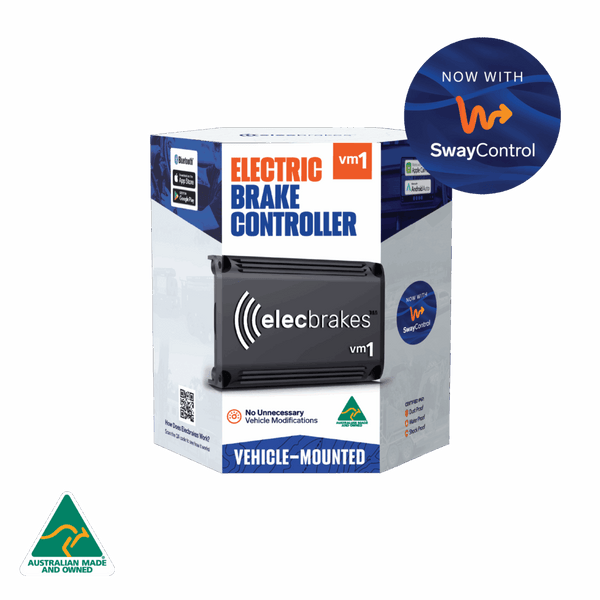

• Integrated SwayControl: Built-in sway control reduces trailer movement without additional hardware.
• Customisable Profiles: Save and switch between braking profiles for caravans, horse floats, boats, and work trailers.
• IP67 Rated: Waterproof, dustproof, and shockproof for harsh environments.
• 1.5 Metre Wired Leader Included: Pre-installed cable for ease of connection to vehicle wiring.
• Tap + Tow NFC Technology: Quick app pairing via NFC for monitoring and updates.
• Over The Air Updates: Firmware updates via the Elecbrakes app to maintain optimal performance.
• Smart Brake Sensor: Provides real-time brake power feedback for adaptive braking control.
• No Dashboard Modifications: Mount discreetly in boot, tray, or under vehicle with supplied screws.
• CarPlay & Android Auto Compatible: View braking diagnostics in real-time on vehicle display via Elecbrakes app.
• Optional remote control available.

Specifications

• Power Requirements: 25 Amp 12V DC or 12 Amp 24V DC auxiliary power circuit.
• Trigger: Brake light circuit activates brake controller.
• Maximum Output: 24 Amps total (suitable for up to 3 braked axles).
• Dimensions: Compact design for tight mounting spaces, includes integrated Deutsch plug.
• Operating Temperature: Suitable for Australian outdoor environments.

Installation Guidance

• Recommended mounting locations: Rear boot, rear quarter panel, ute tray, or vehicle underside.
• Installation includes 4x self-tapping screws (supplied).
• Tools recommended: Electric drill, 4.5mm drill bit, PH2 driver bit, marker pen, lubricant, and PPE.
• Ensure auxiliary power circuit can provide adequate amperage (10Vrms minimum output).
• Do not modify dashboard or vehicle cabin during installation.

Included in the Box

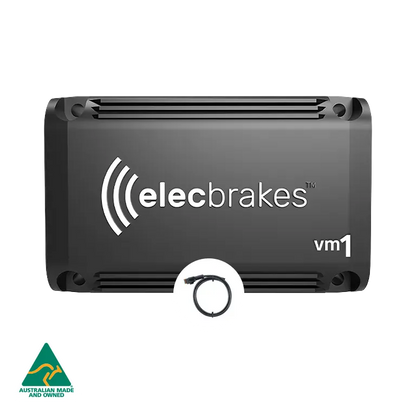

• VM1 Electric Brake Controller unit.
• 1.5 metre wired leader cable.

Additional Information

Download the Elecbrakes app from the App Store or Google Play to pair your controller, monitor braking performance, and update firmware. The app supports multiple device management, making it suitable for fleets.

Elecbrakes is an Australian owned and made product, designed for reliable and safe towing in Australia and New Zealand.

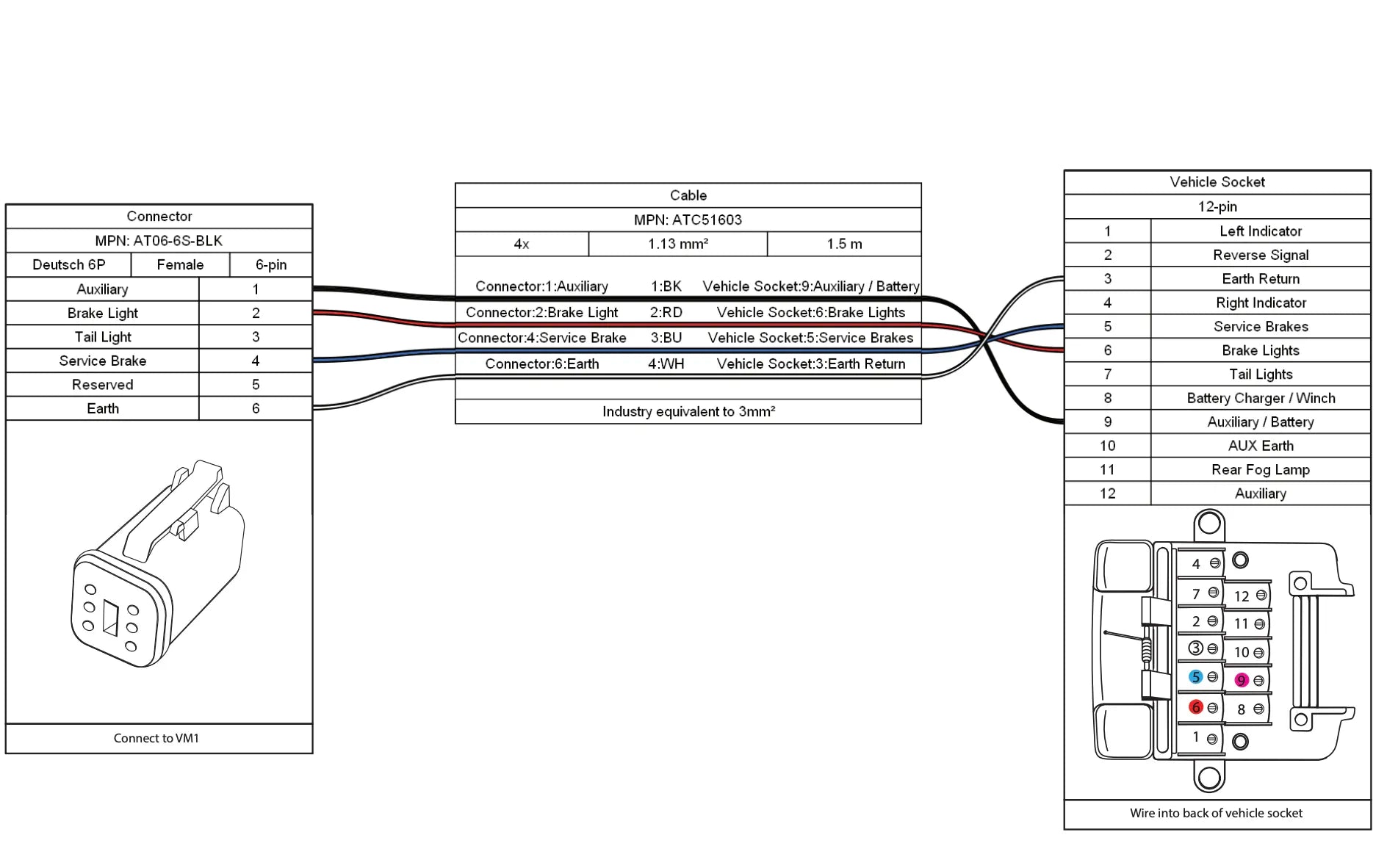

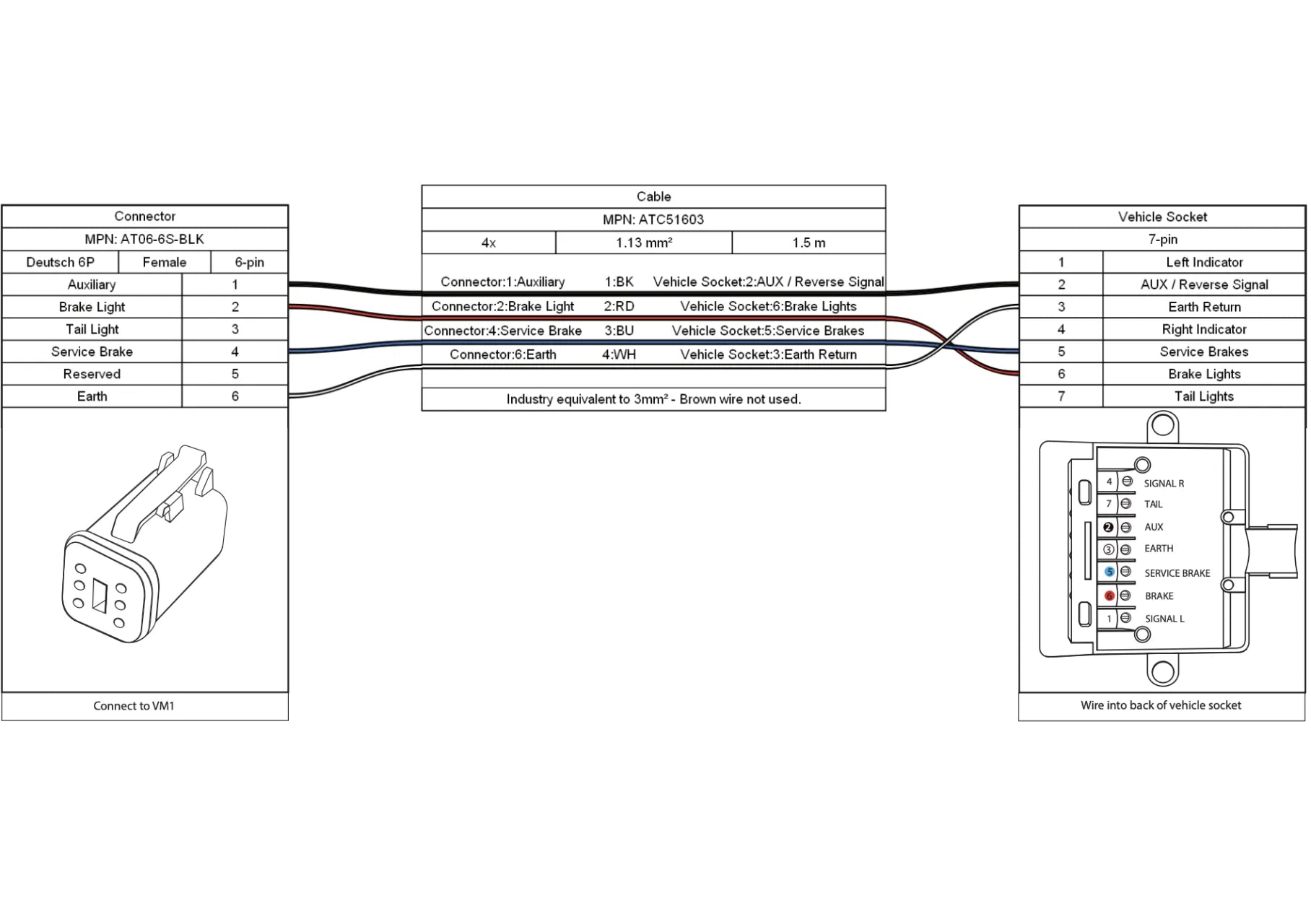

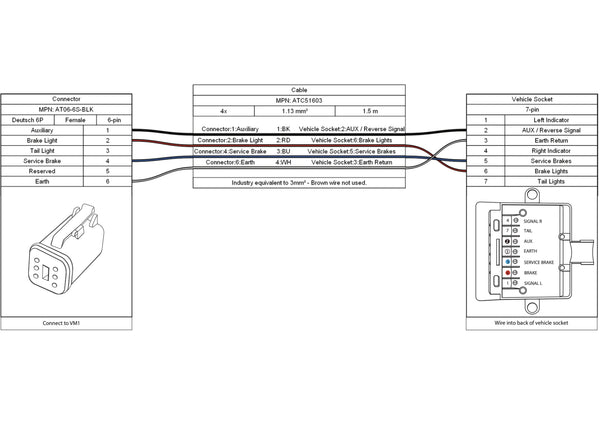

Please see images for 7 Pin and 12 Pin wiring diagrams
