ECP Battery Monitor suitable for Lithium Battery installs

Due to Lithium batteries having an internal BMS and outputting constant voltage you cant tell when they are getting low on power or how much capacity you will have left. Using a monitor like this ECP Battery Monitor will help advise you as to the state of charge of your battery and how much capacity you have left.

Suitable for battery banks up to 1000amp hours

Max current draw 100amp

Measurement functions

• voltage
• current
• power
• impedance
• internal resistance
• capacity
• dump energy
• accumulate energy consumption
• running time

Display interface is large-screen LCD, it can display eight parameters at the same time.

Power:

• Measuring range: 0-2000W, Starting measure power: 0.1W

Impedance:

• Measuring range: 0-1000Ω

Voltage:

• Measuring range: 0-200V.

Current:

• Measuring range: 0-10A. The starting test current: 10mA

Internal resistance:

• Measuring range: 0-999mΩ

Capacity:

• Measuring range: 0-1000AH

Dump energy：

• Dump energy is display via the battery symbol, totally 10 grids, every grid present 10% energy.

Accumulate energy consumption:

• Measuring range: 0～9999kWh
• Note: 1Wh=0.001kWh=0.001 Kilowatt

Running time:

• Measuring range: 0 ~ 999 hour (without load the time will not accumulate)

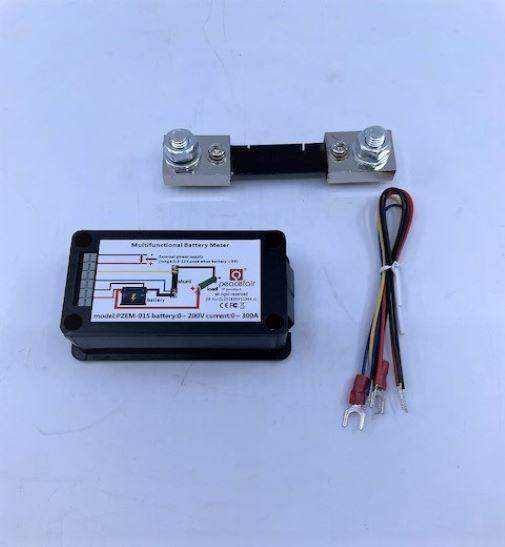

Package Includes

• 1 x DC Battery Tester
• 1 x 100A Shunt
• 1 x Cable Kit
• 1 x User Manual

The DC battery monitor meter is mainly used to measure the voltage, current, resistance, internal resistance, capacity, SOC, energy consumption and running time of various types of batteries, and display the measurement data through the LCD screen.
