ECP Battery Monitor for Lithium Battery Installations
Lithium batteries have an internal BMS and maintain a constant voltage output, making it difficult to gauge remaining power or capacity. The ECP Battery Monitor provides real-time information on your battery’s state of charge and remaining capacity.
Compatible with battery banks up to 1000Ah
Maximum current draw: 100A
Features

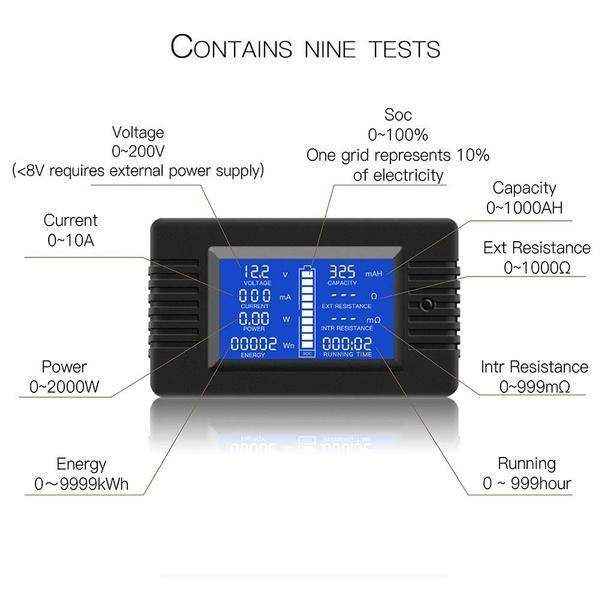

- Measures voltage, current, power, impedance, internal resistance, capacity, energy dump, accumulated energy consumption, and running time

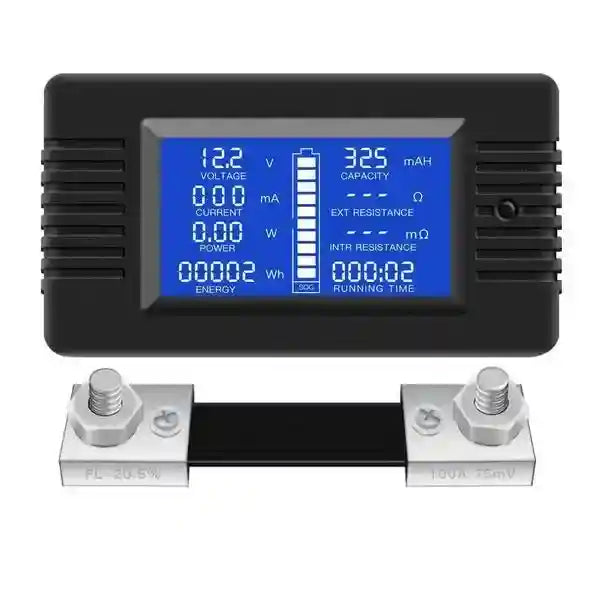

- Large LCD screen displays up to eight parameters simultaneously
- Power measurement: 0–2000W range, starting from 0.1W
- Impedance: 0–1000Ω
- Voltage measurement: 0–200V
- Current measurement: 0–10A, starting at 10mA
- Internal resistance: 0–999mΩ
- Capacity: 0–1000Ah
- Energy dump: Visualised on battery icon with 10 segments, each representing 10% energy
- Accumulated energy consumption: 0–9999kWh (1Wh = 0.001kWh)
- Running time: 0–999 hours (time counts only under load)

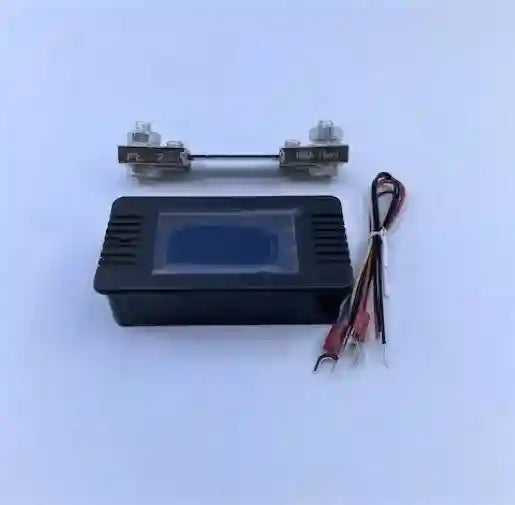

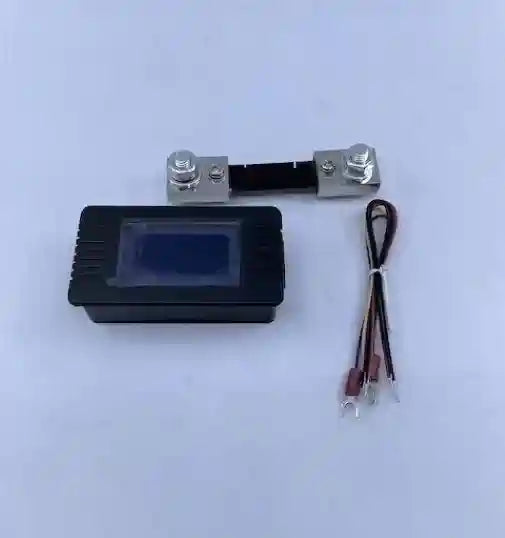

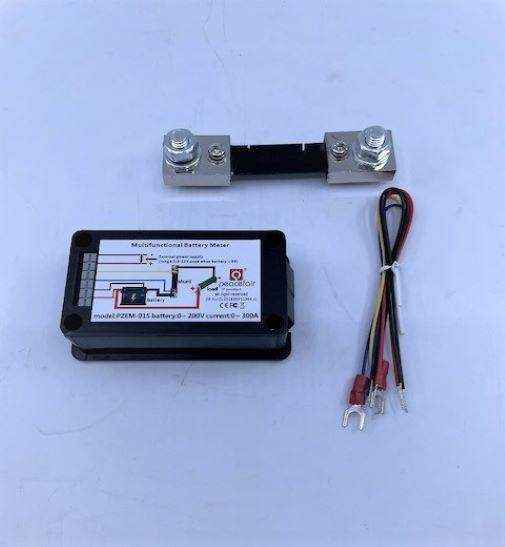

Package Includes
- 1 x DC Battery Tester
- 1 x 100A Shunt
- 1 x Cable Kit
- 1 x User Manual
The DC Battery Monitor measures and displays key battery parameters such as voltage, current, internal resistance, capacity, state of charge (SOC), energy usage, and operation time, providing accurate real-time data for lithium battery systems.
-
