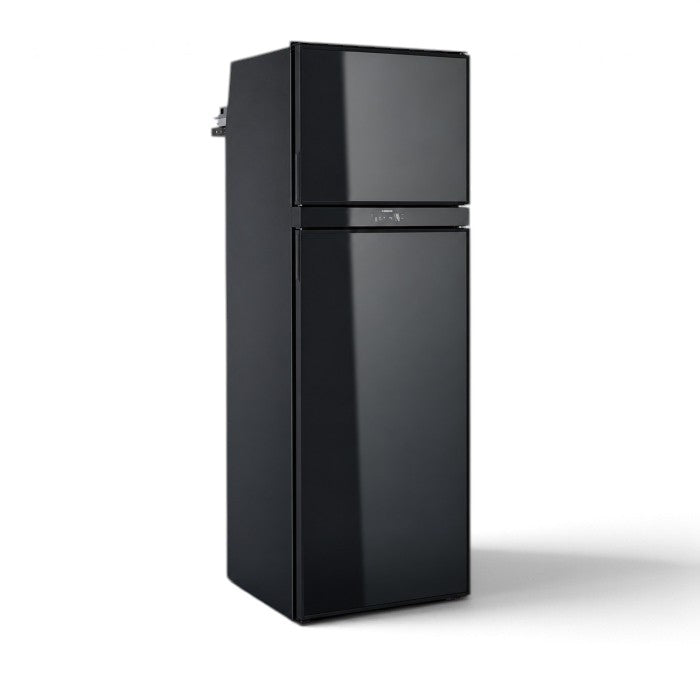

Dometic RUC6404X Core 180L Compressor DC Fridge 12V 24V
The Dometic RUC6404X Core 180L Compressor DC Fridge is a built-in two-door fridge and freezer unit designed to operate on 12V or 24V DC power. It features a 134-litre fridge and a 46-litre freezer, designed for use in caravans, motorhomes, and boats. The unit is controlled via an LED soft-touch panel offering Performance, Quiet, Eco, and Turbo modes. Fan-assisted circulation ensures consistent cooling after door openings. The fridge fits the same footprint as the Dometic RUA6408X model but with slightly less depth to accommodate venting requirements. Installation requires checking cavity and door clearances, and suitable DC power connections with circuit protection. Doors are reversible for installation but not bi-directional in daily use. Vent requirements vary depending on installation type. Ventilation grilles, wiring, and AC adaptors are sold separately.
Features
- Built-in compressor fridge/freezer with separate fridge (134L) and freezer (46L) compartments
- Reversible door hinges for left or right opening installation
- LED soft-touch control panel with Performance, Quiet, Eco, and Turbo cooling modes
- T-rated compressor designed for Australian ambient temperatures (16°C to 43°C)
- Fan-assisted air circulation for even temperature distribution and quick recovery after door opening
- Three fridge shelves, two door racks, and a crisper drawer with wire shelf
- Automatic interior LED lighting
- Low-voltage battery protection to prevent deep discharge
- Replaceable decor panels
- 3 year warranty included
Specifications
- Brand: Dometic
- Model: RUC6404X Core
- Capacity: 180 litres total (134L fridge, 46L freezer)
- Power input: 12V / 24V DC only
- Rated power: 88W
- Rated current: 7.3A @ 12V, 3.65A @ 24V
- Battery protection shutdown: 10.4V (12V), 22.8V (24V)
- Battery protection restart: 11.7V (12V), 24.2V (24V)
- Required DC fuse: 15A (12V), 7.5A (24V) at battery positive terminal
- DC cable sizing: Refer to installation manual based on voltage and cable length
- Dimensions (WxHxD): 550mm x 1447mm x 677mm
- External vent recess: 530-535mm wide x 1437-1442mm high x minimum 611mm deep
- Internal vent recess: 530-535mm wide x 1534-1539mm high x minimum 611mm deep
- Top vent recess: 530-535mm wide x 1471-1476mm high x minimum 611mm deep
- Rear air channel clearance: 10-25mm (air guide required if >25mm)
- Noise level: <45dB(A)
- Refrigerant: R600a
- Climate class: T (operates from 16°C to 43°C ambient temperature)
- Temperature range: Fridge 0°C to 8°C, Freezer -20°C to -10°C
- Weight: 46kg
Included in the Box
- Fridge unit
- Drain hose
- Bottom trim piece
- Sealing strip
- Installation and operating manual
Use the Dometic RUC6404X Core 180L Compressor DC Fridge for reliable DC-powered cooling in caravans, motorhomes, or boats. Ensure correct installation with proper ventilation and DC power setup including battery protection and circuit fuse. Doors can be installed to open left or right as needed.
-
