Dometic Midi Heki FL Skylight with LED & Crank Handle - 700x500mm

Dometic Midi Heki FL Skylight with LED & Crank Handle – 700 × 500 mm

The Dometic Midi Heki FL Skylight is a large 700 × 500 mm roof hatch designed to increase natural light and ventilation inside caravans and motorhomes. Featuring a double-glazed tinted dome, it helps reduce heat gain and glare while maintaining a comfortable interior environment.

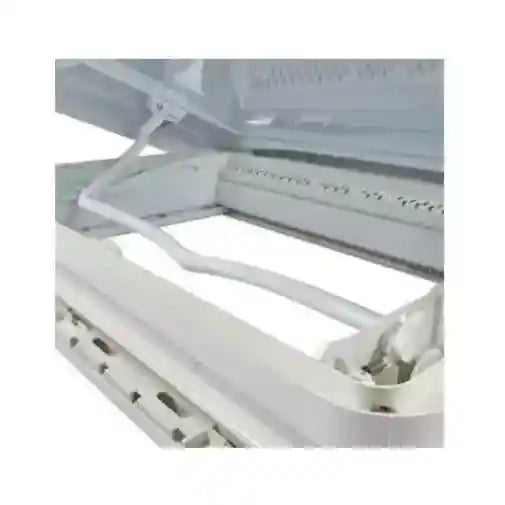

The skylight opens smoothly using a crank handle mechanism, allowing the dome to be positioned at any angle up to 60°. This adjustable opening provides controlled ventilation, while the integrated bad-weather position allows airflow even during light rain.

Inside, a block-out blind and insect screen slide independently, giving full control over light, privacy and ventilation. An integrated LED lighting system provides additional illumination inside the caravan.

The updated internal frame design offers a cleaner, more modern appearance with improved interior fabric. The latest model removes the integrated light switch and night light, instead requiring an external switch for the LED lighting system. This allows greater installation flexibility and a cleaner ceiling finish.

Note: Mounting kits are sold separately and must be selected to suit your roof thickness.

Features

• Large skylight designed to increase natural light and ventilation
• Tinted double-glazed dome helps reduce heat and glare
• Crank handle opening mechanism with adjustable positions up to 60°
• Bad-weather ventilation setting
• Integrated LED lighting system
• Independently sliding block-out blind and insect screen
• Modern updated internal frame design
• External switch required for lighting
• Mounting kits available separately for different roof thicknesses
• 2 year warranty

Specifications

• Model: 9620012819
• Brand: Dometic
• Replaces: DOM14931702
• Opening Size: 700 × 500 mm
• Internal Frame Dimensions: 785 × 575 mm
• Height (closed): 120 mm
• Frame Colour: White
• Ventilation Area: 150 cm² (permanent)
• Weight: 8.0 kg
• Shipping Weight: 8.65 kg
• Shipping Dimensions: 95 cm × 70 cm × 25 cm

Important Note

• Mounting kits are sold separately and are available for roof thicknesses from 25 mm to 60 mm.
