Dometic Midi Heki FL Skylight with LED and Crank Handle – 700 x 500 mm
Former part number DOM14931702 MIDI HEKI CRANK LED WHT EDGE – now 9620012819

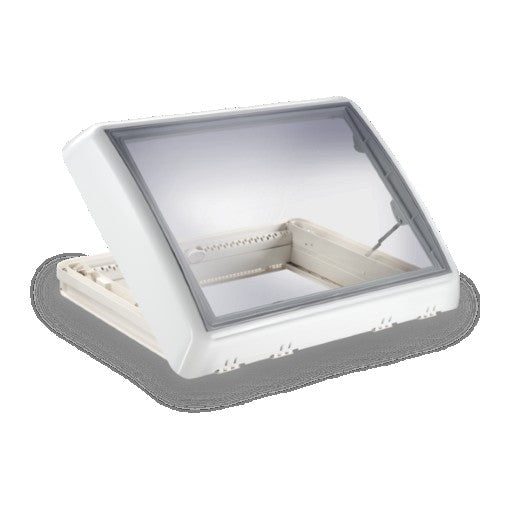

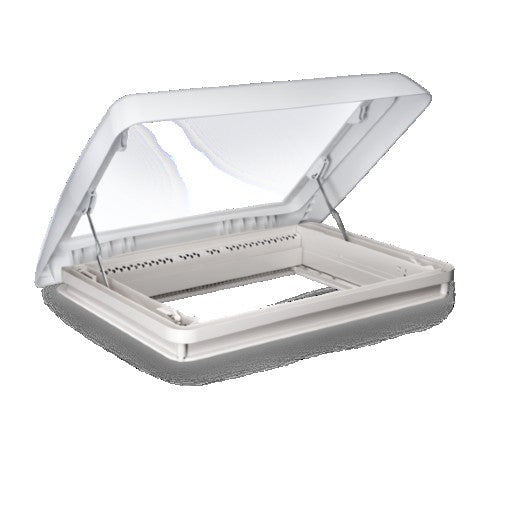

The Dometic Midi Heki FL Skylight is a 700 x 500 mm roof hatch designed to provide natural light and ventilation for caravans and motorhomes. It features a double-glazed tinted dome that reduces heat and glare while maintaining interior comfort.

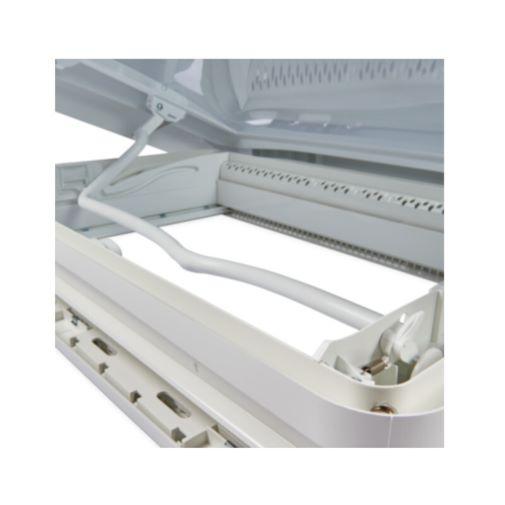

The skylight opens using a crank handle that allows adjustment up to 60°. It includes a bad-weather ventilation setting for airflow during light rain.

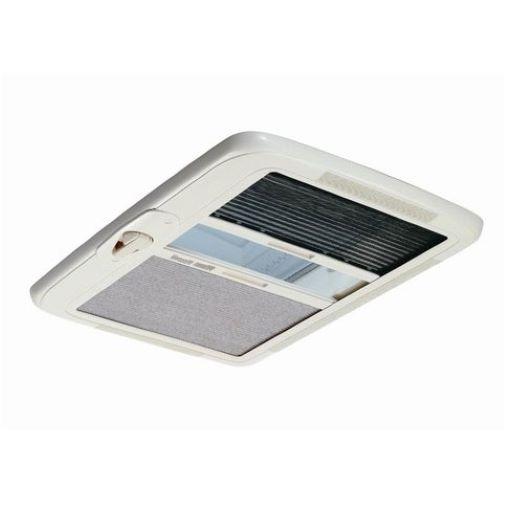

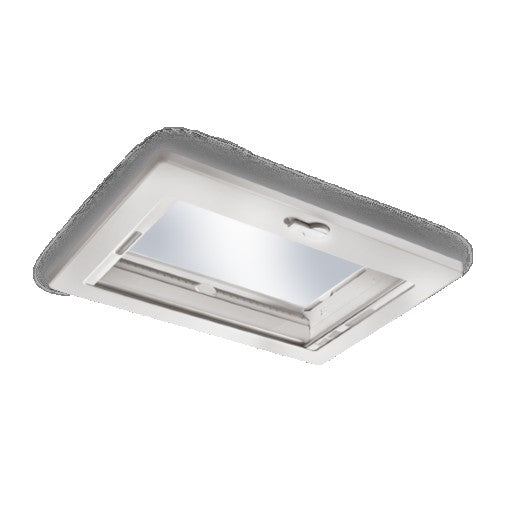

Inside, the skylight has an independently sliding block-out blind and insect screen to control light, privacy, and airflow. An integrated LED lighting system provides interior illumination.
The updated internal frame has a modern appearance with improved fabric. The LED lights require an external switch for operation, offering installation flexibility and a cleaner ceiling finish.
Note: Mounting kits are sold separately to suit roof thickness.
Features
- Large roof hatch for natural light and ventilation
- Tinted double-glazed dome reduces heat and glare
- Crank handle opening mechanism with up to 60° adjustment
- Bad-weather ventilation position for airflow in rain

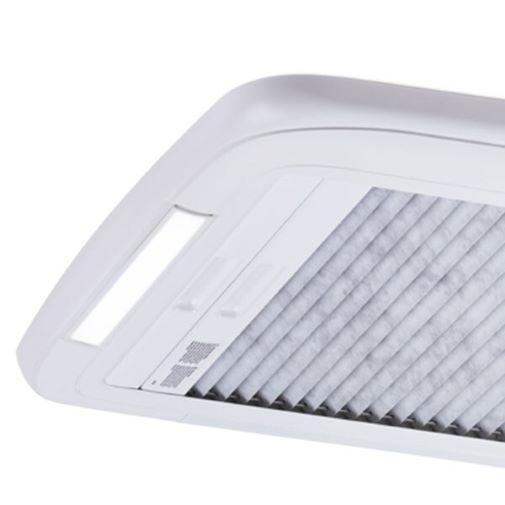

- Integrated LED lighting system
- Sliding block-out blind and insect screen operate independently
- Updated internal frame with improved fabric finish
- External switch required for LED lights
- Mounting kits available separately for different roof thicknesses
- 2 year warranty
Specifications
- Model: 9620012819
- Brand: Dometic
- Replaces: DOM14931702
- Opening Size: 700 x 500 mm
- Internal Frame Dimensions: 785 x 575 mm
- Height (closed): 120 mm
- Frame Colour: White
- Permanent Ventilation Area: 150 cm²
- Weight: 8.0 kg
- Shipping Weight: 8.65 kg
- Shipping Dimensions: 95 x 70 x 25 cm
Important Note
- Mounting kits sold separately. Suitable for roof thickness 25 mm to 60 mm.
