Dometic CAM 45 Perfectview Camera to suit Perfectview Reversing System

Dometic CAM 45 Perfectview Camera to suit Perfectview Reversing System

The Dometic PerfectView CAM 45 is a colour reversing camera with a 120° diagonal viewing angle, designed to assist with safer reversing and lane changes for larger vehicles. It operates on a 12V system and includes a 15m cable for easy installation.

Features

• 120° diagonal viewing angle for wide rear visibility
• Infrared LEDs for night vision support
• Temperature-controlled heater ensures reliable operation in cold climates
• Integrated microphone to capture sound behind the vehicle
• Normal and mirrored image display options
• Compact design with almost invisible cable routing
• Rated IP69K for high water and dust protection
• Compatible with vehicle navigation systems
• Brightness adjustment available

Specifications

• Model number: CAM45
• Colour: Silver
• Video standard: PAL
• Resolution: 250,000 pixels
• Operating voltage: 12 V DC
• Operating temperature: -20°C to 70°C
• Horizontal viewing angle: 80°
• Vertical viewing angle: 65°

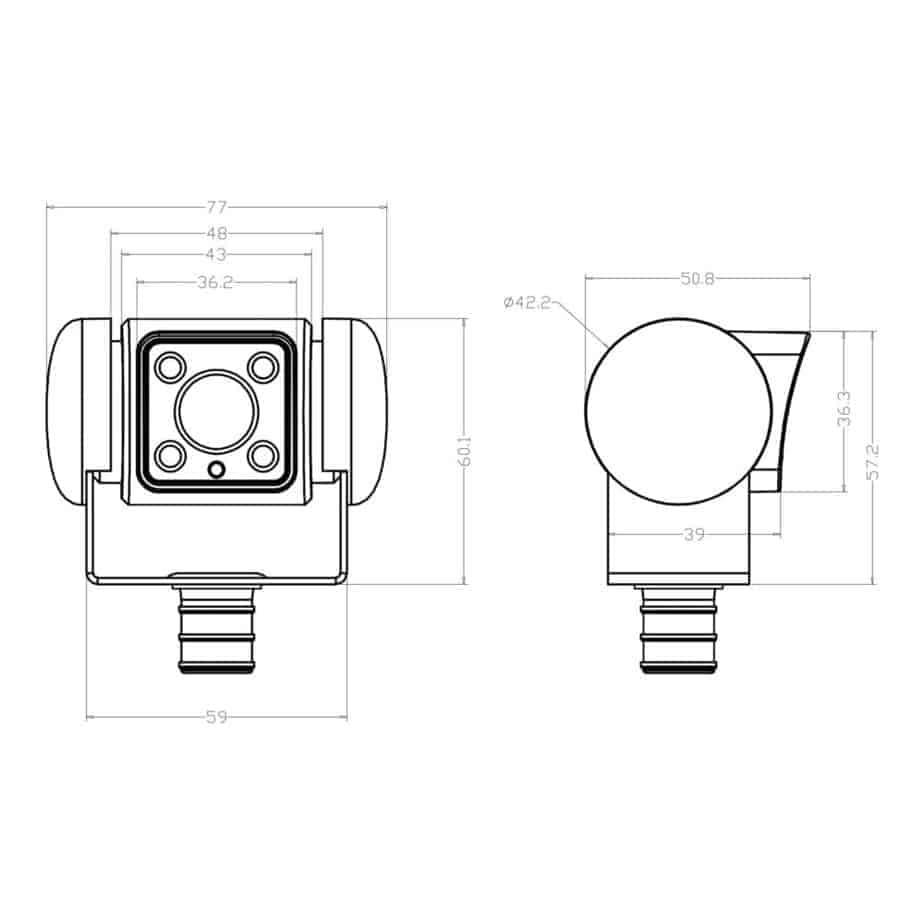

• Dimensions (W x H x D): 80 mm x 68 mm x 46 mm
• Weight: 0.20 kg
• Vibration resistance: 10 g

Installation and Use

The system comes with a 15-metre system cable, installation materials, and manual. The camera integrates easily into existing multimedia displays and supports nearly invisible cable routing for discreet mounting. The heater maintains camera performance in cold weather, while infrared LEDs provide clear night vision. Users can switch between normal and mirrored views for better reversing visibility.

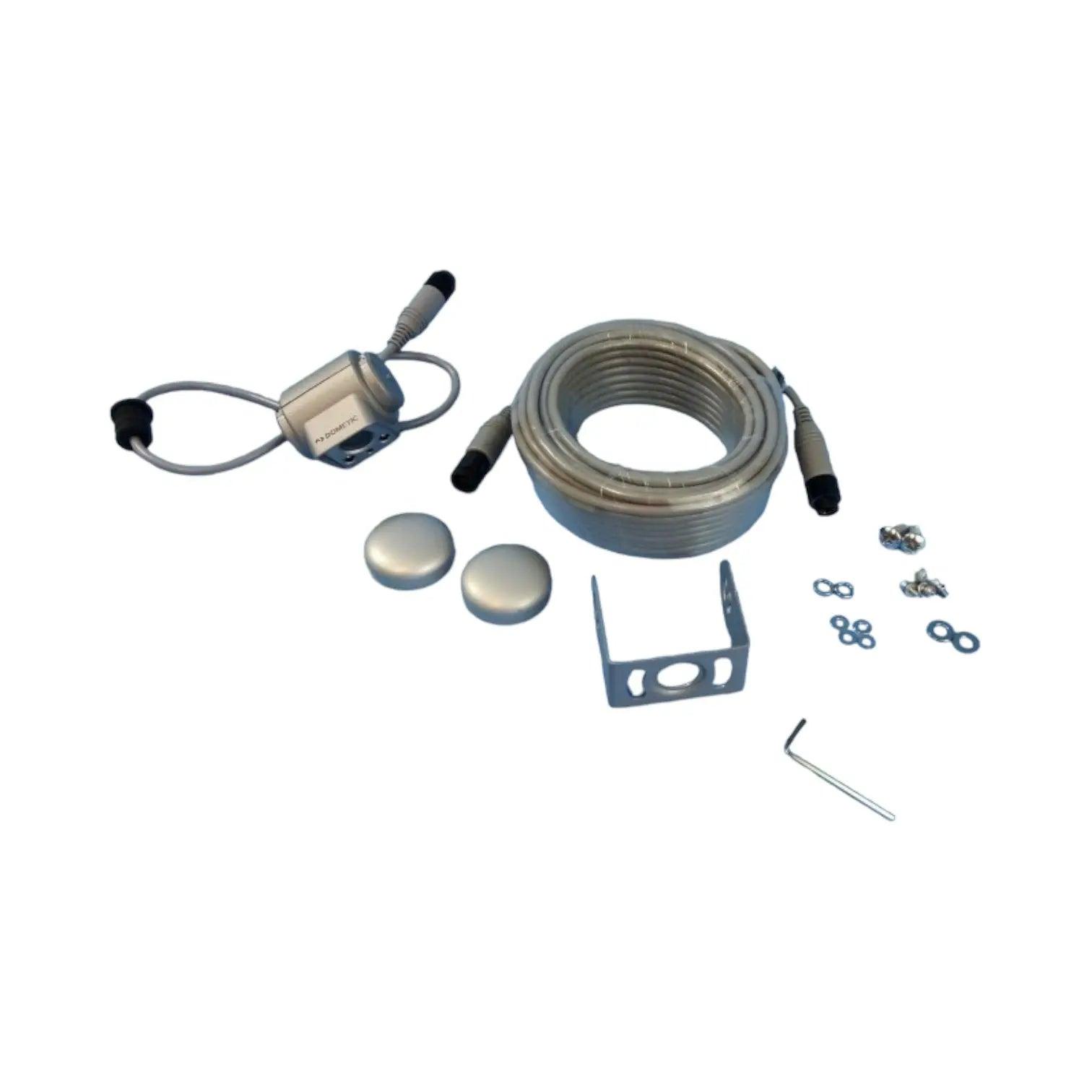

Package Includes

• Dometic CAM 45 colour camera
• 15m system cable
• Installation materials
• User manual
