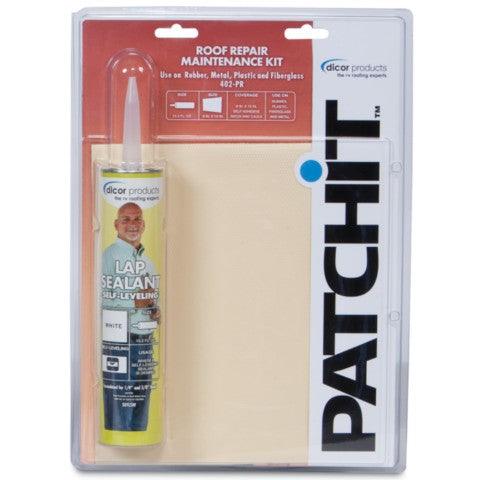

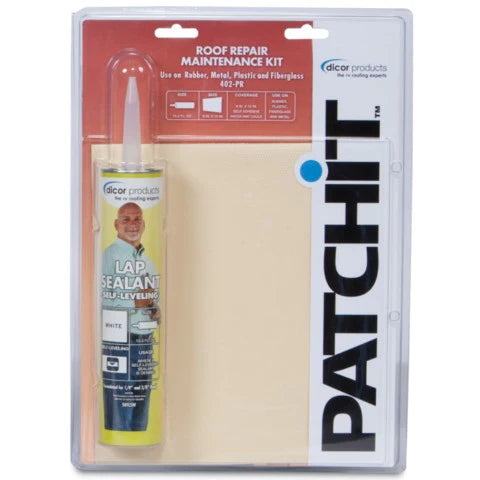

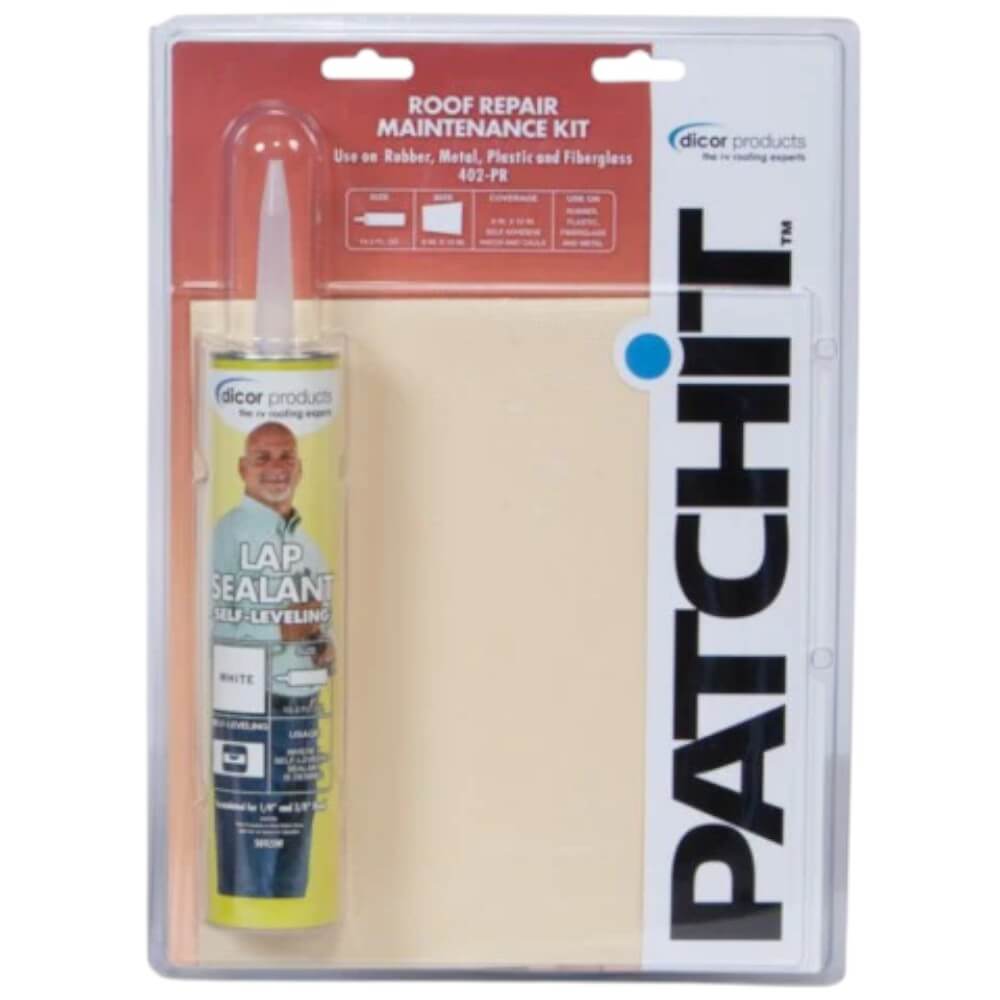

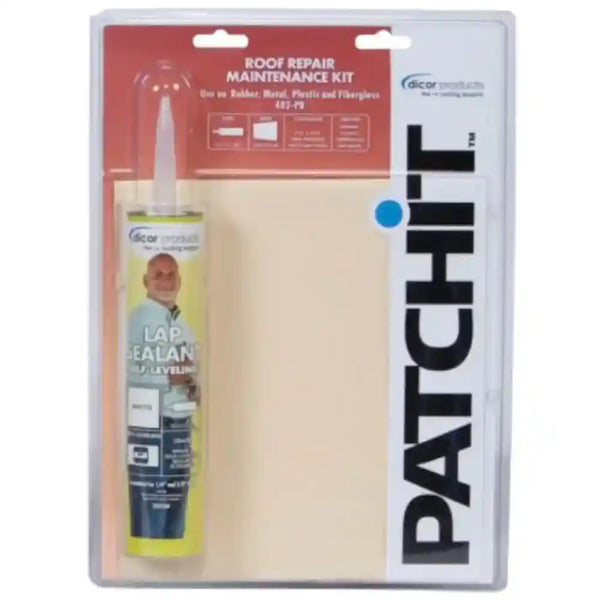

Dicor Roof Repair Kit for Motohomes with Rubber Membrane Roofs

DICOR ROOF REPAIR KIT. 402-PR/0713805

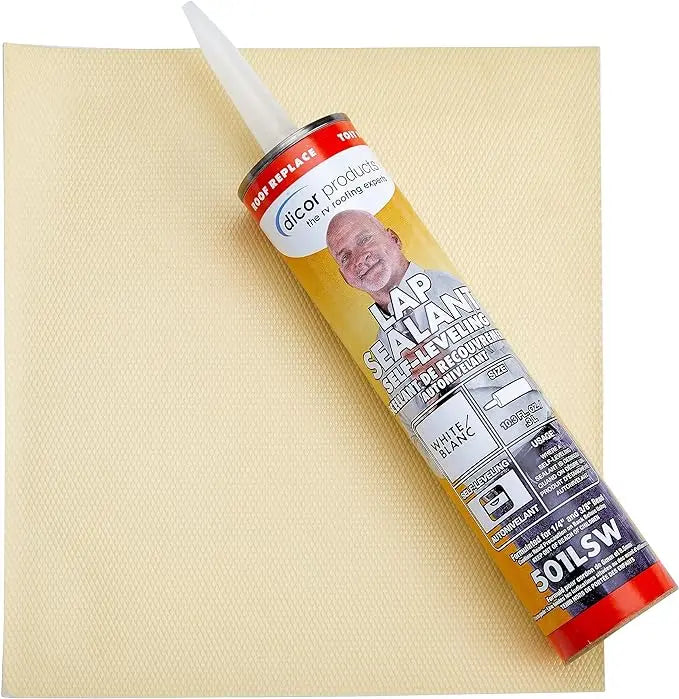

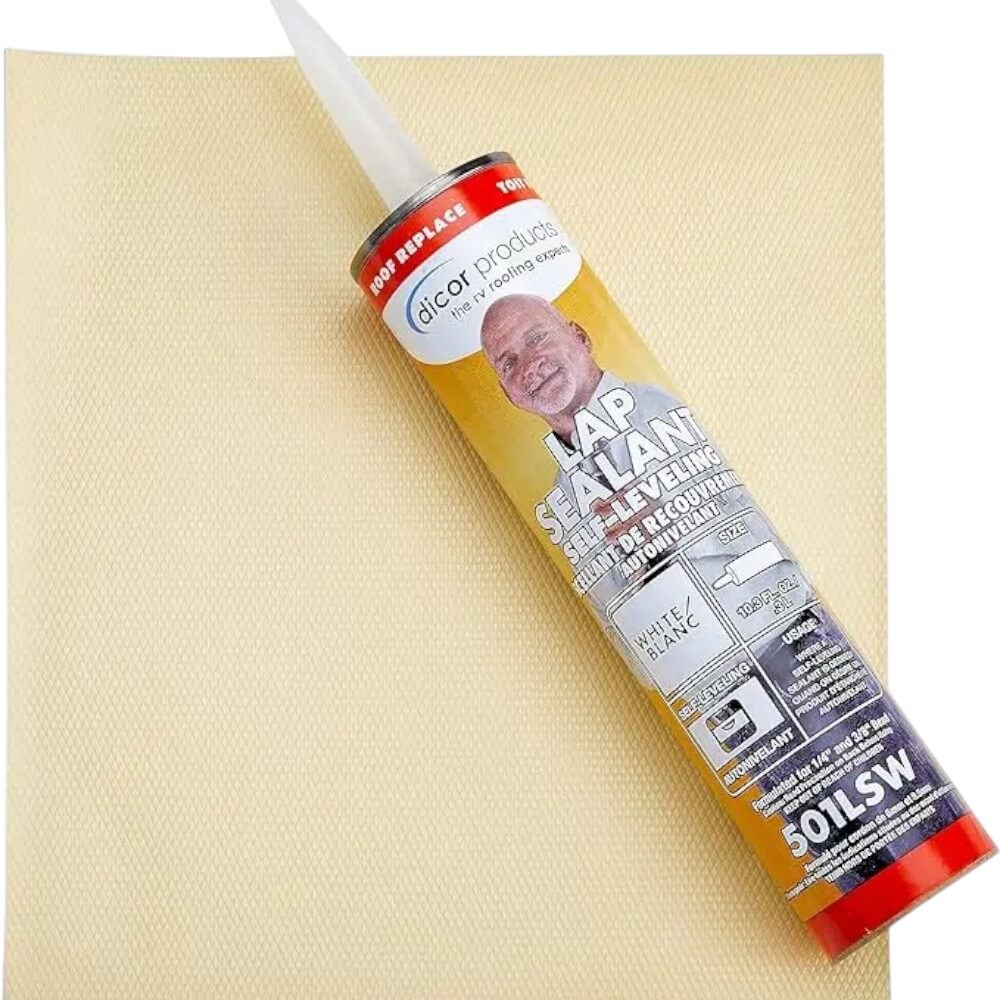

For repair of punctures, tears and cuts that can occur in Motorhome roofs. The kit has a 9″ x 10″ EPDM Self adhesive rubber patch and a tube of lap sealant. Can be used to patch EPDM rubber, TPO plastic, PVC, metal and fiberglass roofing.

Features:

• Superior adhesion.
• Easy application
• Suits a wide range of temperatures.
• Remains flexible.
• Self leveling sealant.

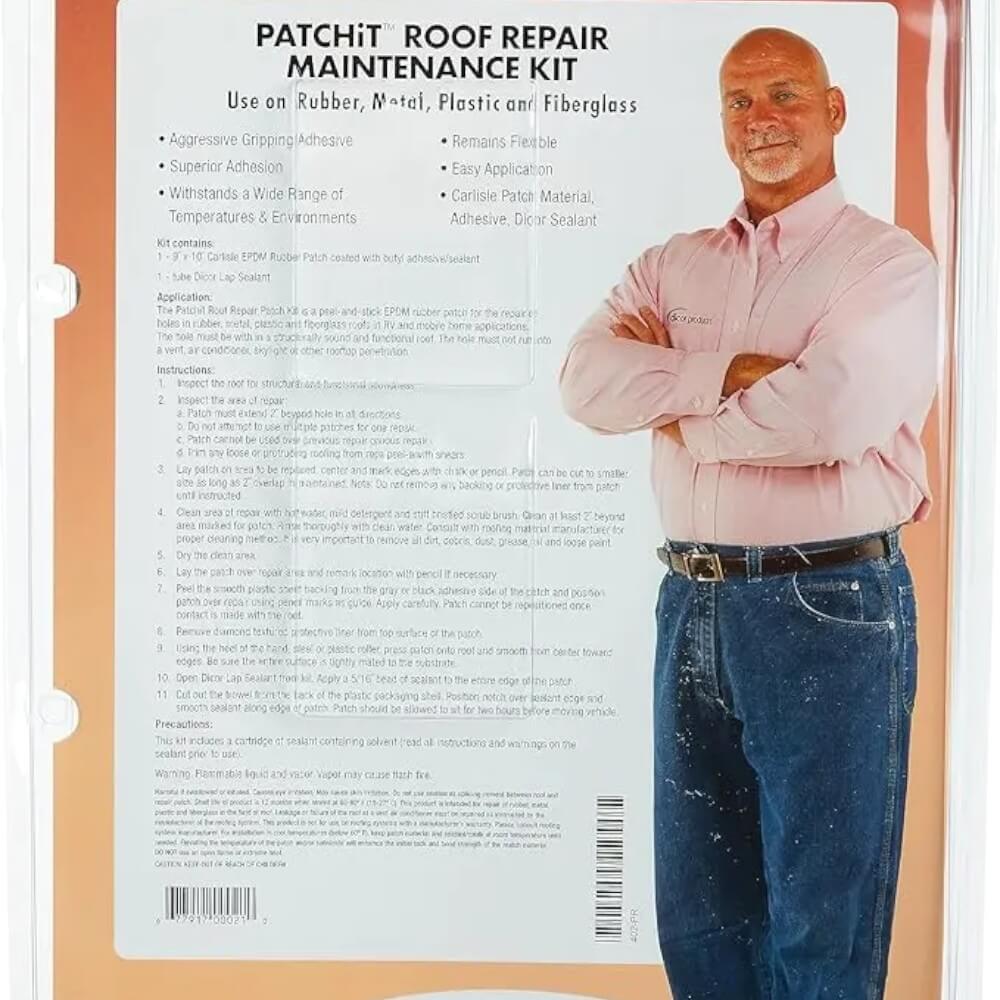

Instructions:

1. Inspect the roof for structural and functional soundness.
2. Patch must extend 50mm beyond hole in all directions.
3. Do not attempt to use multiple patches for one repair.
4. Patch cannot be used over previous repair or coating.
5. Trim any loose or protruding roofing from repair area with shears.
6. Lay patch on area to be repaired, center and mark edges with chalk or pencil. Patch can be cut to smaller size as long as 50mm overlap is maintained. Do not remove any backing or protective liner from patch until ready to use.
7. Clean area of repair with hot water, mild detergent and stiff bristled scrub brush. Clean at least 50mm beyond area marked for patch. Rinse thoroughly with clean water. Consult with roofing material manufacturer for proper cleaning method. It is very important to remove all dirt, debris, dust, grease, oil and loose paint.
8. Dry the clean area.
9. Lay the patch over repair area and remark location with pencil if necessary.

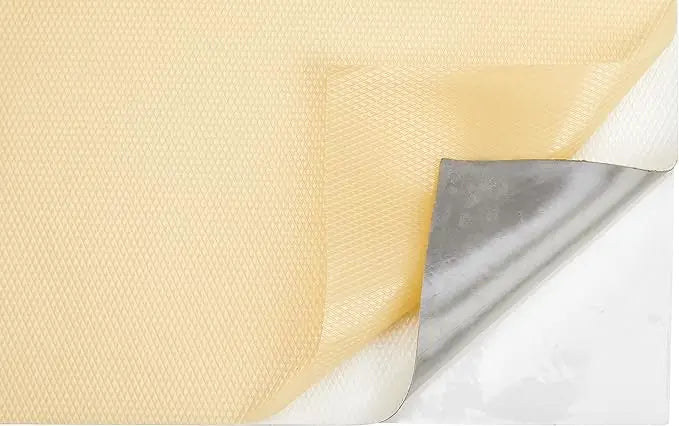

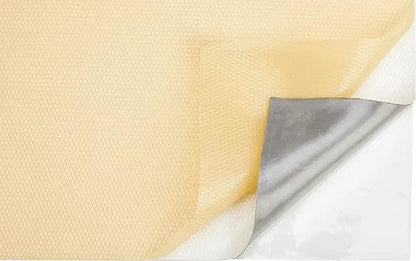

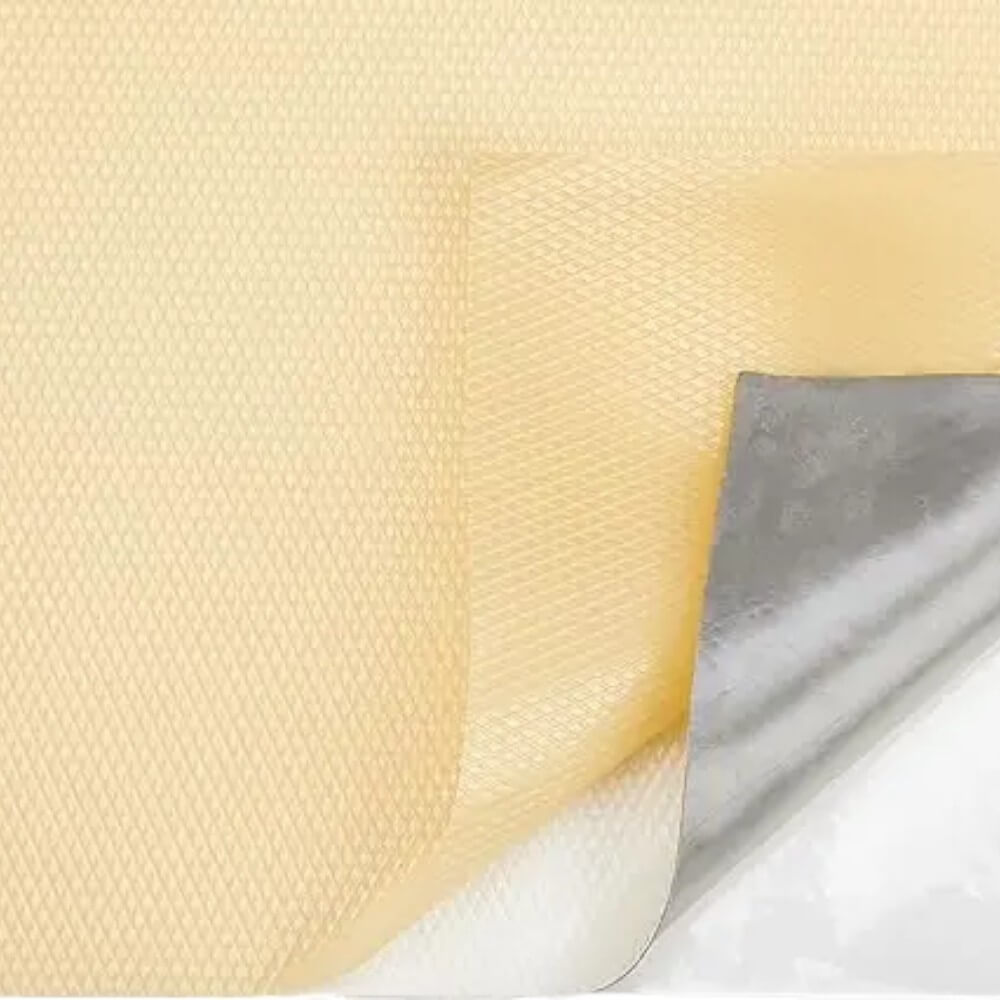

10. Peel the smooth plastic sheet backing from the gray or black adhesive side of the patch and position patch over repair using pencil marks as guide. Apply carefully. Patch cannot be repositioned once contact is made with the roof.
11. Remove diamond textured protective liner from top surface of the patch.
12. Using the heel of the hand, steel or plastic roller, press patch onto roof and smooth from center toward edges. Be sure the entire surface is tightly mated to the substrate.

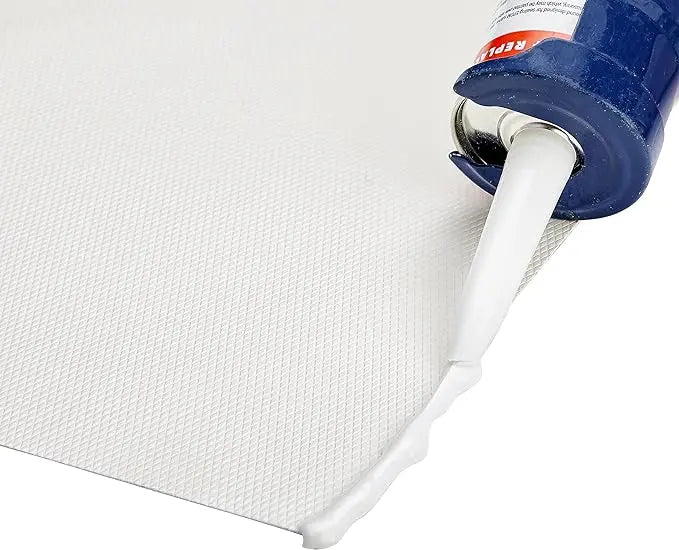

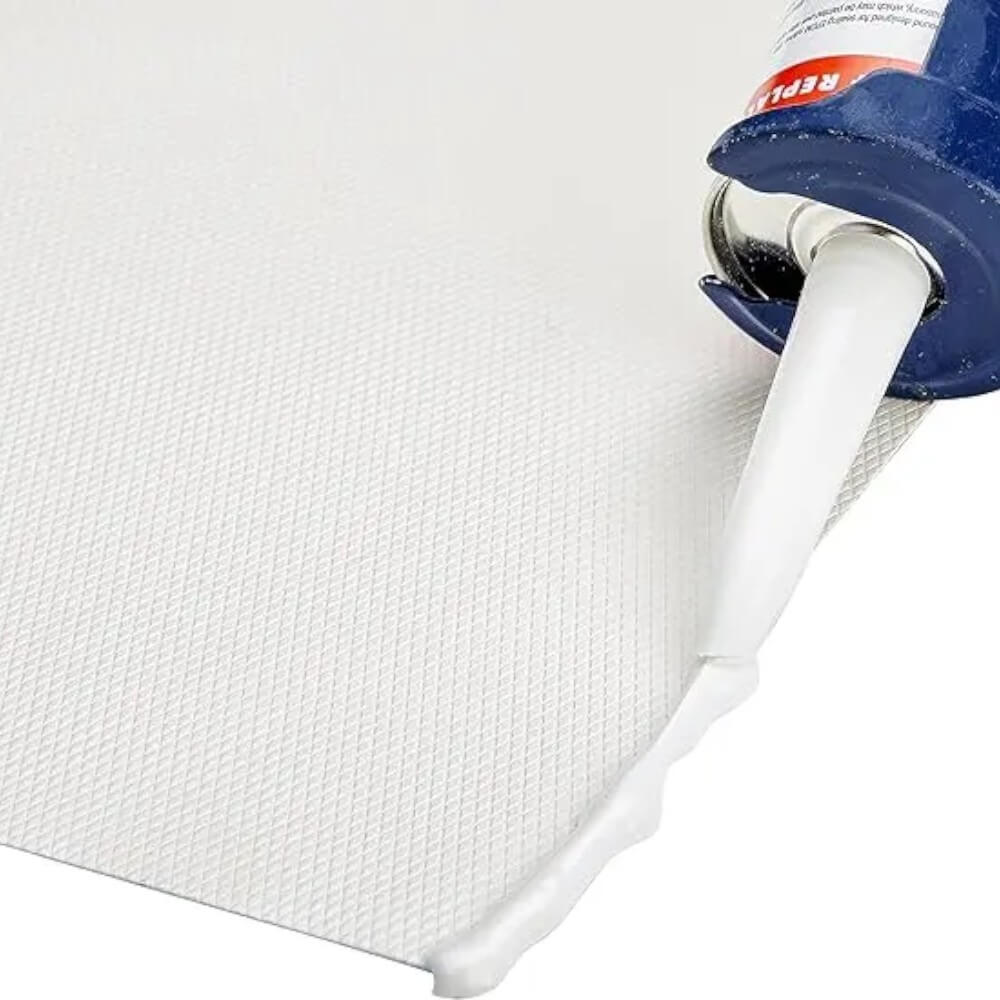

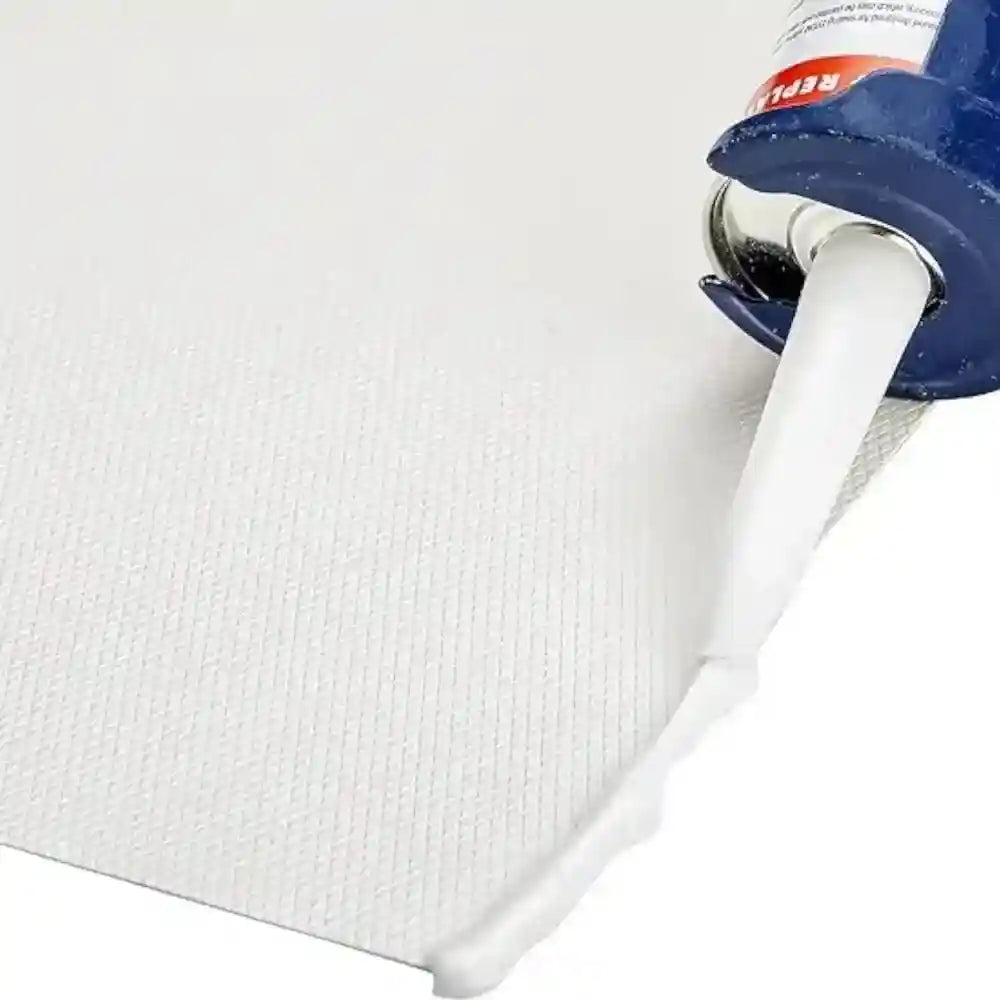

13. Open Dicor Lap Sealant from kit. Apply a 6mm bead of sealant to the entire edge of the patch.
14. Cut out the trowel from the back of the plastic packaging shell. Position notch over sealant edge and smooth sealant along the edge of patch. Patch should be allowed to sit for two hours before moving vehicle.
