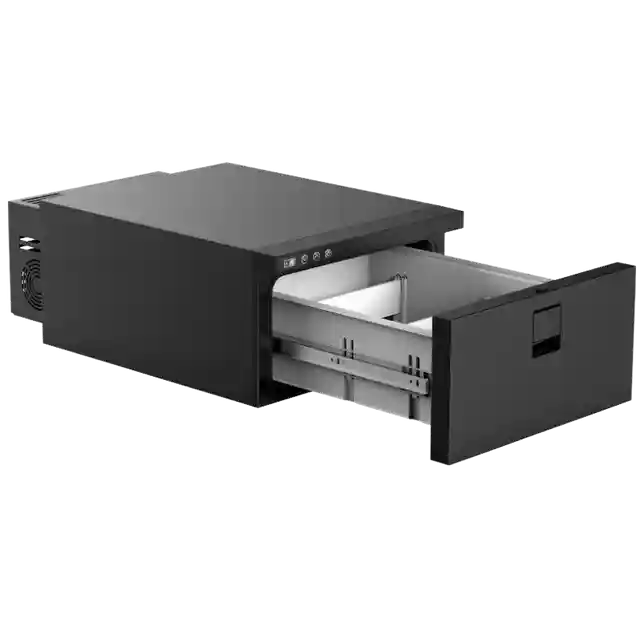

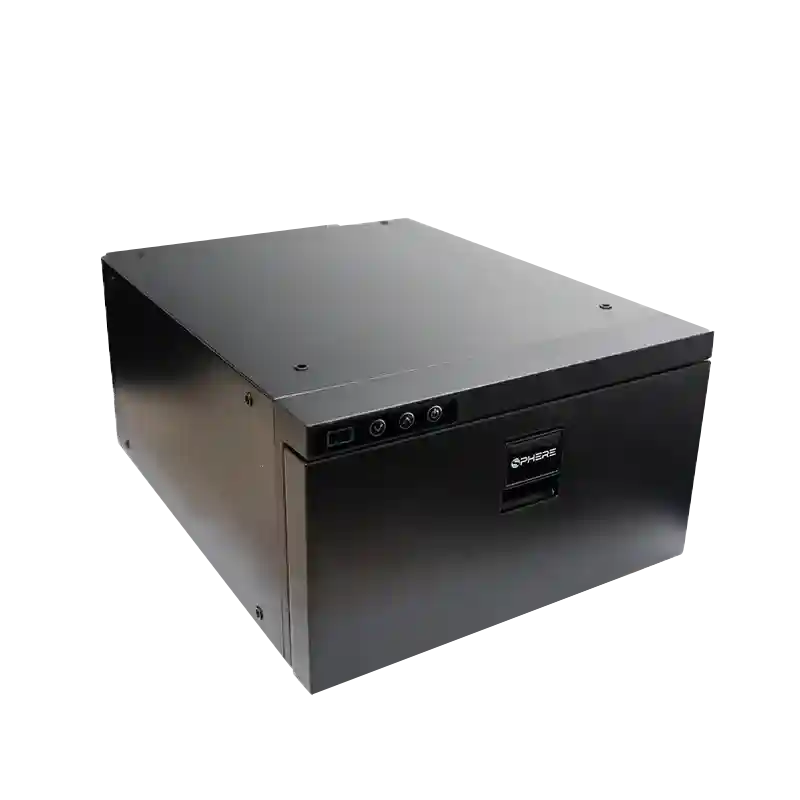

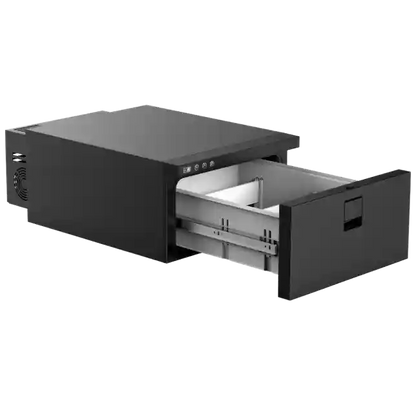

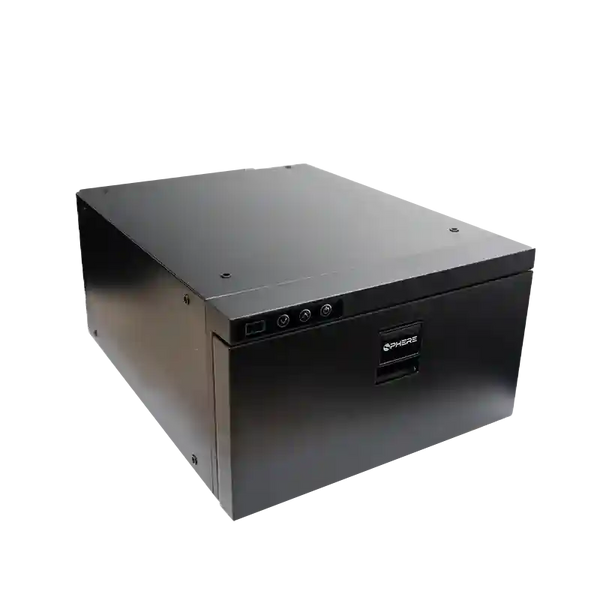

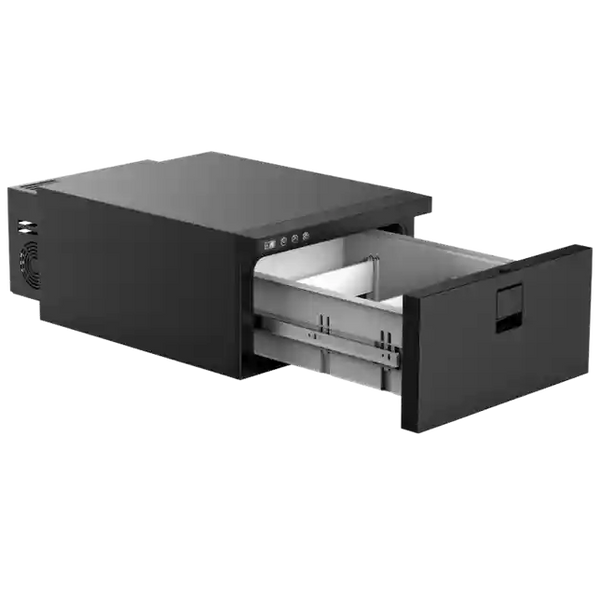

Sphere Roam DF30 Draw Fridge - 30 Litre

Sphere Roam DF30 Drawer Fridge Freezer - 30 Litre - 12/24V

The Sphere Roam DF30 Drawer Fridge Freezer - 30 Litre - 12/24V is a compact slide-out fridge designed for caravans, canopies, and under-bench installation where upright fridges are unsuitable. It operates as a fridge or freezer, powered by 12 V or 24 V DC systems, equipped with a SECOP compressor for reliable temperature control. The unit has an average current draw of approximately 1.7 A during typical use.

This fridge works efficiently up to 30° out of level and switches temperature modes from 10°C down to -10°C. It includes removable storage dividers and a digital thermostat with an LED display for easy temperature adjustment. The fridge also features adjustable low voltage protection to extend battery life.

With a 30 litre capacity, it fits up to 30 standard 375 ml cans. Installation supports 12 V and 24 V DC power with an Anderson plug connection, suitable for spaces requiring ventilation.

Features

• Slide-out drawer for simple front access
• Functions as fridge or freezer from -10°C to +10°C
• SECOP compressor for temperature stability and energy efficiency
• Average current draw around 1.7 A
• Operates in ambient temperatures up to 55°C
• Works when installed up to 30° out of level

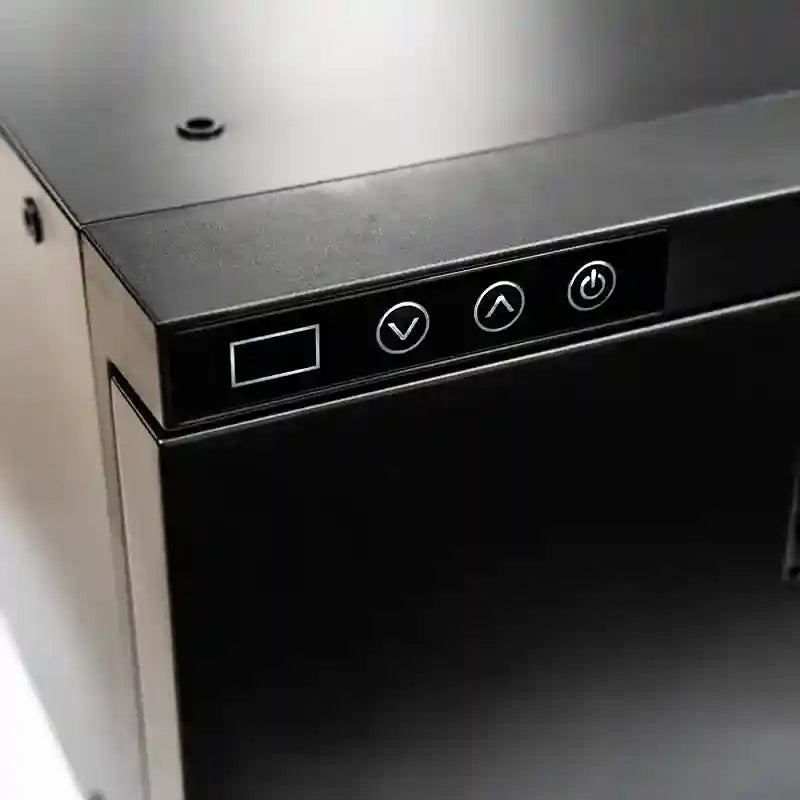

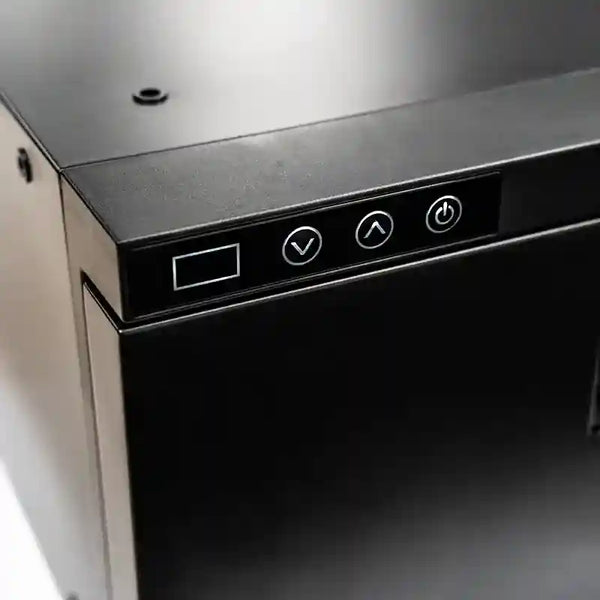

• Digital thermostat with LED display for precise temperature control
• Adjustable low voltage protection to safeguard battery
• Removable dividers for flexible storage organisation

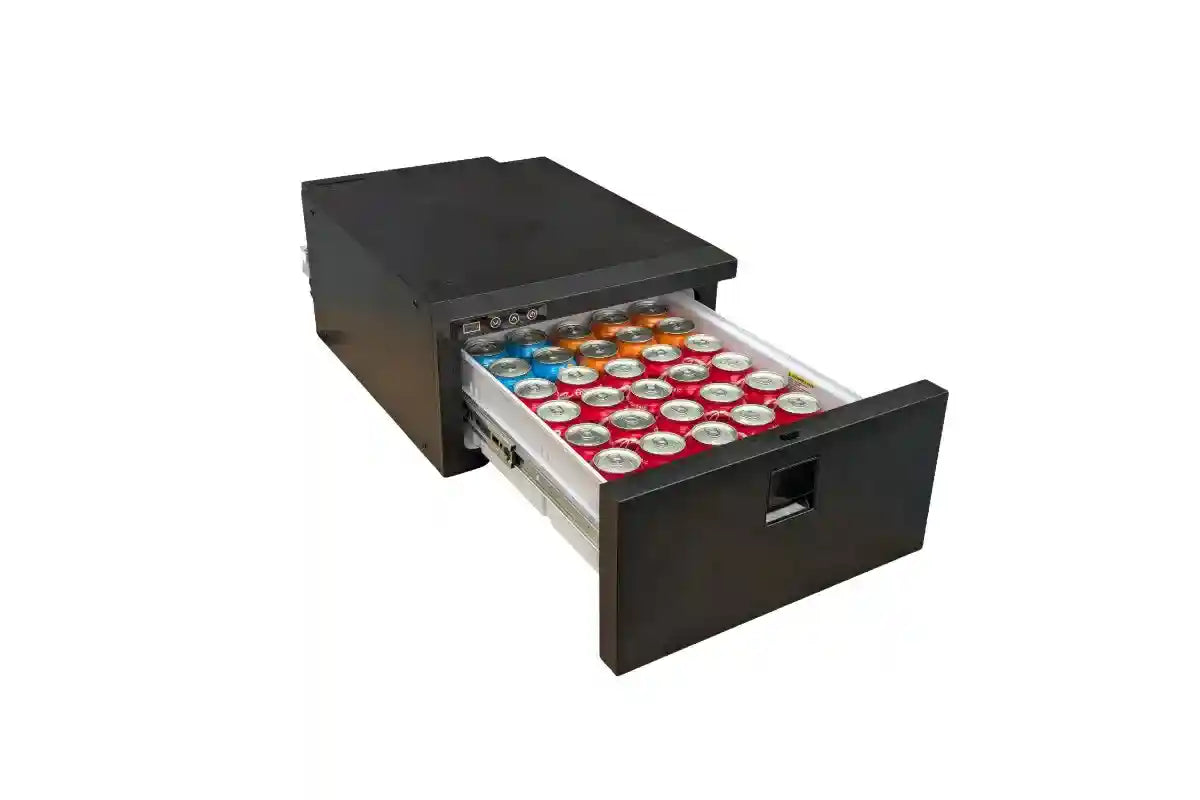

• 30 litre capacity holds 30 x 375 ml cans
• Compatible with 12 V and 24 V DC power via Anderson plug
• Designed for caravans, RVs, canopies, and under-bench spaces with ventilation
• 3 year warranty from Sphere

Specifications

• Capacity: 30 L
• Compressor: SECOP
• Voltage: 12 V / 24 V DC
• Power rating: 45 W
• Power draw (12 V): 0 to 6.4 A
• Average current draw: 1.7 A
• Temperature range: -10°C to +10°C
• Dimensions (L x W x H): 695 x 440 x 260 mm
• Weight: 18 kg
• Ventilation clearance: 50 mm each side, 100 mm around vents
