Cruisemaster HR Classic WDH Adaptor Caravan Hitch Hayman Reese

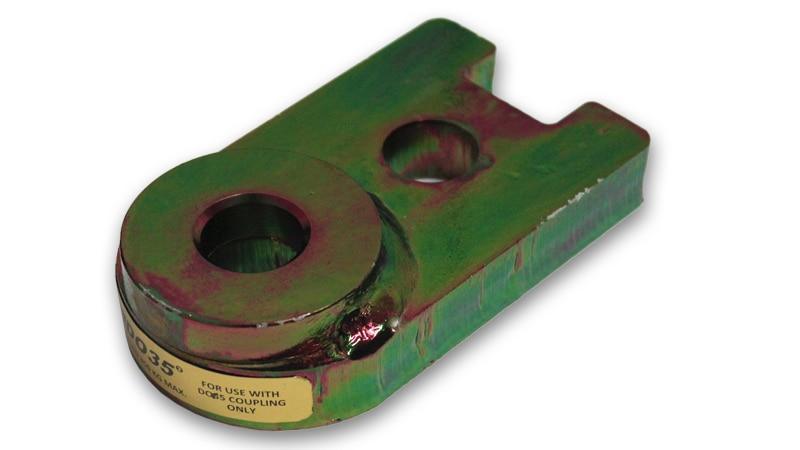

WDH3 DO35 Adaptor Kit
Compatible with DO35 V2 Couplings (not required for DO35 V3 Couplings)
This adaptor kit fits Hayman Reese Standard Weight Distribution Hitch (WDH) systems. It adjusts the towing position to enable correct articulation of DO35 couplings without interference between the coupling and WDH system. Suitable and tested for use with Hayman Reese weight distribution systems only.
Features
- For use with DO35 V2 couplings; optional for DO35 V3

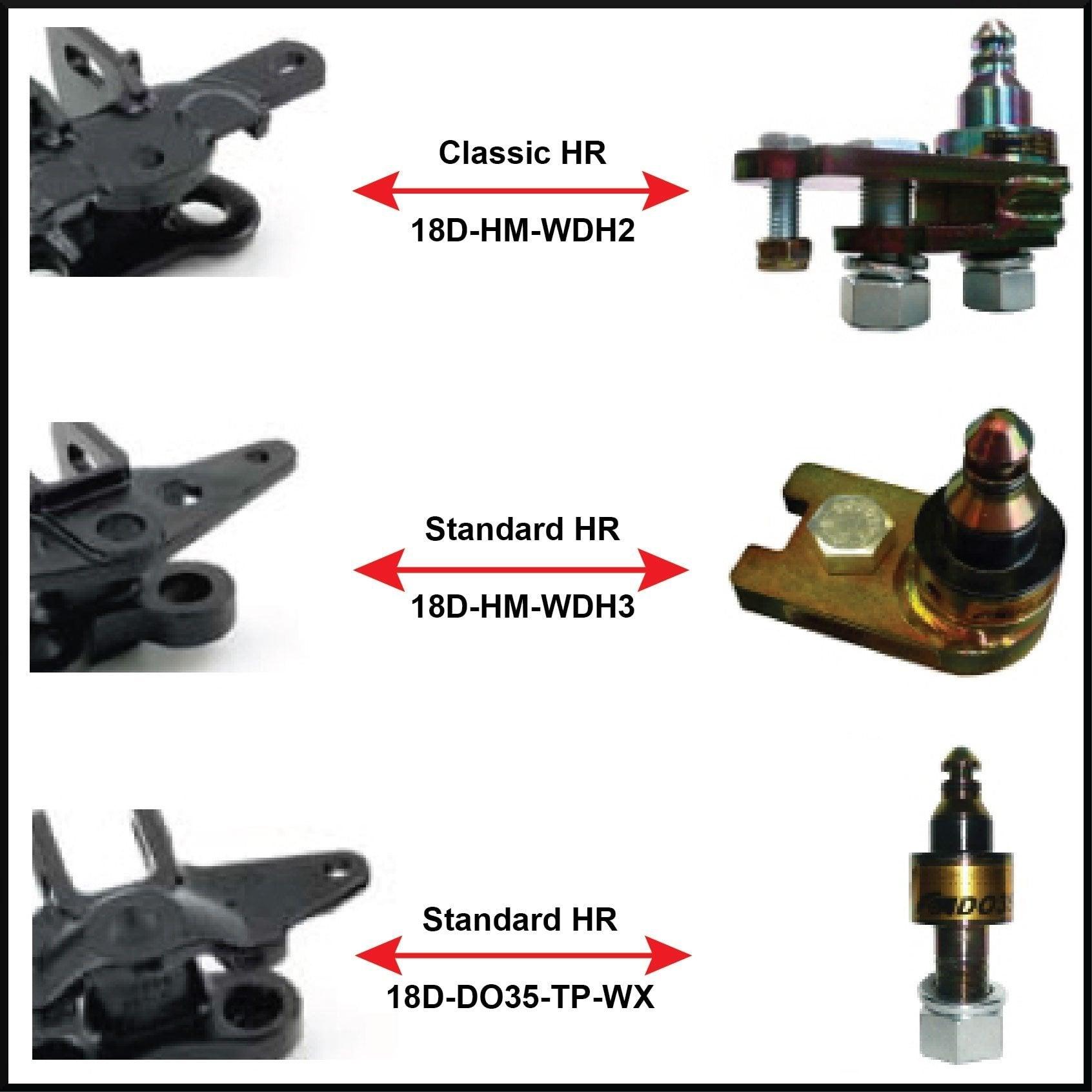

- Designed for Hayman Reese Standard series WDH systems only; not compatible with Classic series

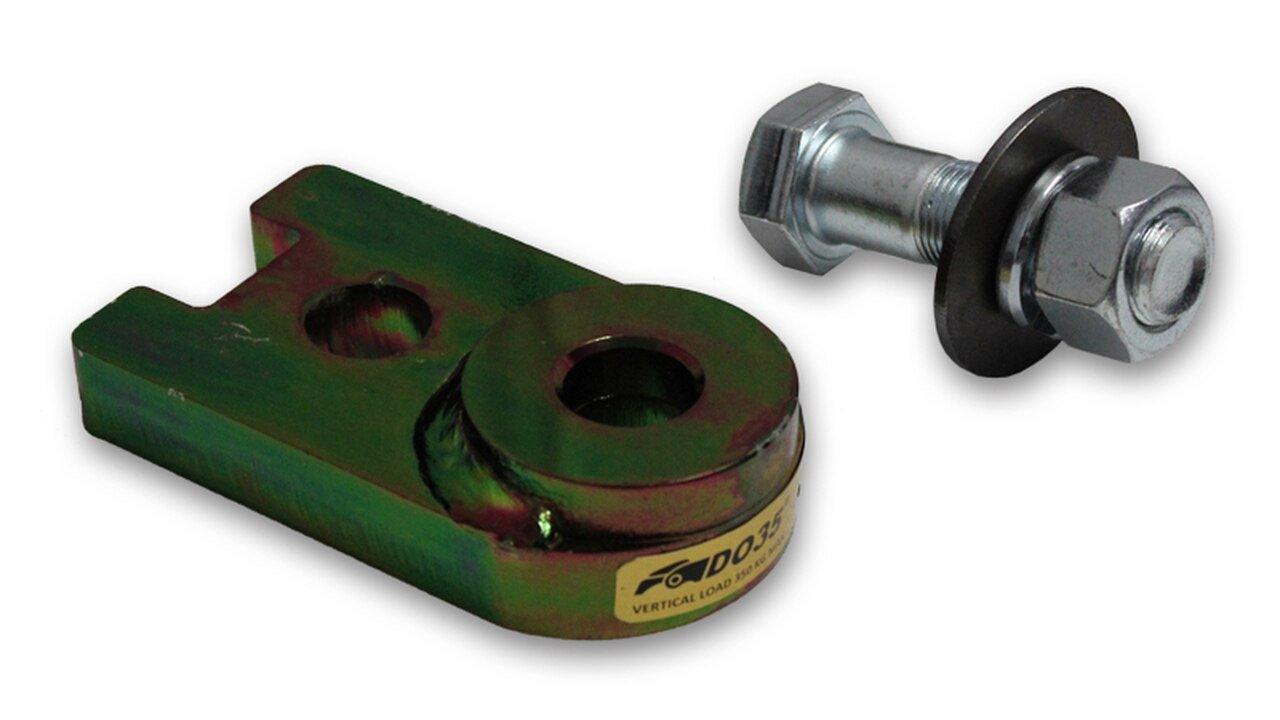

- Includes SA5 plated extension bracket, fasteners, and spacer
- Fits 150mm drawbar sections
- Provides extended tow clearance for Hayman Reese Standard WDH
- Compatible with raised height DO35 towpin (Part No. 18D-DO35-TP-WX), subject to clearance
- Prevents contact between WDH drop arm and coupling
- Allows full DO35 coupling articulation without restriction
- DO35 coupling rated to maximum vertical load of 350kg
Installation Notes
- Verify unrestricted coupling movement after fitting
- Check for contact between WDH parts and trailer drawbar, especially when reversing
- Consider additional loads from WDH on coupling performance
- Follow all manufacturer installation, maintenance, and safety instructions for coupling and WDH
Part Number: 18D-HM-WDH-3
-
