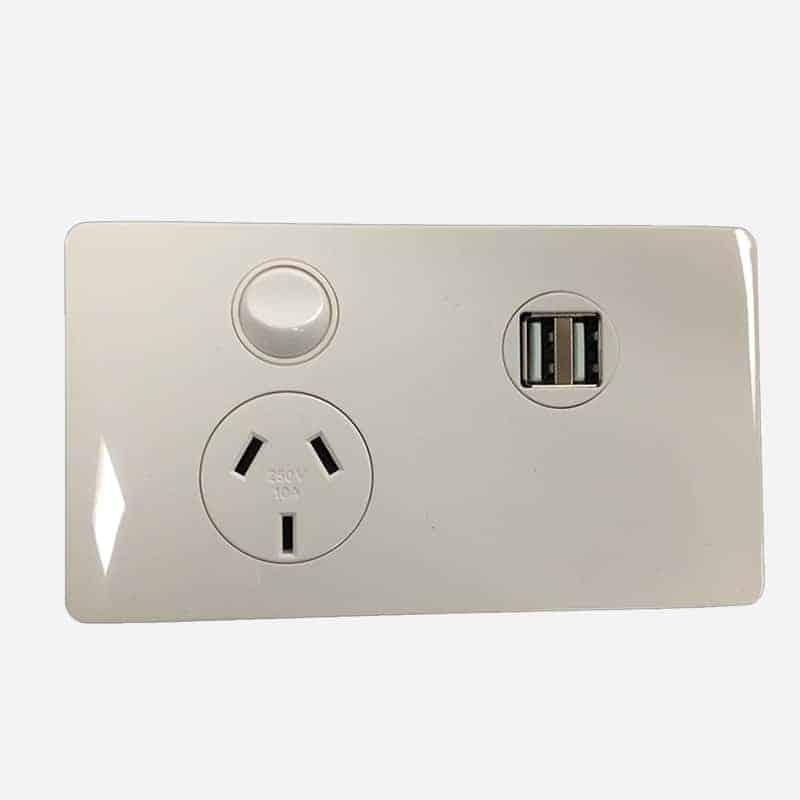

CMS Power Outlet Single GPO + Dual USB J series

500-04402 - J Series Jayco Type

This CMS power outlet combines a single N-W 240V socket with dual 4A USB charging ports powered via a 12VDC terminal. Designed for caravan 240V electrical systems, it features a soft-wire installation with plug-and-play interconnecting leads for faster and simpler installation compared to traditional hard-wired fittings.

Features

• Single N-W 240V power outlet with dual 4A USB charging ports
• 12VDC terminal powers USB outlets
• USB output shared at 4A across two ports
• Soft-wire connection with CMS AS/NZ61535.1 compliant male and female connectors
• Compatible with CMS 3-core 2.5 sq mm cables rated 20 Amp
• Works with CMS caravan and motorhome inlets, RCDs and outlets
• Easy installation and removal without certification
• Rear coupling plug enables fast installation
• Natural white faceplate suited to caravan interiors

Usage

Connect the 12VDC terminal to the caravan’s 12V supply to power the USB ports. Integrates with existing CMS 240V soft-wire systems for caravans and motorhomes. Suitable for Jayco style J Series installations.

Installation note: USB outputs require additional 12V wiring. Use only with compatible CMS cables.
