2.5M Connection Lead "C" Style CMS 230Vac Plug N Play

2.5m Connection Lead “C” Style – CMS 230VAC Plug & Play

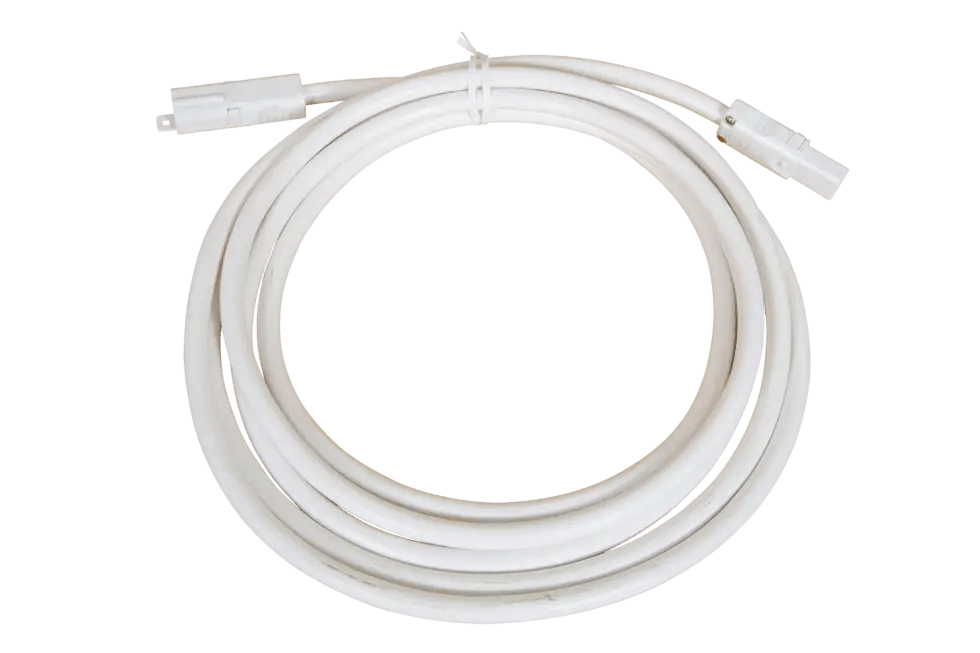

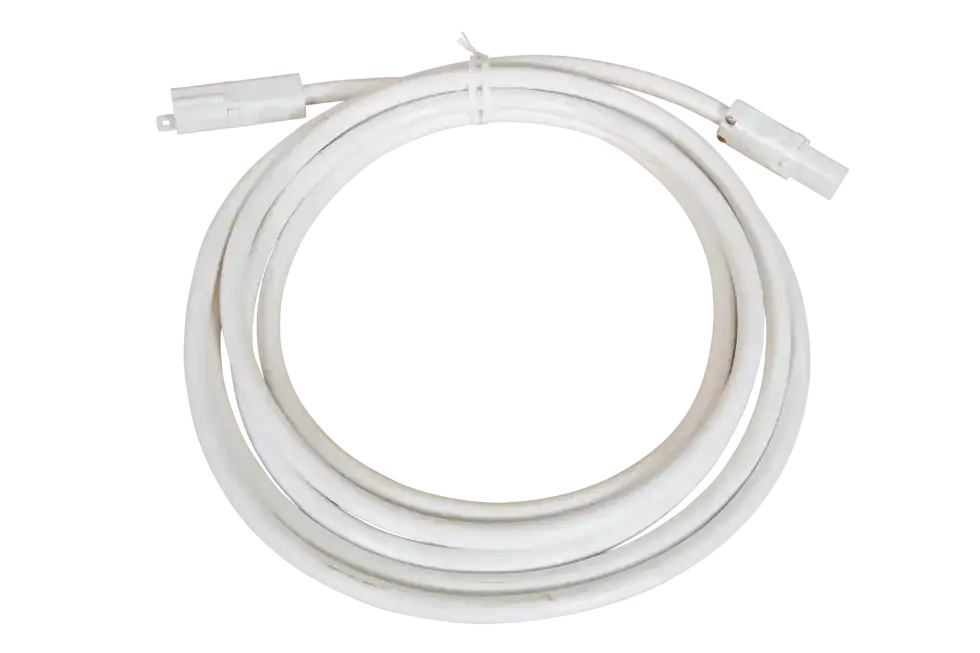

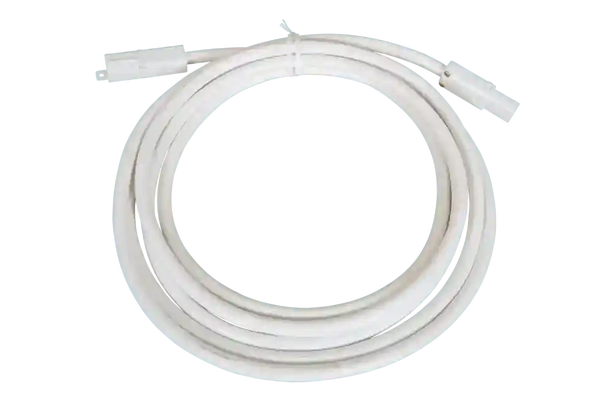

The 2.5m Connection Lead “C” Style is a plug-and-play cable designed for use with CMS Electracom 230VAC systems in caravans, motorhomes, and RV installations. With its extended 2.5 metre length, it is ideal for connecting components across larger distances within your setup.

This cable features sealed connectors and secure locking ends, ensuring safe, reliable connections while simplifying installation for both DIY builders and professional applications.

Important: This cable does not suit Jayco “J” type connectors. Please confirm compatibility before purchasing, especially for retrofit applications.

Key Features

• 2.5m plug-and-play connection lead for CMS Electracom systems

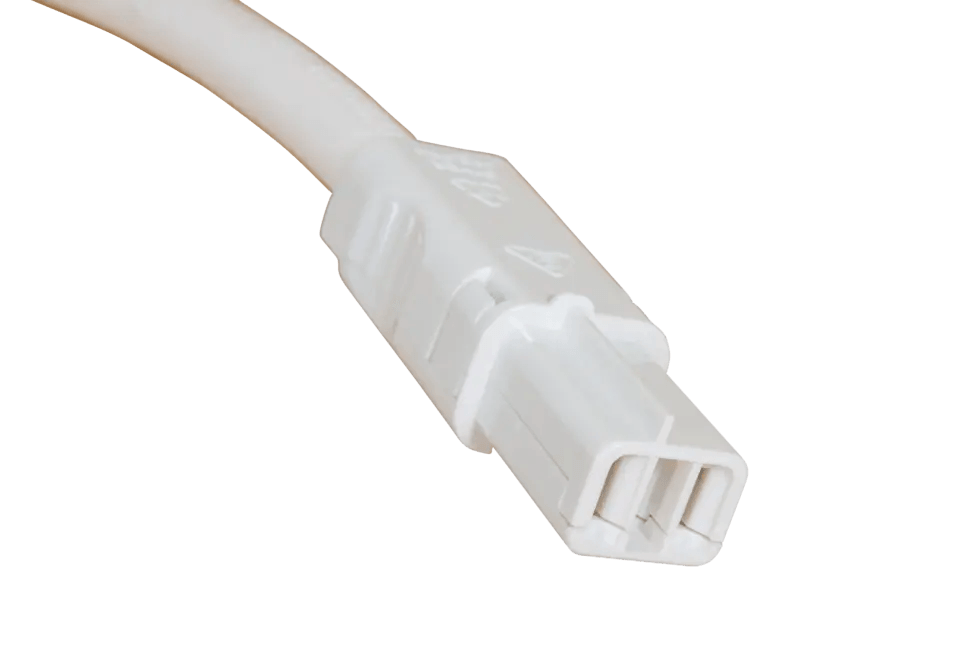

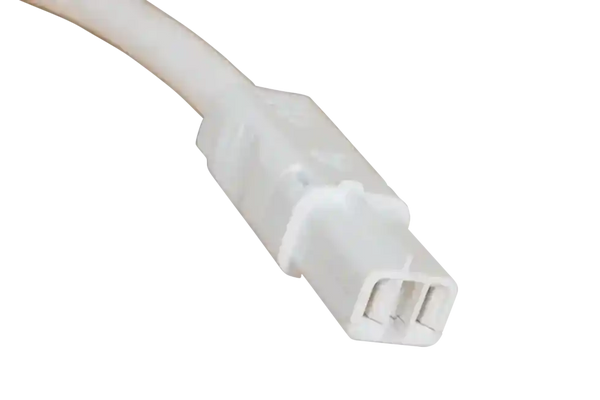

• “C” style connectors with sealed ends (25 × 16 mm)

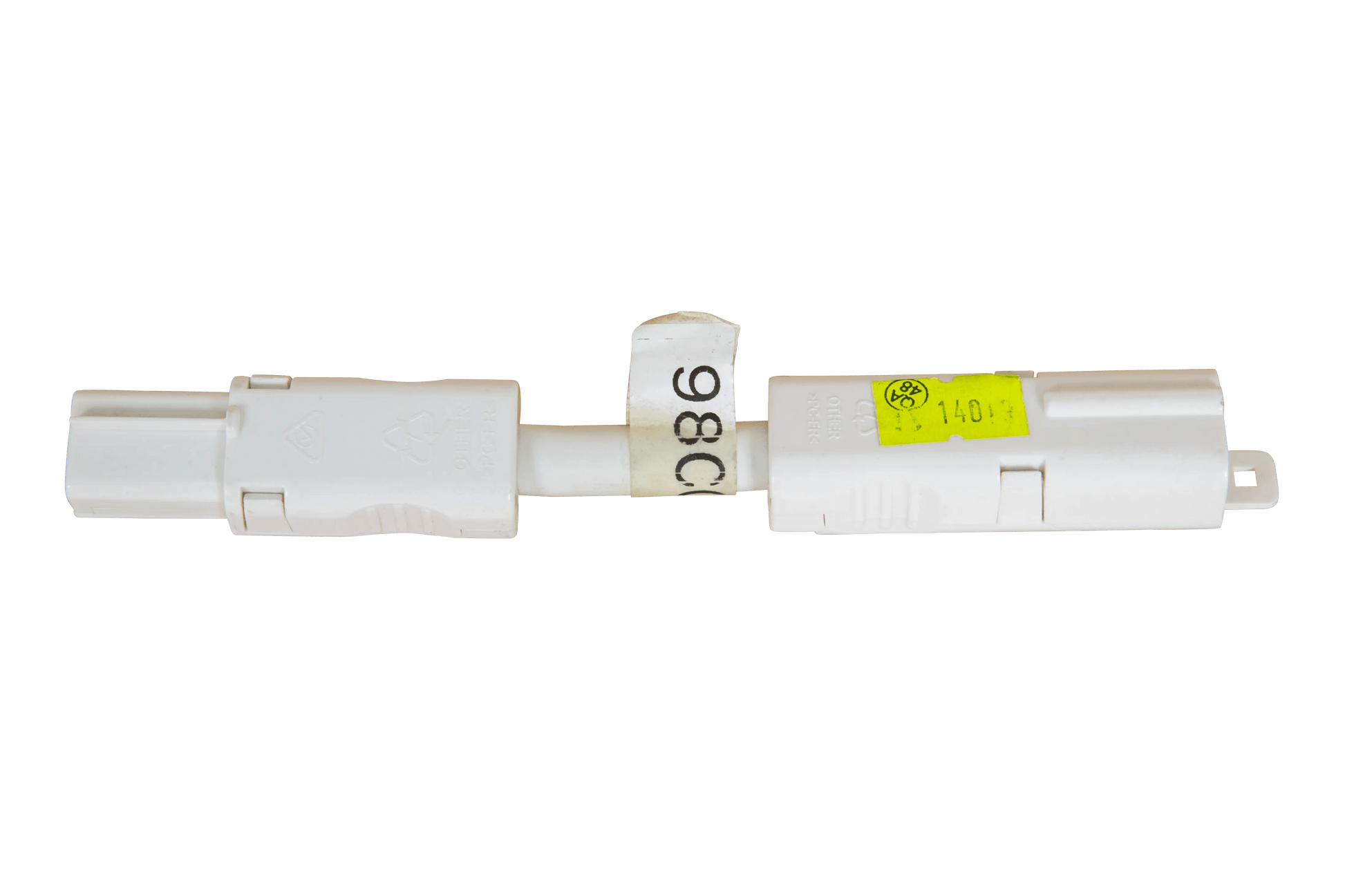

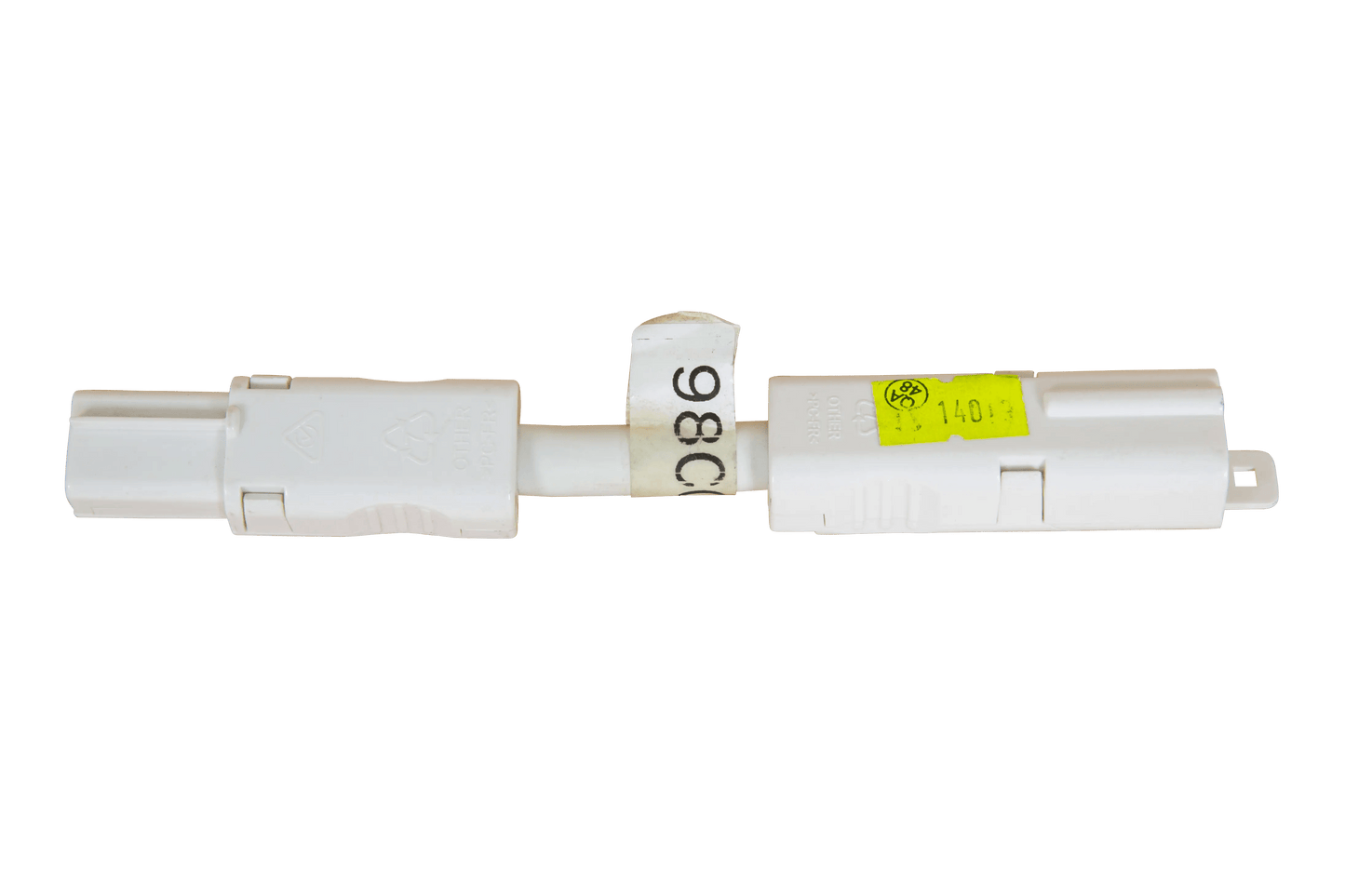

• Male and female ends to prevent incorrect connections
• Secure locking clips for safe and stable connections
• Ideal for longer cable runs in RV electrical systems
• Suitable for caravans, motorhomes, and 4WD canopy installations
• Complies with Australian and New Zealand standards

Specifications

• Length: 250 cm
• Connector Type: C Style (CMS Electracom)
• End Size: 2.5 × 1.6 cm
• Voltage: 230V AC
• Application: RV and caravan electrical systems

System Overview

CMS Electracom systems are designed for modular 230V installations. A typical setup includes:

• External power inlet connected via a 15A extension lead
• 16A circuit breaker or RCD for safety protection
• Power points connected using plug-and-play loom cables

Additional cables and adapters can be used to extend circuits or create new branches for dedicated appliances such as battery chargers, hot water systems, or air conditioning units.

Installation Notes

• Each circuit must include a 16A circuit breaker or RCD
• Maximum of 10 double or 12 single power points per circuit
• Cables have sealed ends (25 × 16 mm)
• Allow extra cable length for servicing and replacement
• Power points require a minimum recess depth of 32 mm
• Install cabling before wall sheeting where possible

CMS Electracom components are widely used in Australian RV manufacturing due to their ease of installation, compliance, and flexibility in system design.
