2.0m Connection Lead “C” Style – CMS 230VAC Plug & Play

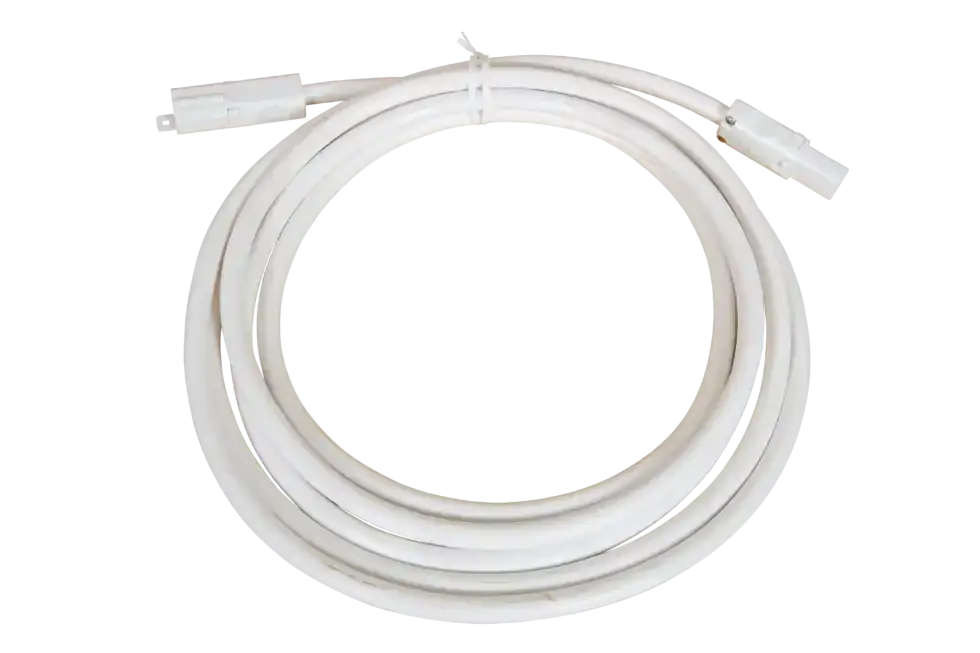

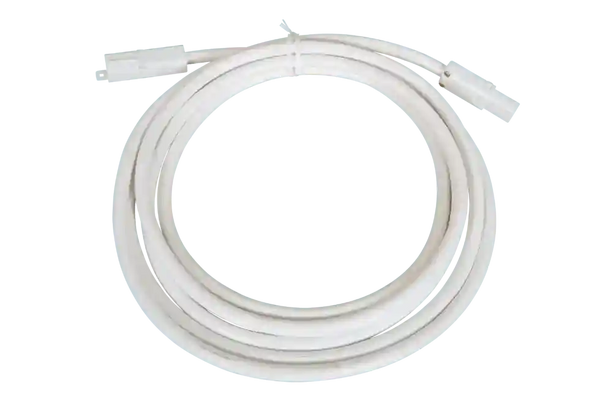

The 2.0m Connection Lead “C” Style is a plug-and-play cable designed for use with CMS Electracom 230VAC systems in caravans, motorhomes, and RVs. With a longer 2-metre length, it is ideal for connecting components across wider distances within your vehicle.

This lead features sealed connectors and secure locking ends, making installation simple, safe, and reliable for both DIY builders and professional setups.

Important: This cable does not suit Jayco “J” type connectors. Please check compatibility before purchasing, especially for retrofit applications.

Key Features

• 2.0m plug-and-play connection lead for CMS systems

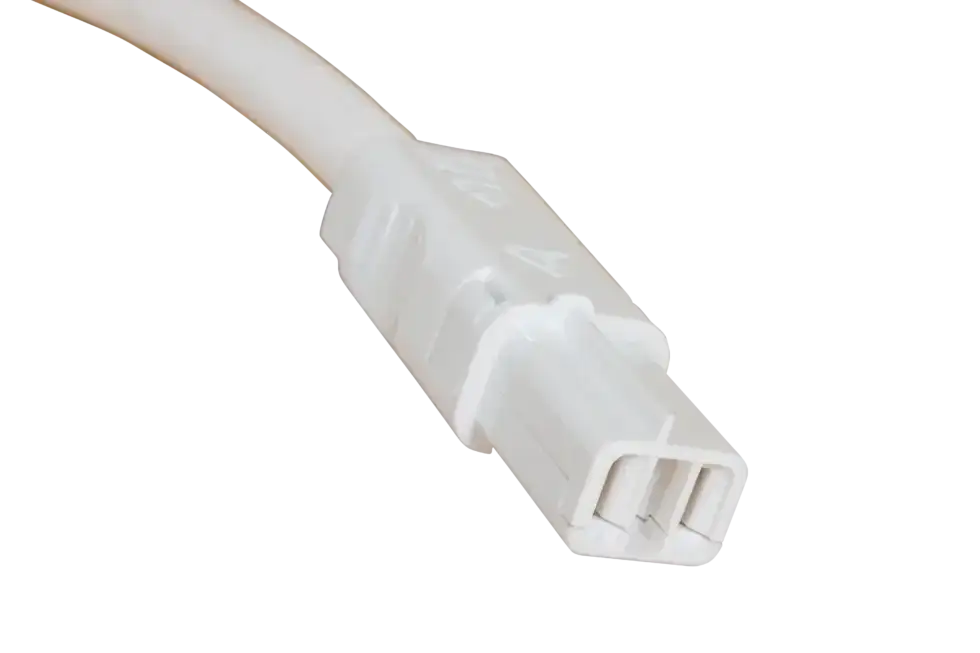

• “C” style connectors with sealed ends (25 × 16 mm)

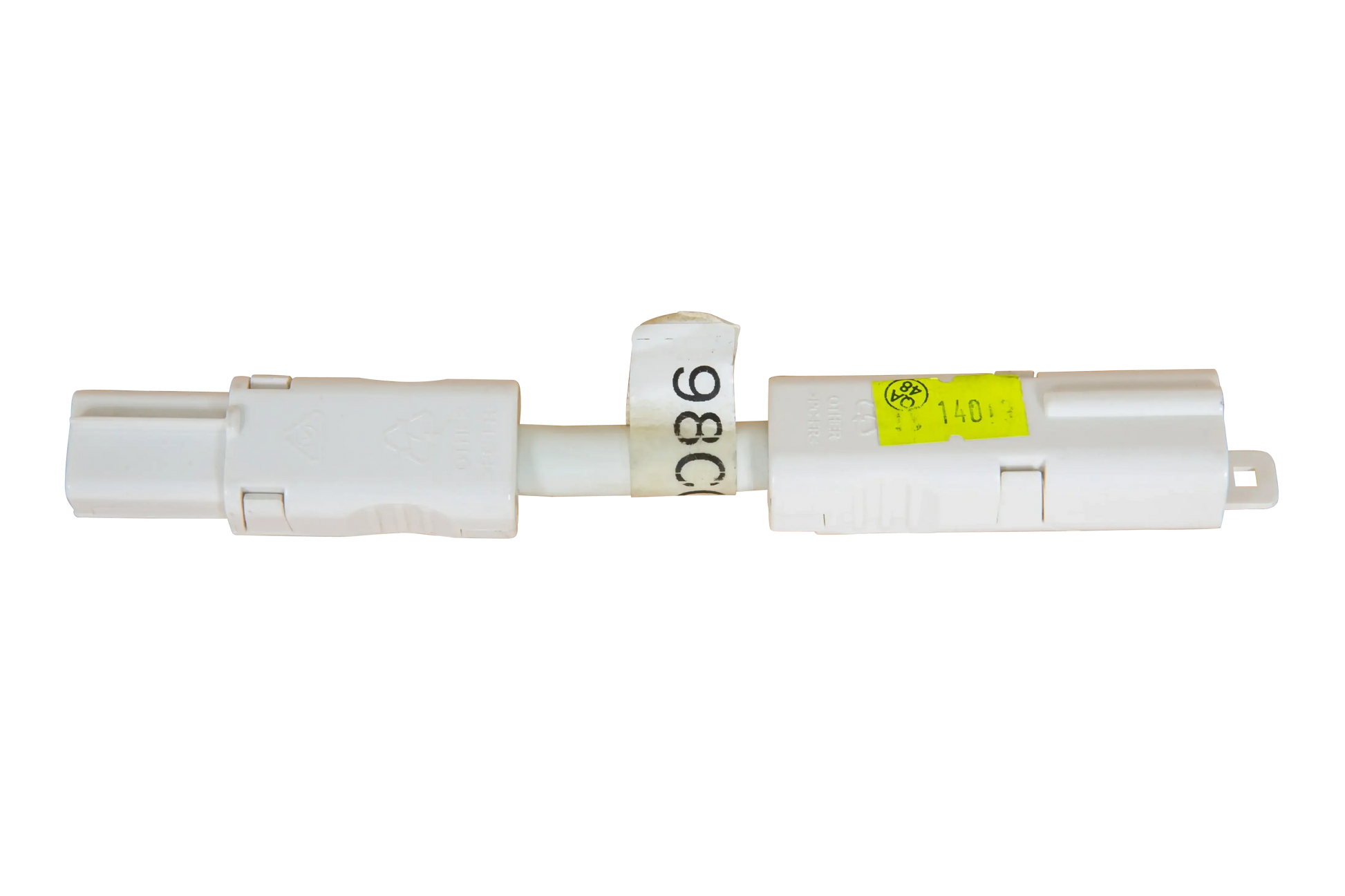

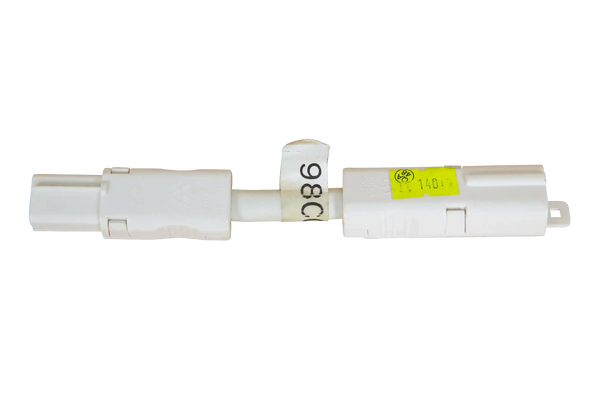

• Male and female ends to prevent incorrect connections
• Secure locking clips for reliable and safe connections
• Ideal for longer cable runs within RV installations
• Suitable for caravans, motorhomes, and 4WD canopy setups
• Complies with Australian and New Zealand standards

Specifications

• Length: 200 cm
• Connector Type: C Style (CMS Electracom)
• End Size: 2.5 × 1.6 cm
• Voltage: 230V AC
• Application: RV and caravan electrical systems

System Overview

CMS Electracom systems are designed for modular 230V installations. A typical setup includes:

• Power inlet connected via a 15A extension lead
• 16A circuit breaker or RCD for protection
• Power points connected via plug-and-play loom cables

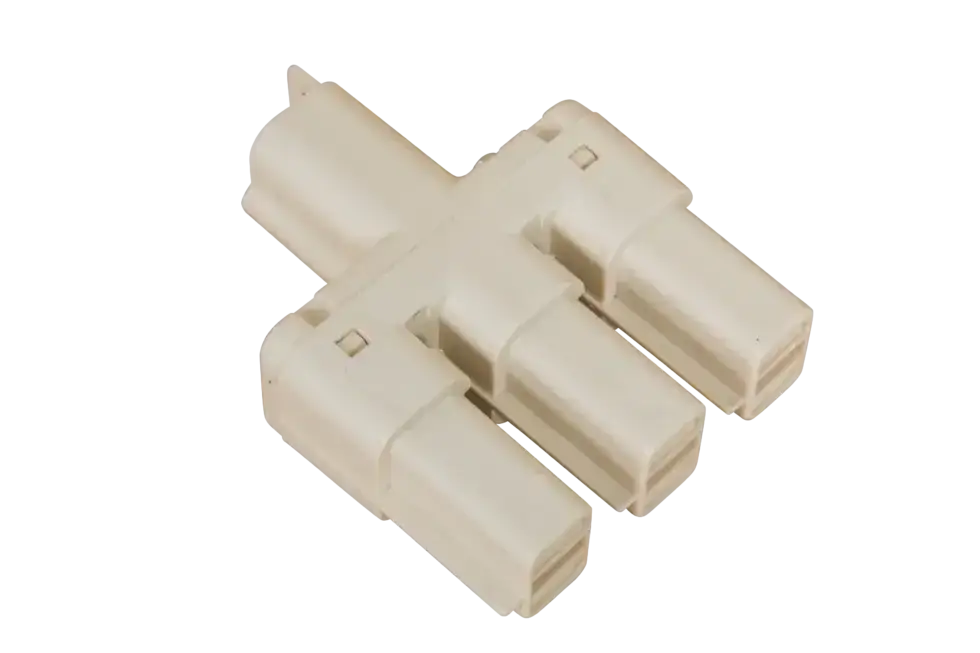

Additional cables and adapters can be used to extend circuits or branch new lines for dedicated appliances such as battery chargers, hot water systems, or air conditioning units.

Installation Notes

• Each circuit must include a 16A circuit breaker or RCD
• Maximum of 10 double or 12 single power points per circuit
• Cables feature sealed ends (25 × 16 mm)
• Allow extra cable length for servicing and replacement
• Power points require a minimum recess depth of 32 mm
• Install cabling prior to wall sheeting where possible

CMS Electracom components are widely used in Australian RV manufacturing due to their ease of installation, safety compliance, and flexibility in system design.
