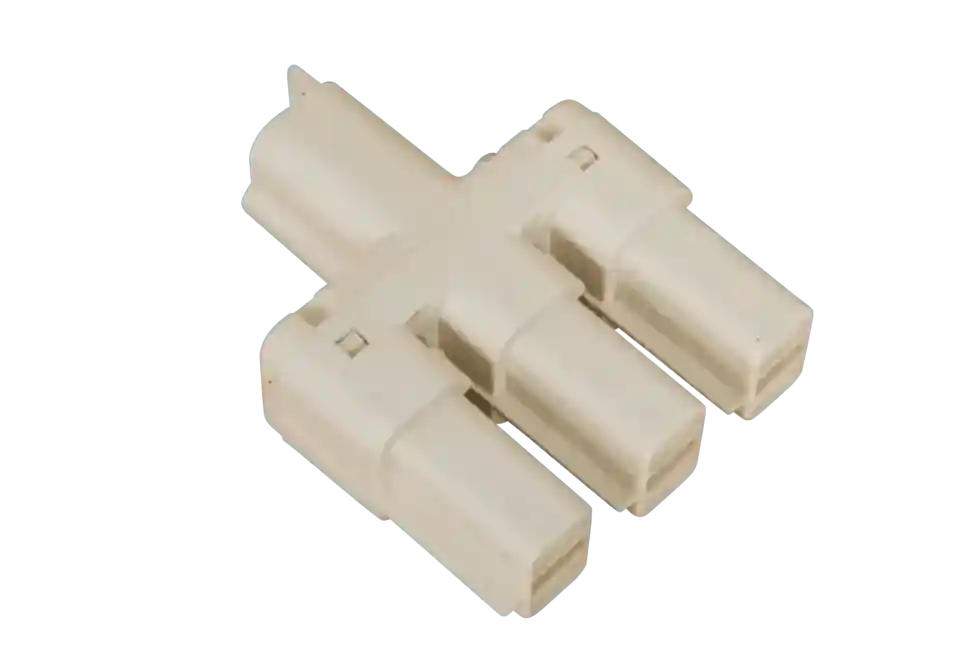

AC Splitter 1 into 3 Out C Type CMS 230Vac Plug N Play

AC Splitter 1 In / 3 Out - C Type CMS 230Vac Plug and Play

Important: This AC Splitter is not compatible with Jayco "J" type connectors. Please verify compatibility before retrofitting.

Features

• Input / Output: 1 input to 3 output splitter for C Type connectors
• Voltage: 230Vac suitable for Australian and New Zealand setups
• Plug and Play: Simple connection with male and female ends designed to prevent incorrect wiring
• Safety: Requires a 16A circuit breaker or RCD on each circuit for compliance
• Installation: DIY friendly, fits into walls with 32mm recess depth; mounting blocks available if recessing is not possible
• Cable Design: Cables have sealed ends (25mm x 16mm); extra length recommended for removal or replacement
• Compliance: Meets relevant AS/NZ standards including AS/NZ 3112, AS/NZ 61535.1, and AS/NZ 3000
• Use Case: Ideal for motorhomes, caravans, commercial vehicles and 4WD canopies
• Expandability: Allows branching with double adapters to add power points or dedicated lines
• Switching: Power points include double pole switches meeting recreational vehicle standards

Usage Overview

The splitter connects a single 230V input to three outputs within your vehicle’s electrical system. A typical installation includes a CMS Power Inlet connected to a 16A circuit breaker, followed by each power point connected in series. The final outlet in the line remains free for future expansion or external use.

All components are designed for easy, safe DIY installation that reduces electrician time by enabling pre-wiring during vehicle build or retrofit. Compatible only with CMS C Type connectors, not Jayco "J" type connectors.
