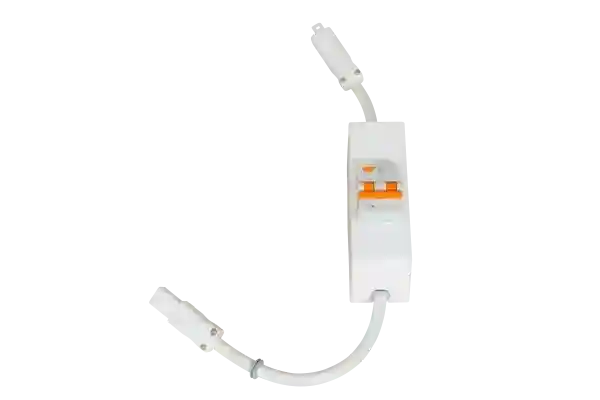

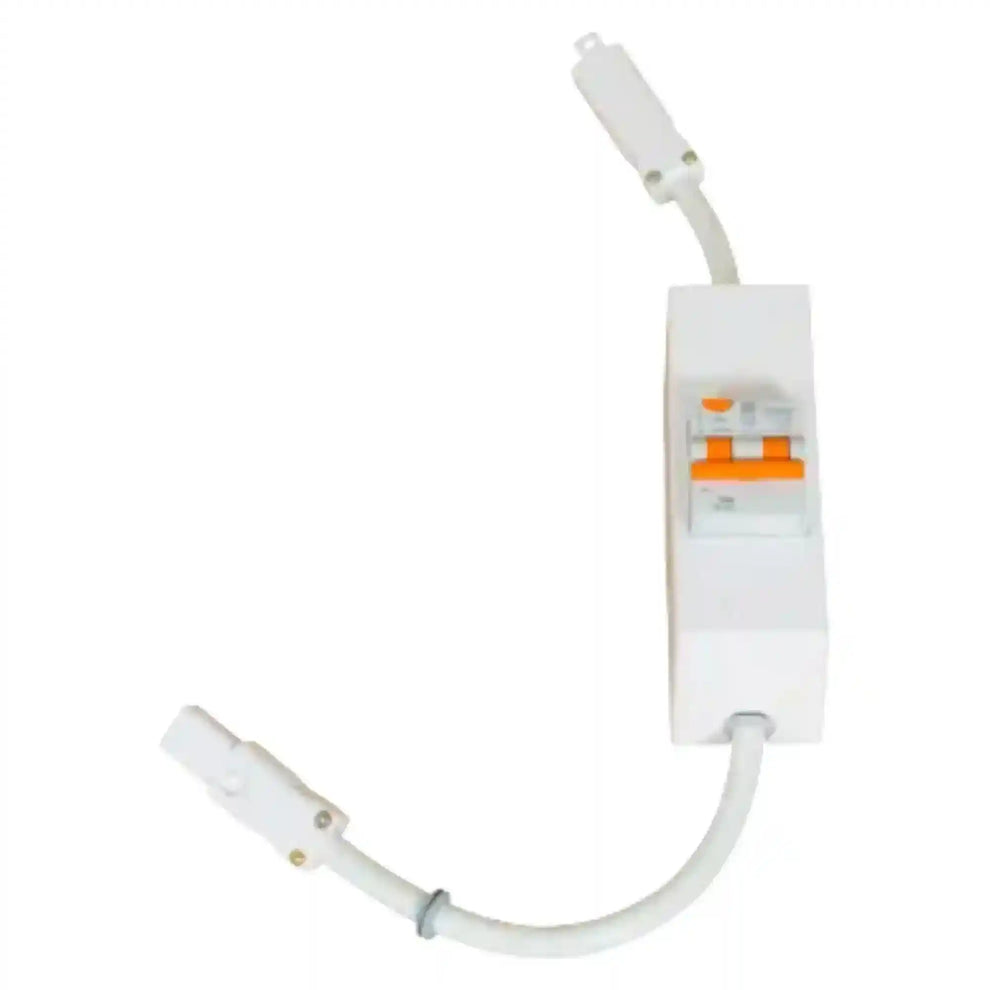

C Style to C Style RCD 16A including MEN CMS 230Vac Plug N Play

"C" Style to "C" Style RCD 16A with MEN CMS 230Vac Plug & Play

CMS-RCD-C3.1

Note: Not compatible with Jayco "J" type connectors. Verify compatibility before retrofitting.

Features:

• Type: C Style to C Style RCD 16A including MEN (Inverter Output)
• Application: Suitable for Recreational Vehicles (RVs), caravans, motorhomes, commercial vehicles, and 4WD canopies
• Compliance: Meets Australian and New Zealand standards AS/NZS 3112, AS/NZS 61535.1, AS/NZS 3000
• Installation: DIY friendly with plug & play design to reduce electrician time
• Safety: Double pole switches on all power points, mandatory 16A circuit breaker or RCD per circuit
• Cables: Sealed ends (25mm x 16mm), male and female connectors to prevent incorrect connections
• Power Points: Requires 32mm recess depth; mounting blocks available when recessing is not possible
• Setup: Includes power inlet, 16A circuit breaker, sequential connection of power points, with option for external outlet
• Circuit: Maximum 10 double or 12 single power points per circuit
• Expansion: Double adapters allow branching off new lines for low/high power points or dedicated circuits

Product Overview

This C Style to C Style RCD 16A with MEN is designed for safe 230Vac power distribution in RVs and similar applications. The system includes a power inlet, 16A RCD or circuit breaker, and linked power points. It does not support Jayco "J" type connectors, so confirm connector type before installation.

Installation Tips

• Install cables before wall sheeting or ensure they can be fed through frame members.
• Leave extra cable length inside walls for future power point removal or replacement.
• Security clips on connectors prevent accidental disconnection; manual release required.
• All power points feature double pole switches to comply with RV electrical standards.

How It Works

Connect the 230V power inlet via a 15A extension lead to your RV. The 16A RCD or circuit breaker plugs into the inlet, then cables connect from power point to power point in sequence. The final power point outlet remains available for future use or can be replaced with an external outlet for outdoor power.

Use double adapters in the loom to branch new lines for appliances like battery chargers, hot water units, or air conditioners.
