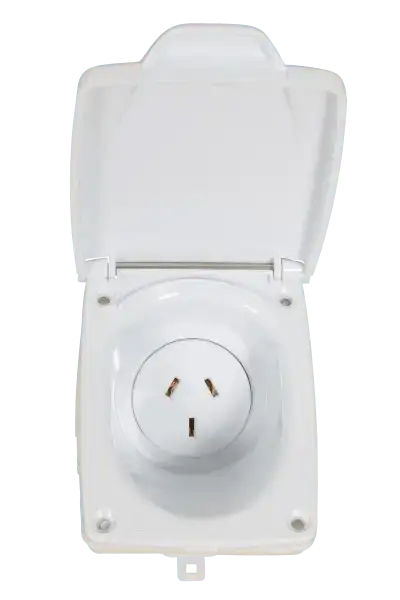

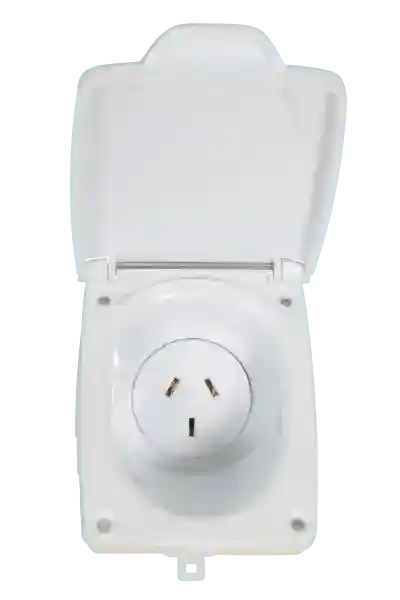

10A AC Power External Outlet White CMS 230Vac Plug N Play

10A AC Power External Outlet White CMS 230Vac Plug and Play

CMS-COL10WT

Note: This outlet does not fit Jayco "J" type connectors. Please verify compatibility before retrofitting.

Features

• Rated current: 10A at 230Vac
• Colour: White
• Power outlet type: External AC power outlet for RVs, caravans, motorhomes, and 4WD canopies
• Compatibility: Not compatible with Jayco "J" type connectors
• Installation: Plug and play design for easy DIY installation
• Design requirements: Requires 32mm recess depth or mounting blocks if recessing is not possible
• Cable connections: Sealed male and female ends prevent connection errors
• Mounting features: Security clips attached, requiring manual release to disconnect
• Standards compliance: Meets Australian and New Zealand electrical standards AS/NZS 3112, AS/NZS 61535.1, and AS/NZS 3000
• Safety: Each circuit requires a 16A circuit breaker or RCD installation
• System setup: Works with CMS power inlet, 16A circuit breaker, and multiple power points in series
• Usage: Suitable for use as an external outlet under awnings or dedicated power outlet in RVs

CMS Electracom manufactures modular AC power points and cables allowing DIY installation inside vehicle walls, reducing electrician time during final setup and inspection.

Installation notes: Cables measure approximately 25mm x 16mm at sealed ends; ensure cables can be fitted through framing if installing post-sheeting. Allow extra cable length for power point removal or replacement.

Important: Confirm connector type before purchasing as this product is not compatible with Jayco "J" type plugs.
