250mm Connection Lead “C” Style – CMS 230VAC Plug & Play

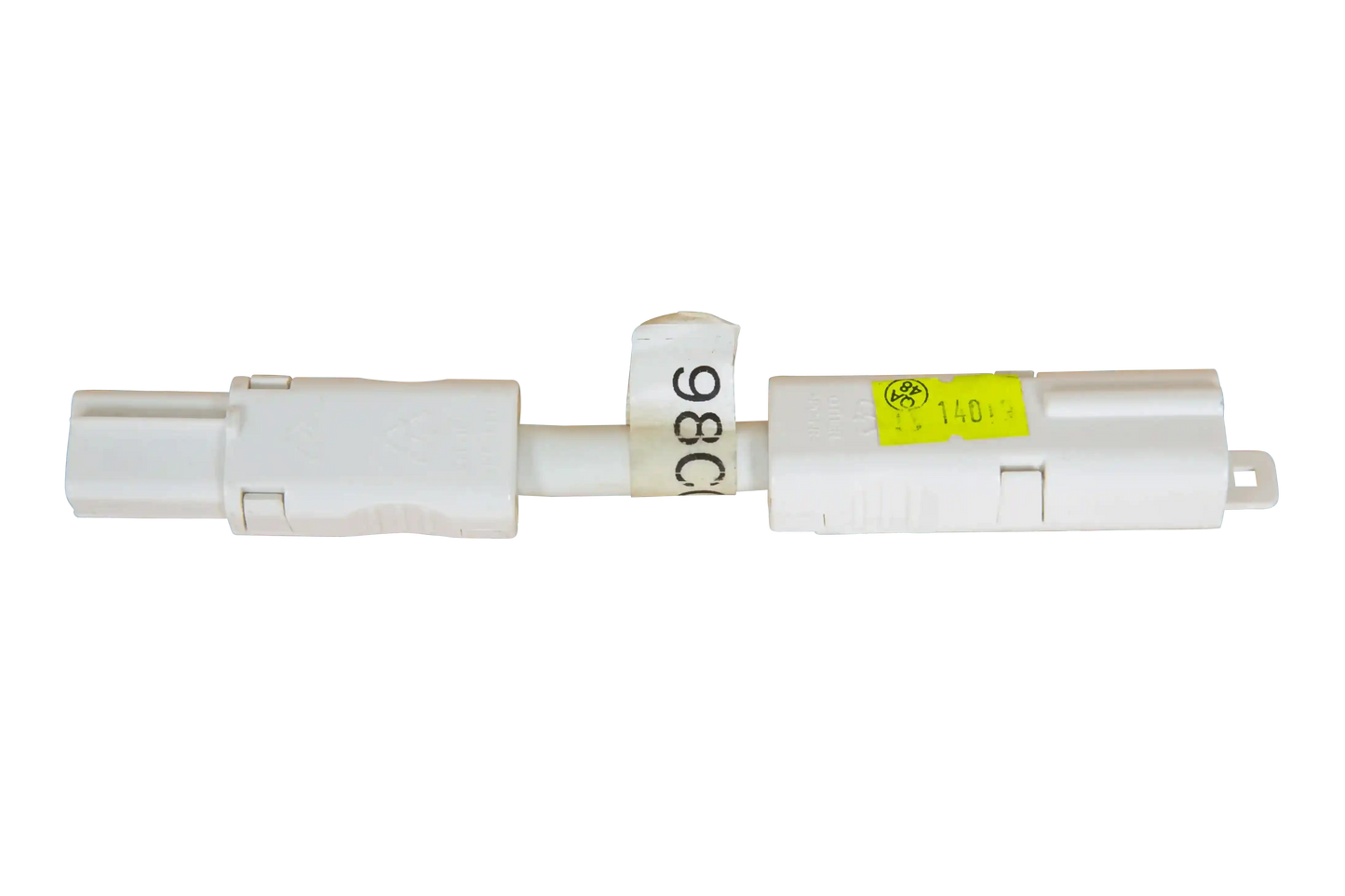

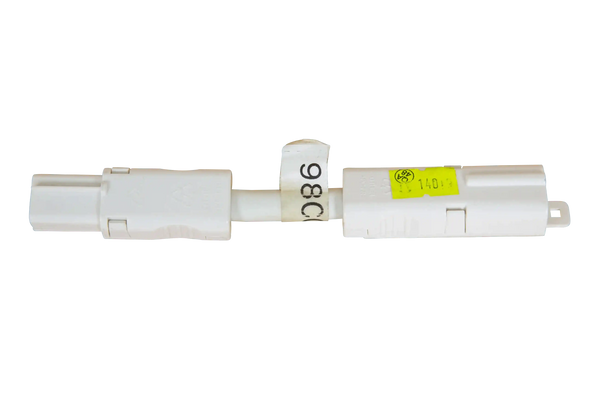

The 250mm Connection Lead “C” Style is a compact plug-and-play cable designed for use with CMS Electracom 230VAC systems in caravans, motorhomes, and RV installations. Its short length makes it ideal for connecting components in tight spaces or linking closely positioned electrical devices.

Built with sealed connectors and secure locking ends, this lead ensures safe and reliable connections while simplifying installation for both DIY builders and professional setups.

Important: This cable does not suit Jayco “J” type connectors. Please confirm compatibility before purchasing, especially for retrofit applications.

Key Features

• 250mm plug-and-play connection lead for CMS Electracom systems

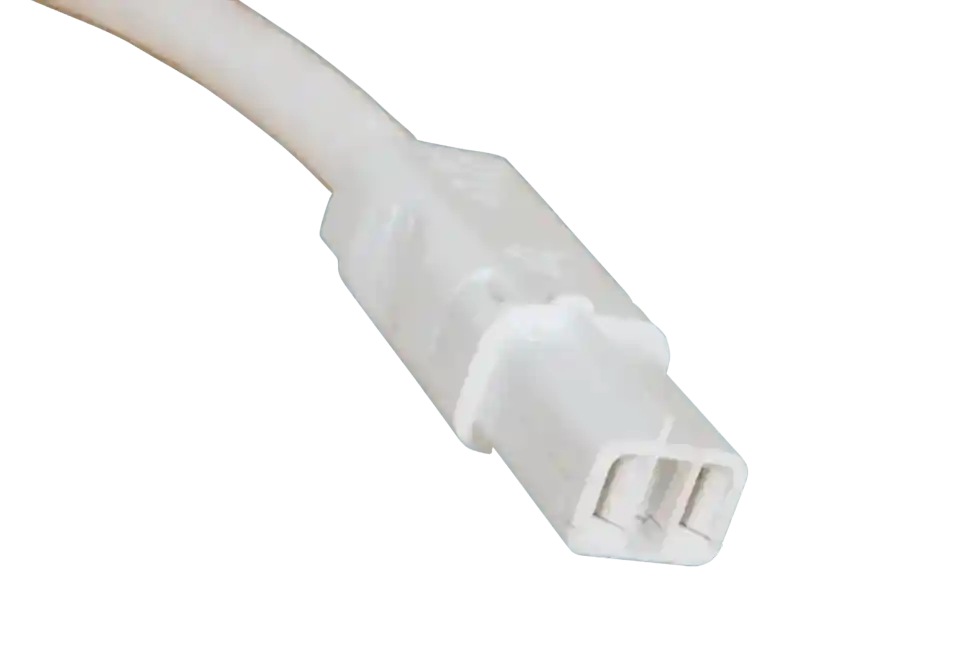

• “C” style connectors with sealed ends (25 × 16 mm)
• Male and female ends to prevent incorrect connections
• Secure locking clips for safe and stable connections
• Ideal for short connections in confined installation areas
• Suitable for caravans, motorhomes, and 4WD canopy setups
• Complies with Australian and New Zealand standards

Specifications

• Model: CMS-250MM-LEAD
• Length: 25 cm
• Connector Type: C Style (CMS Electracom)
• End Size: 2.5 × 1.6 cm
• Voltage: 230V AC
• Application: RV and caravan electrical systems

System Overview

CMS Electracom systems are designed for modular 230V installations. A typical setup includes:

• External power inlet connected via a 15A extension lead
• 16A circuit breaker or RCD for safety protection
• Power points connected using plug-and-play loom cables

Additional cables and adapters can be used to extend circuits or create branches for dedicated appliances such as battery chargers, hot water systems, or air conditioning units.

Installation Notes

• Each circuit must include a 16A circuit breaker or RCD
• Maximum of 10 double or 12 single power points per circuit
• Cables have sealed ends (25 × 16 mm)
• Allow extra cable length for servicing and replacement
• Power points require a minimum recess depth of 32 mm
• Install cabling before wall sheeting where possible

CMS Electracom components are widely used in Australian RV manufacturing due to their ease of installation, compliance, and flexible system design.
