150mm Connection Lead “C” Style – CMS 230VAC Plug & Play

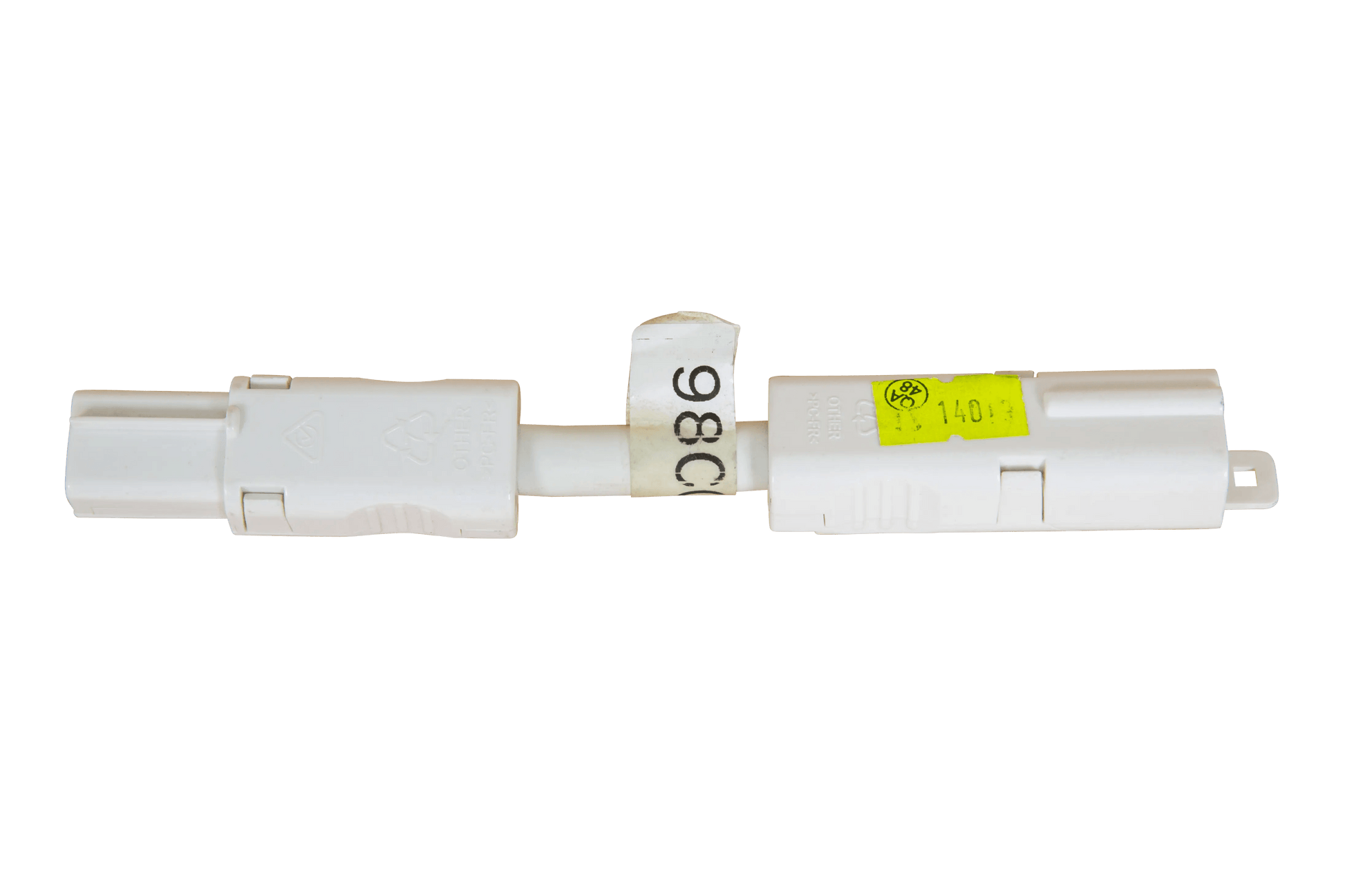

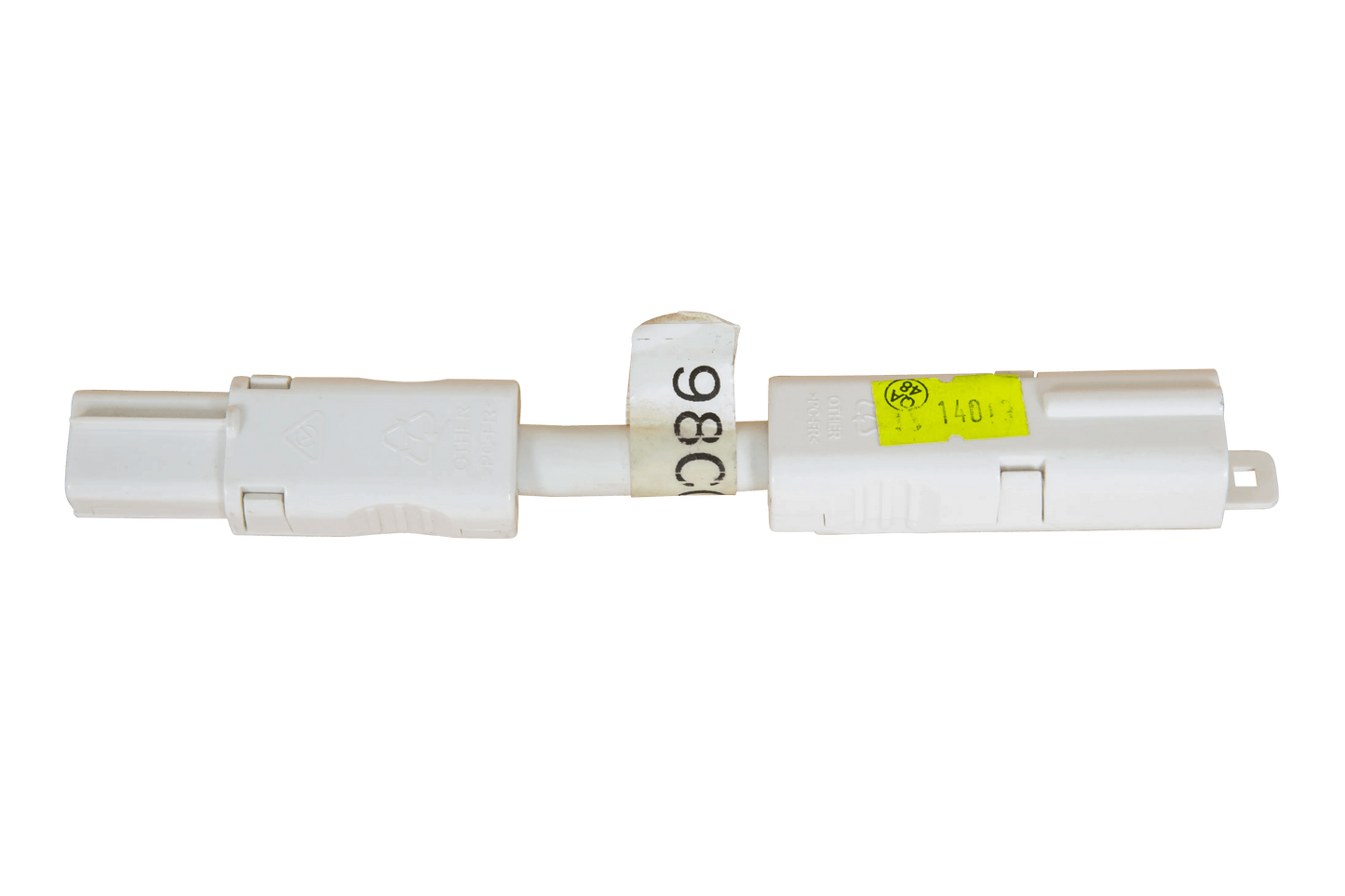

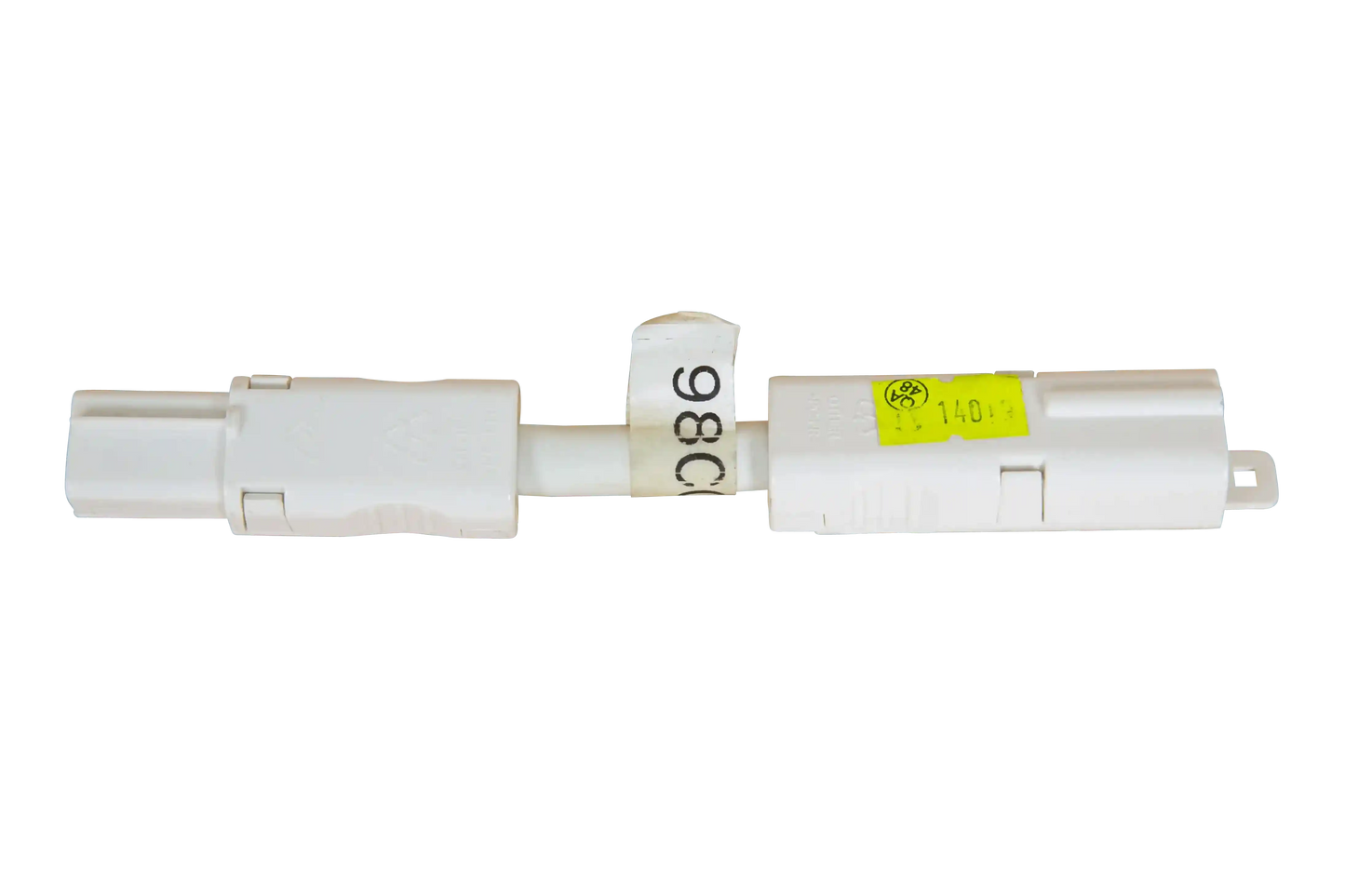

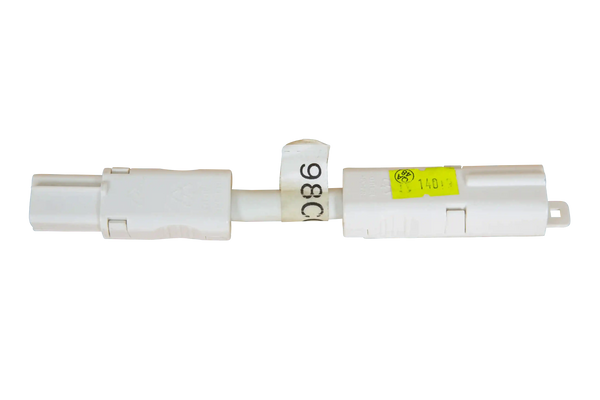

The 150mm Connection Lead “C” Style is designed for use with CMS Electracom 230VAC systems in caravans, motorhomes, and 4WD canopies. This plug-and-play cable enables quick and straightforward connections between power components without complex wiring.

Its 150mm length and sealed connectors make it suitable for linking nearby terminals such as power inlets, circuit breakers, and power points in confined spaces.

Note: This lead is not compatible with Jayco “J” type connectors. Verify compatibility before purchase, especially for retrofits.

Features

• 150mm connection lead for CMS Electracom systems

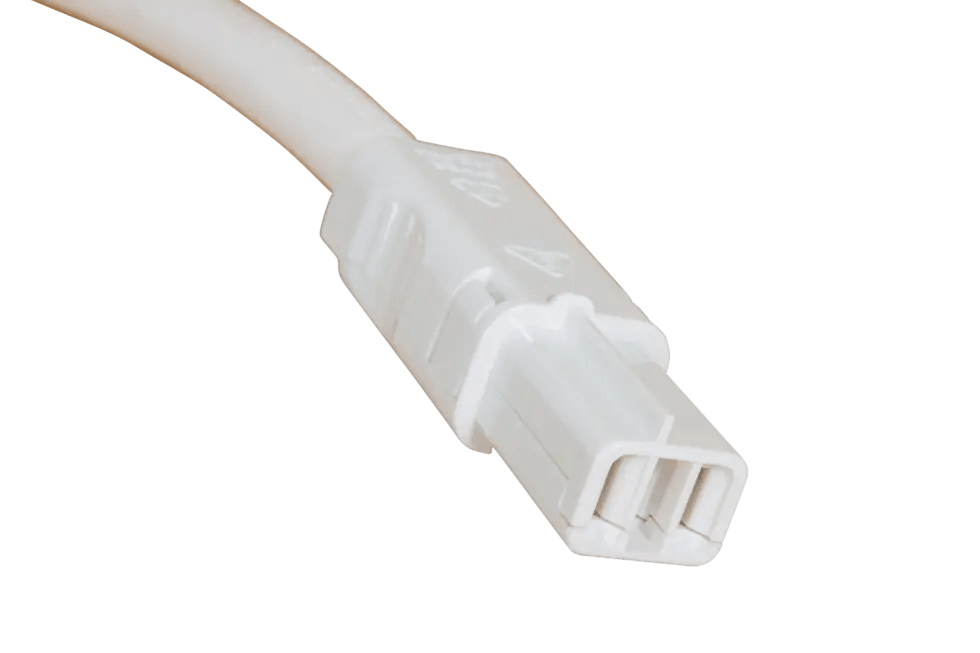

• “C” style connectors with sealed ends (25 × 16 mm)
• Male and female ends to prevent incorrect connections
• Locking clips for secure connections
• Compact size for tight installation spaces
• Suitable for caravans, RVs, motorhomes, and 4WD canopies
• Complies with Australian and New Zealand electrical standards

Specifications

• Length: 150 mm
• Connector Type: C Style (CMS Electracom)
• Connector Dimensions: 25 × 16 mm
• Voltage: 230V AC
• Application: RV and caravan electrical systems

Usage Notes

• Use with CMS Electracom 230VAC modular wiring systems
• Do not use with Jayco “J” type connectors
• Recommended for connecting power inlets, circuit breakers, and power points within close proximity

Installation Requirements

• Each circuit must include a 16A circuit breaker or RCD
• Maximum 10 double or 12 single power points per circuit
• Allow additional cable length for servicing and replacement
• Power points require minimum 32 mm recess depth
• Install cables before wall sheeting when possible

The CMS Electracom system is designed for efficient installation and maintenance by licensed electricians, widely used in RV manufacturing.
