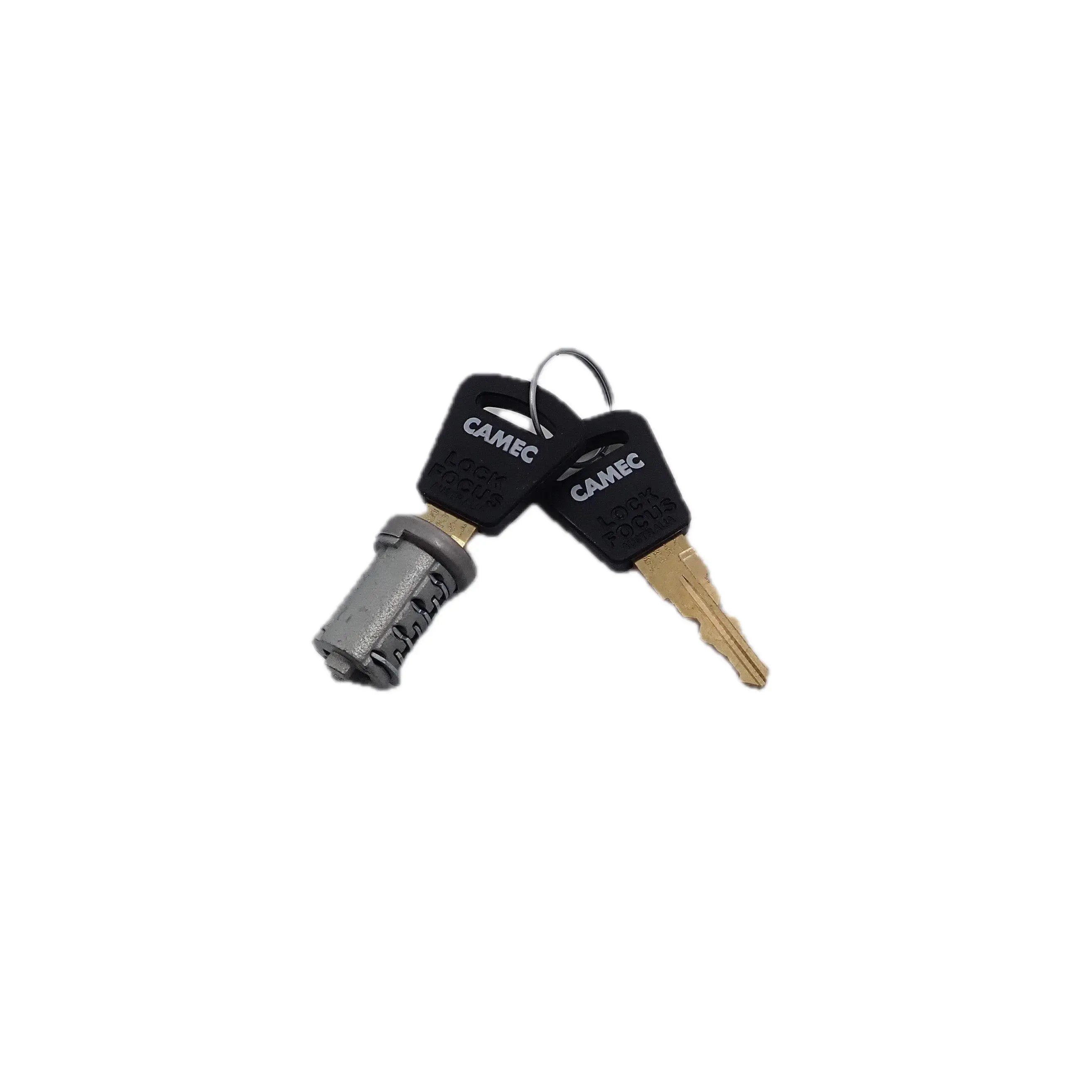

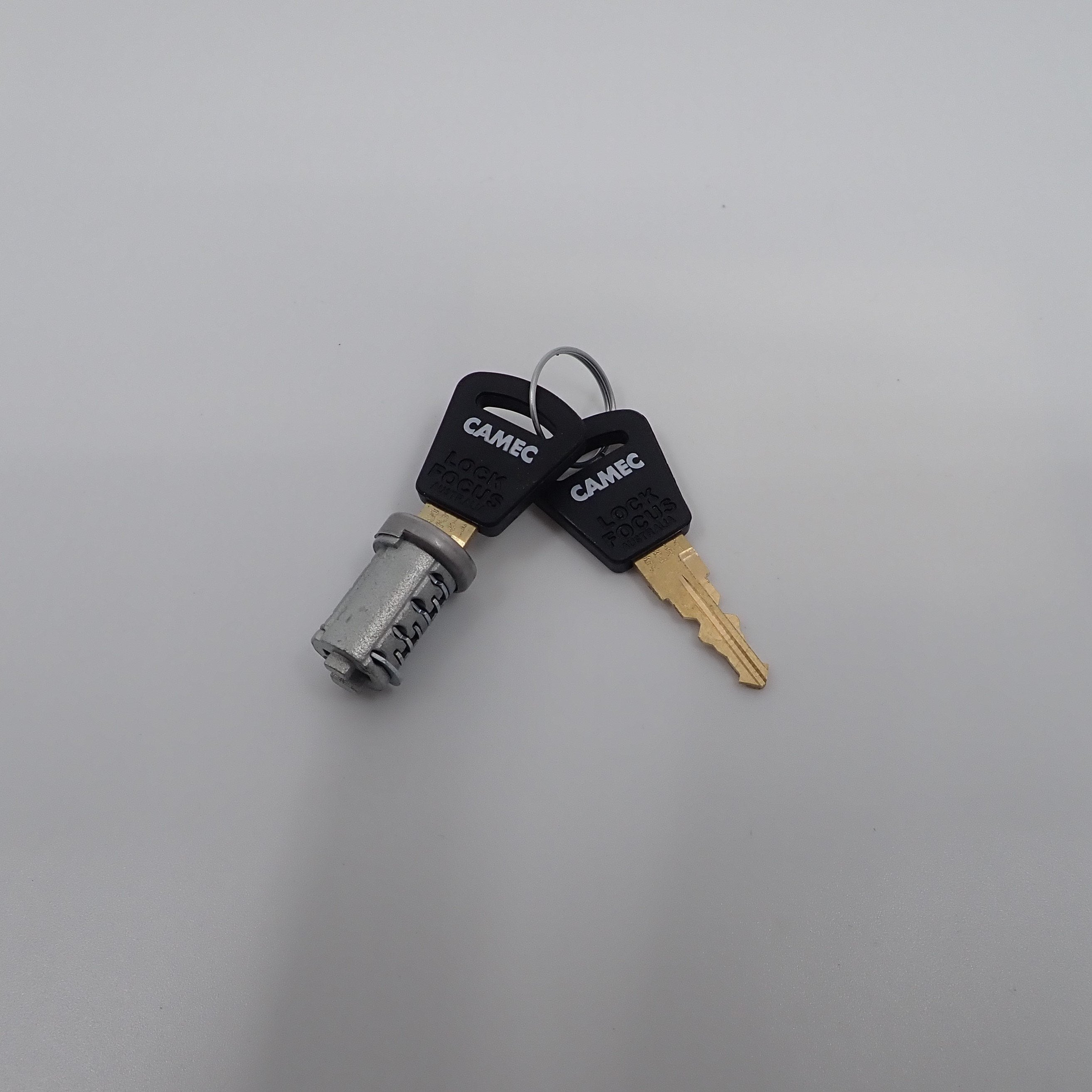

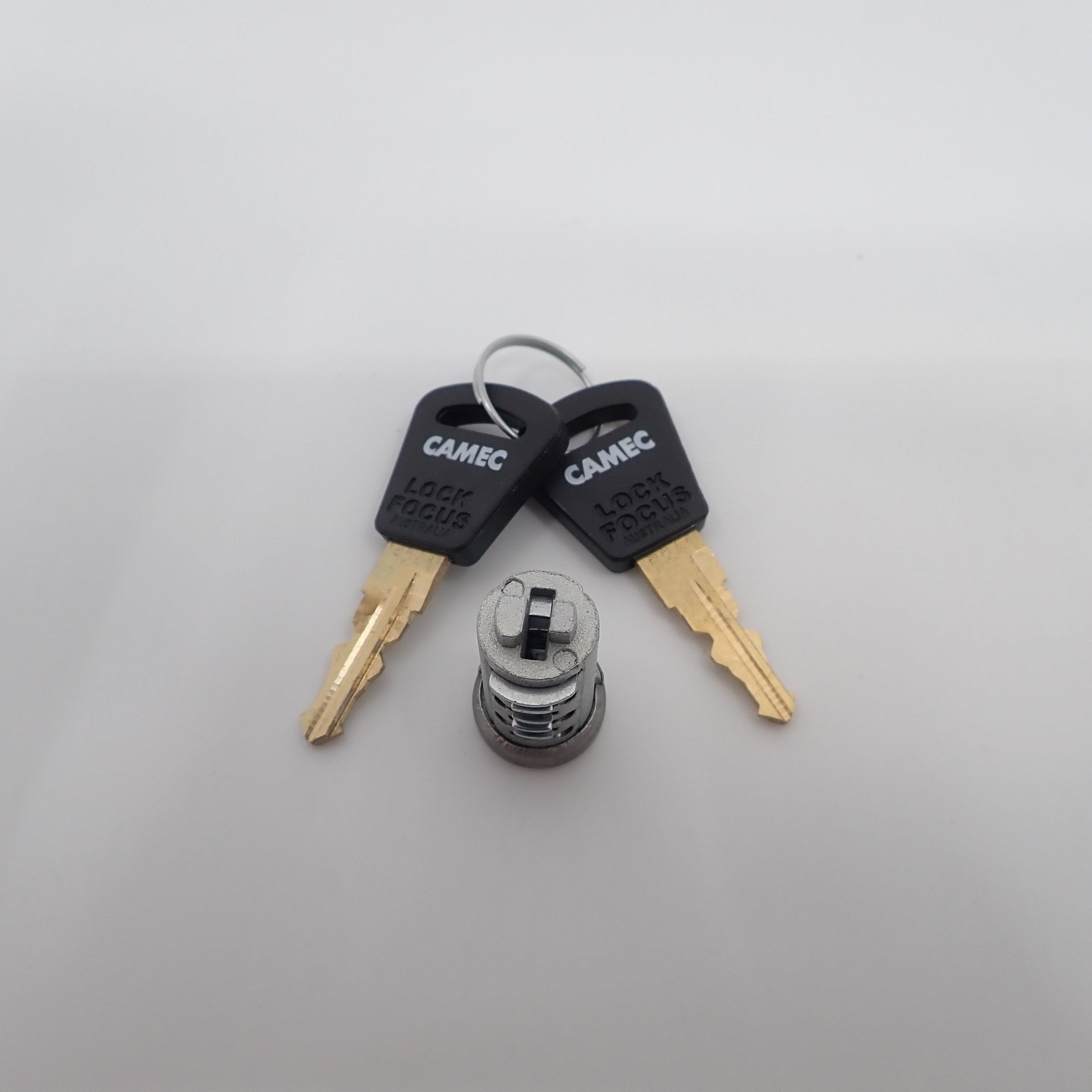

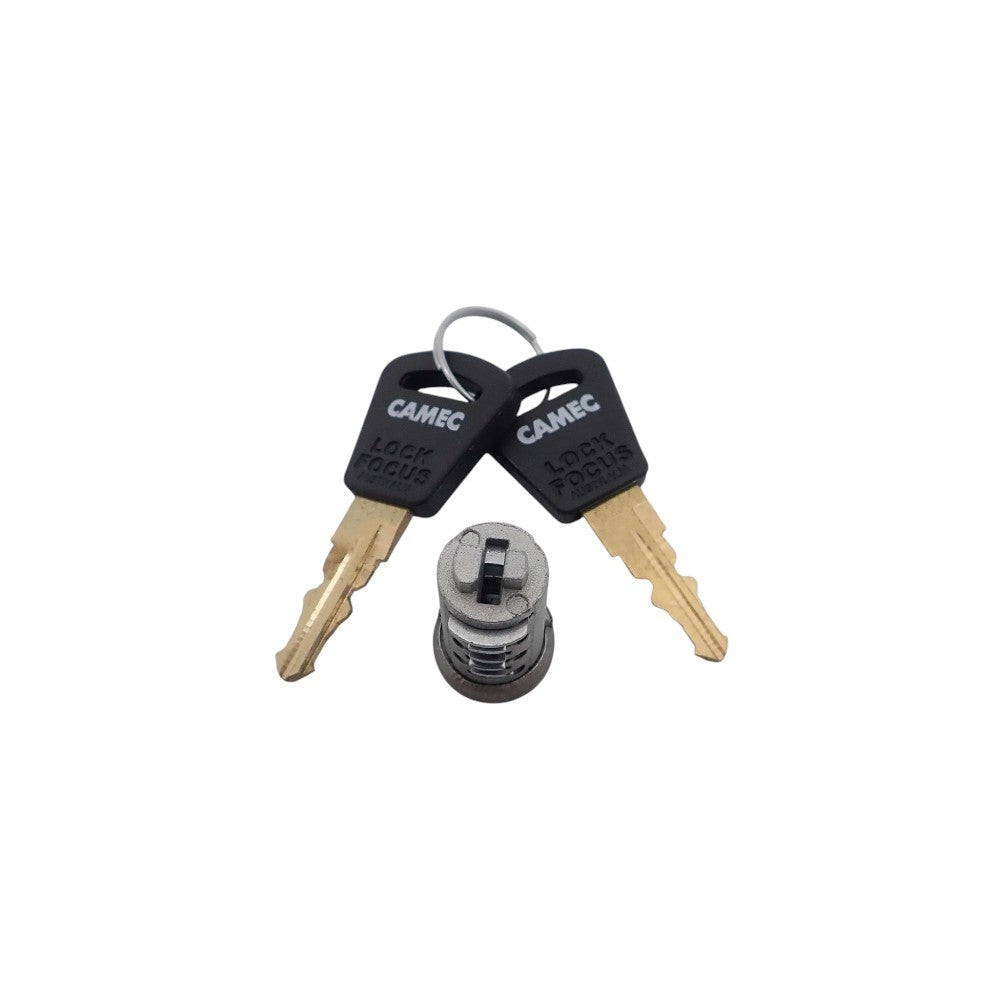

Camec Barrel and Key for Main Door

Camec Barrel and Key for Main Door

Compatible with CAMEC 3 point door locks.

Features

• Lock barrel and key designed for CAMEC 3 point locking systems.
• Easy removal of barrel by depressing the metal wafer and aligning square protrusions with housing gaps.
• Simple installation by inserting the key, aligning the barrel at an angle, and pushing until wafer secures the lock.
• Suitable for main doors using CAMEC 3 point locks.

Instructions for Removal

Remove the lock assembly from the door. Hold the handle open, then turn and pull the rear metal lock activator (cylinder). From the rear, depress the small metal wafer inside the lock while rotating it so the square protrusions align with housing gaps. Slide the lock barrel out of the front.

Instructions for Installation

Insert the key and turn the barrel to align the square protrusions with housing gaps. Insert the barrel at an angle so the wafer enters the housing first. Push the rest of the barrel in until the wafer pops out to secure the lock.
