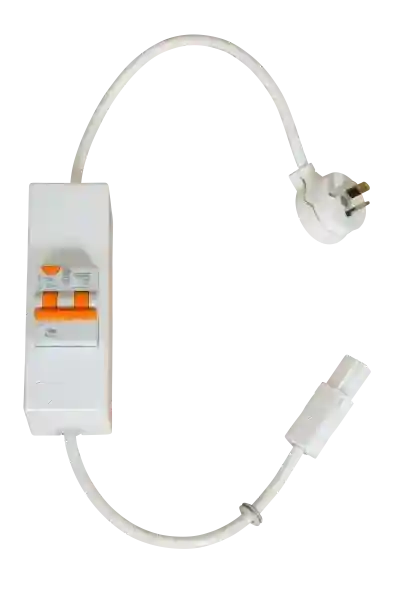

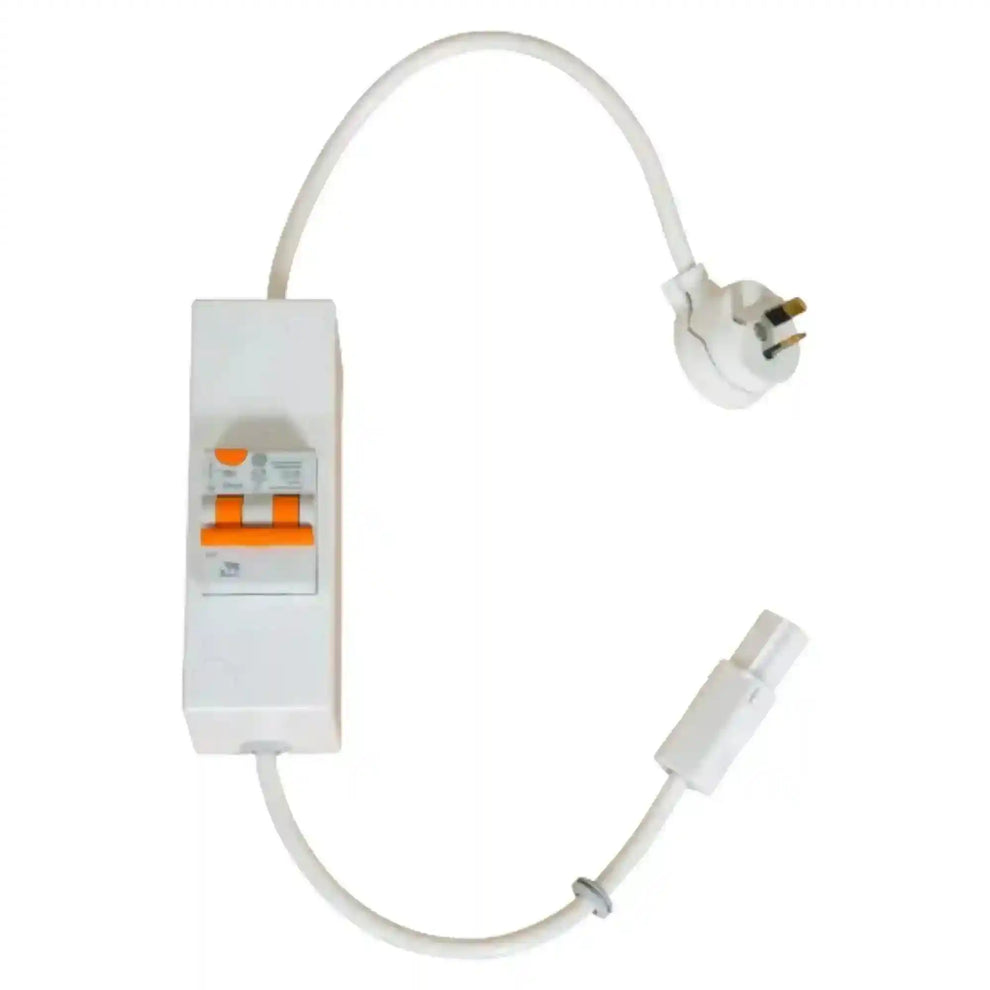

C Style to 3 Pin RCD CMS 230Vac Plug N Play

C Style to 3 Pin RCD CMS 230Vac Plug & Play (10A/30mA)

Model: CMS-RCD-3PIN

Note: This product does not fit Jayco "J" type connectors. Confirm compatibility before retrofitting.

Features

• Compatibility: Converts C Style connectors to 3 Pin RCD setup suitable for 230Vac systems.
• RCD Rating: 10 Amp, 30mA residual current device for safety compliance.
• DIY Installation: Designed for easy installation in caravans, motorhomes, 4WD canopies, and commercial vehicles.
• System Setup: Includes power inlet, 16A circuit breaker or RCD, and multiple power points with option for external outlets.
• Standards Compliance: Meets Australian/New Zealand safety standards: AS/NZS 3112, AS/NZS 61535.1, AS/NZS 3000.
• Power Points: Double pole switches; each requires 32mm recess depth; mounting blocks available if needed.
• Cables: Sealed male and female ends (25mm x 16mm); require extra length for fitting and replacement; include security clips to prevent accidental disconnection.
• System Expansion: Allows branching with double adapters to create additional circuits for battery chargers, hot water systems, air conditioning, or separate power lines.
• Maximum Load: Supports up to 10 double or 12 single power points per 16A circuit.

Usage & Installation Notes

• The CMS power inlet accepts 230V supply via a standard 15A extension lead.
• Power flows from the inlet through a 16A circuit breaker/RCD to multiple power points connected in series.
• Last power point in a circuit uses inlet only, leaving outlet free for future connection or external use.
• Designed for vehicle walls; cables can be installed before or after wall sheeting but must pass through frame members if retrofitting.
• Lights and light switches are typically 12V and not included in this range.
