572-003
Couldn't load pickup availability

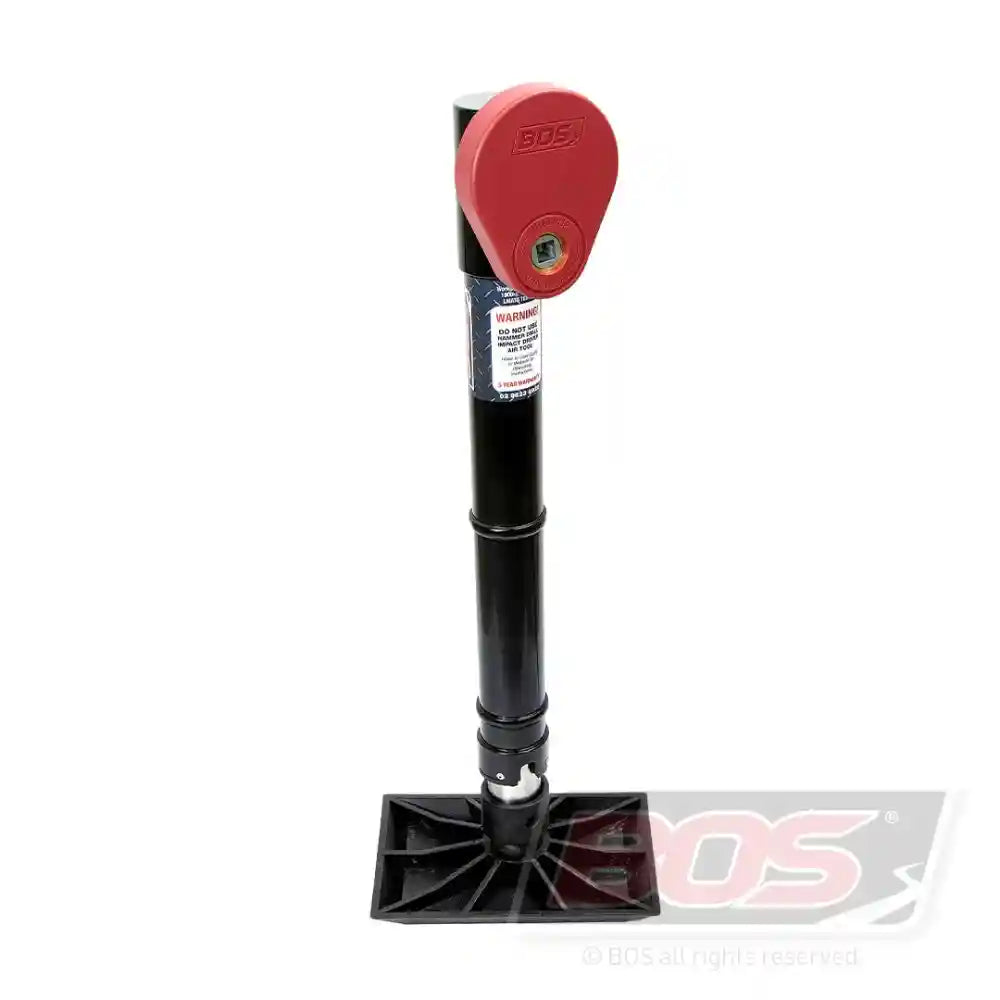

BOS 50mm 2-Rib Sidewinder Unit with Base Plate
The BOS 50mm 2-Rib Sidewinder Jockey Unit features a side-mounted drive shaft for easy access on caravans and camper trailers where top access is restricted by toolboxes, jerry cans, or gas bottle holders. This design enables side operation using a cordless drill driver or manual crank.

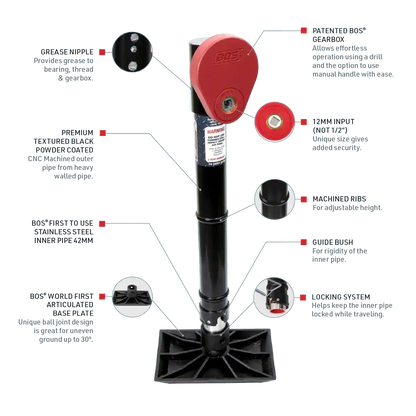

Features
- Side-Winding Gearbox: 12mm side-mounted drive shaft allows clear access on narrow drawbars.
- 2-Rib Machined Grooves: Provides positive grip and prevents slippage during operation.
- Marine-Grade Stainless Steel Core: 42mm inner pipe offers strength and corrosion resistance.
- Articulating Base Plate: Ball-and-socket design adjusts up to 30° for use on uneven or sloping surfaces.
- Dual Drive Operation: Compatible with standard 18V+ cordless drills and includes a manual crank handle.
Specifications
- Outer Diameter: 50mm tube
- Vertical Travel: 400mm
- Load Capacity: Rated for 1,800kg static load
- Drive Shaft Diameter: 12mm
- Finish: Black industrial textured powder coat
Included in Kit
- BOS 2-Rib 50mm Sidewinder Unit (Part 572-003)
- Articulated Base Plate (Part 010-062)
- 120mm Pipe Extension
- 12mm Drill Drive Bit (Part 020-007)
- Manual Crank Handle
- Safety Quick-Release Pins
- BOS Heavy-Duty Travel Strap
Important Note: We do not recommend using an Cordless Impact Driver as it may damage the Gearbox.
-
