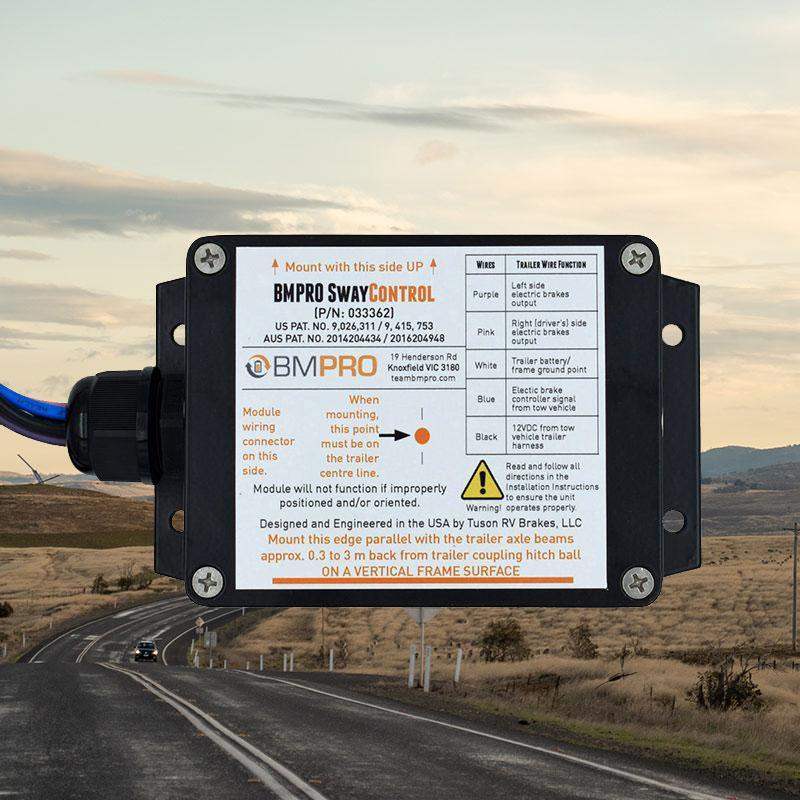

BMPRO Swaycontrol Proactive Electronic Stability Control and Loom

BMPRO SwayControl automatically corrects caravan trailer sway helping you in an emergency to stop the sway becoming a crash.

Tow Safely with Proactive Electronic Swaycontrol.
BMPRO Sway Control is an electronic stability control that can automatically stabilise a caravan/trailer in the event of excessive sway. It automatically corrects caravan sway which can be caused by changing road conditions, driver error, lateral winds, a passing truck and possible poor loading.

SwayControl distinguishes between safe manoeuvring and dangerous trailer sway and does not require driver intervention.
With independent control of left and right-hand side trailer brakes, and continual closed loop feedback, the SwayControl quickly and effectively applies the necessary braking force, to the side of the trailer where it is needed to correct trailer sway.

Electronic sway control is mounted on the underside of the caravan/trailer chassis, wires directly to the trailer braking system and continuously monitors trailer yaw to detect sway. In the event that sway is detected the SwayControl automatically activates the trailer brakes to bring it under control.

Prewired to enable an easy installation.

Power 12V
Power Source: caravan / trailer house battery
Dimensions: 55 x 89 x 146 mm
Sleep mode: 30 min inactivity.
Wake up mode: brake controller signal.
Auto System Disable (ASD): yes.
ASD redetect: 5 seconds.
Off-road deactivate: Automatic
Braking level adjustment: Automatic
Braking levels: Independent Left/Right
Maintenance: Nil
Warranty: 2 years
Status indicator: LED

• Automatically adjusts braking level.
• Applies braking force on the left and right brakes independently.
• Works with single to four axle caravans/trailers
• Features an automatic system disabling in off-road conditions.
• Is fully sealed, waterproof and 100% tested for reliability.
• Wiring looming included for the easy installation.

We recommend using the BMPRO Swaycontrol Mount to mount the unit (see our other Listings)
