SWAYCONTROL with LOOM
Couldn't load pickup availability

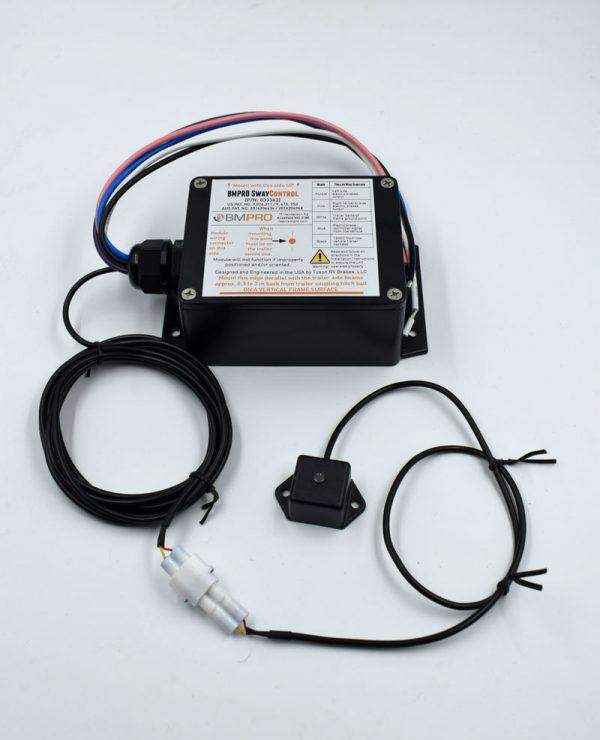

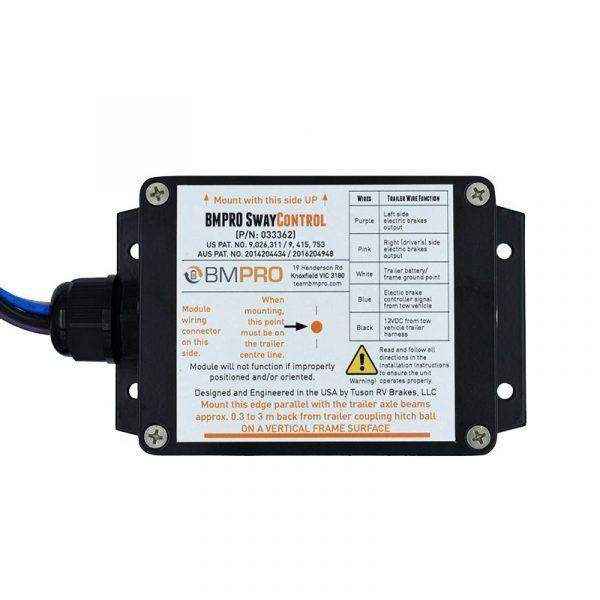

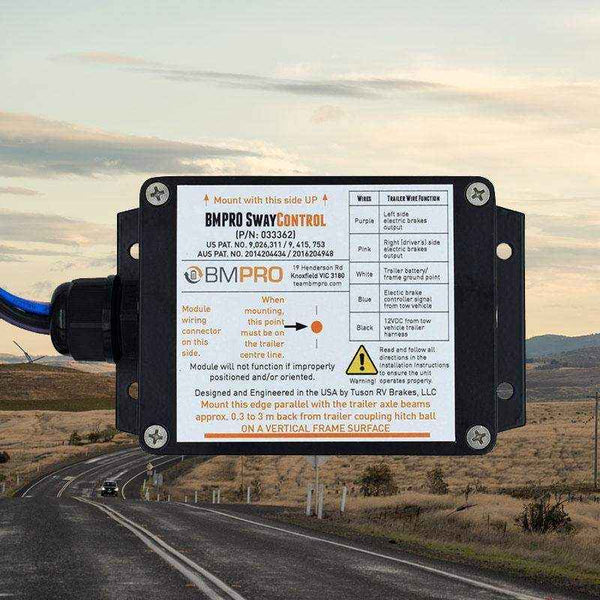

BMPRO SwayControl Proactive Electronic Stability Control and Loom
Proactive electronic stability control
The BMPRO SwayControl system reduces caravan and trailer sway automatically, enhancing safety by correcting sway without driver input. It monitors trailer yaw and applies braking force independently to either side of the trailer brakes.
Mounted under the caravan or trailer chassis, the unit connects to the trailer braking system. It detects sway caused by road conditions, wind, passing vehicles, driver errors, or uneven loading and applies brakes to stabilise the trailer.

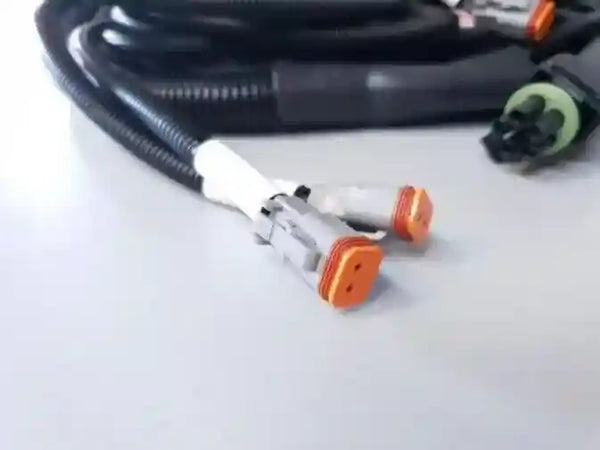

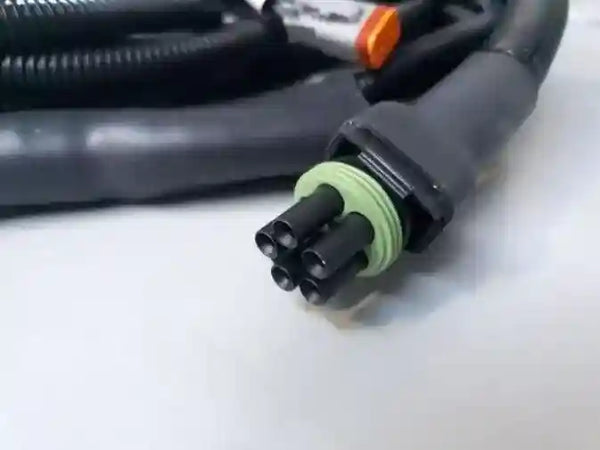

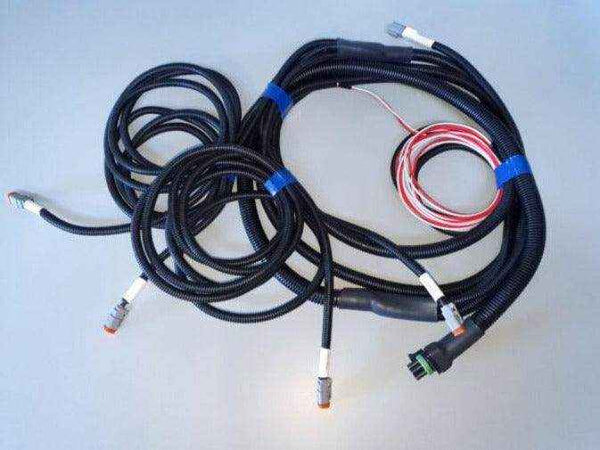

The system includes a prewired loom for simple installation.
Features
- Independent braking: Applies brake force only to the side experiencing sway for precise control.
- Axle compatibility: Works with single, tandem, triple, and four-axle caravans and trailers.
- Off-road mode: Automatically disables on sustained rough terrain.
- Power supply: Operates on 12V–15V DC from caravan or trailer battery, minimum 50Ah recommended.
- Waterproof design: Fully sealed unit with a 2-year warranty.
- Wiring loom included: Prewired loom for easy setup; compatible with BMPRO Trailsafe emergency breakaway system.
- Sleep mode: Low-power mode activates after 30 minutes without activity.
- Automatic wake-up: Reactivates via brake controller signals.
- Activation threshold: Engages when lateral forces reach 0.4 G.
Specifications
- Dimensions: 55 x 89 x 146 mm
- Power: 12V DC
- Sleep mode current: 35mA
- Auto System Disable (ASD) with 5-second redetection
- Independent left and right brake control
- Status indicator: LED
- No maintenance required
Installation tip: Use the BMPRO SwayControl Mount (sold separately) for secure fitting.
-
