BMPRO Odysseylink104 for Odyssey and Smartconnect Systems

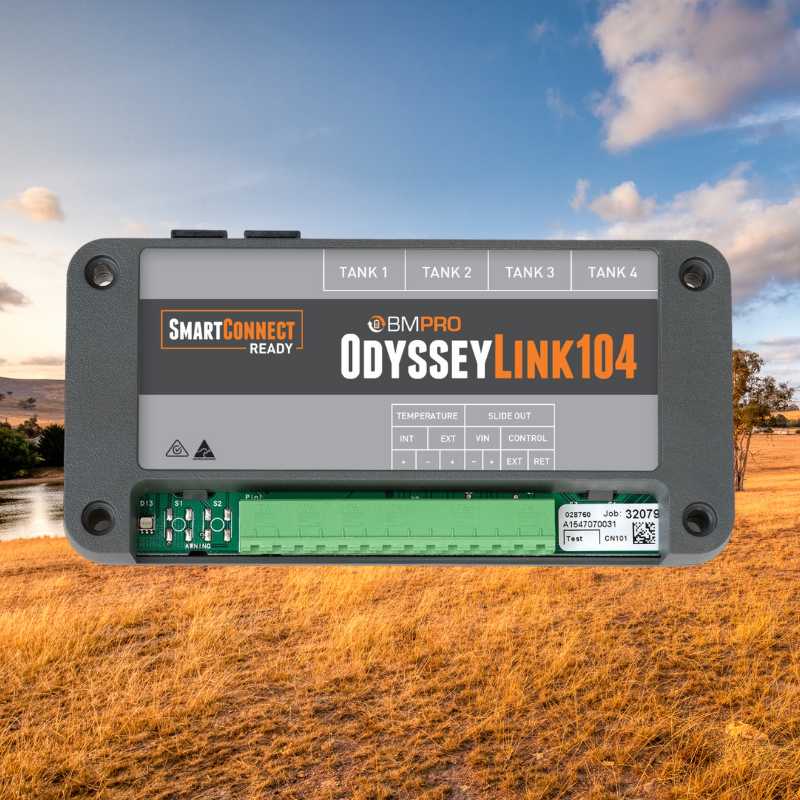

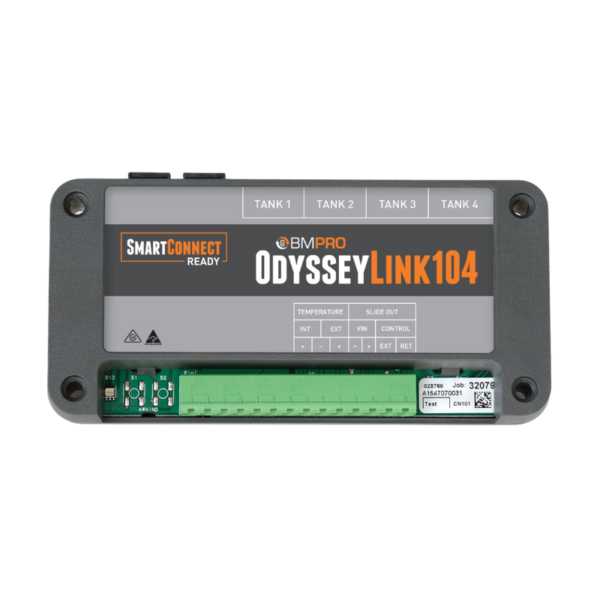

OdysseyLink104 is a communication centre for smart RV systems, such as Odyssey and SmartConnect.

It communicates wirelessly or via CAN bus connecting your vehicle’s power management system to the monitor or the app.

OdysseyLink104 comes supplied as a standard from 2022 on RV models of major Australian manufacturers, and allows you to use Odyssey app on your smartphone.

Add OdysseyLink104 to RVView2 or Trek3 to build up a complete Odyssey system.

OdysseyLink104 is also SmartConnect ready, allowing to connect multiple Bluetooth sensors, such as SmartSense, SmartTemp, or SmartPressure.

The owners of caravans with Odyssey onboard can upgrade their existing OdysseyLink to a Odyssey Link 104 for SmartConnect compatibility and enjoy a new level of integration.

Input Voltage: 8-15V DC
Battery Drain: 21mA
Ambient Temperature: 0-50C
Cable Length: 0.5m
Dimensions: 155 x 75 x 23 mm

• SmartConnect ready – allows connecting Bluetooth sensors
• Integral part of Odyssey Smart RV system
• Includes data cable to connect to BatteryPlus35

Retrofitting OdysseyLink104

• Unplug existing OydsseyLink from BP35 Power Management System
• Plug new OydessyLink104 node into BP35 transformer Power Management System

1. At the bottom of the Odyssey screen, you will see triangle, circle and square symbols.
2. Press the square symbol. The screen size will appear smaller.
3. Then press the clear all in the top right corner. This will close the app and you will see the home screen of the car and caravan.
4. On the right-hand side of the home screen you will see either a gear cog or a white circle with 6 white dots in it, this is Settings menu.
5. Please click on this to open.
6. Select Apps and Notifications
7. Select Odyssey app
8. Select Storage
9. Select Clear Data
10. Select OK
11. Then in the left-hand top corner, tap the back arrow ← once.
12. Select permissions.
13. Turn off Locations, then turn back on.
14. Return to Home Screen (Touch the square at the bottom of the tablet, then press clear all in the top right of the minimised screen)
15. On the home screen select Odyssey App.
16. Once the app is open, it will ask you to ‘Allow Locations’ select Allow.
17. Connection options will appear ‘Scan or Close’ click Scan.
18. While App is scanning you have 30sec to pair device with OydessyLink104 node.
19. On the left-hand side of the OydessyLink104, there is a small black round button. Press the black button to side of node withing 30sec scanning time.
20. An OD**** number appear OydessyLink104on the app.
21. Select the OD**** number .
22. Allow App to sync.

App will now be synced and ready for use.
Retrofitting OdysseyLink is required for SmartConnect compatibility.

Requires BMPRO BatteryPlus35 power management systems revision 12B and above
