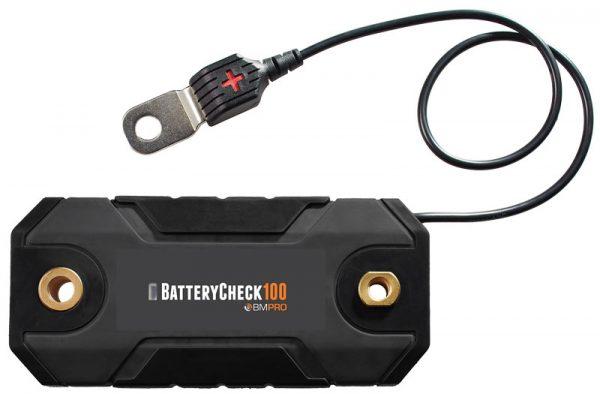

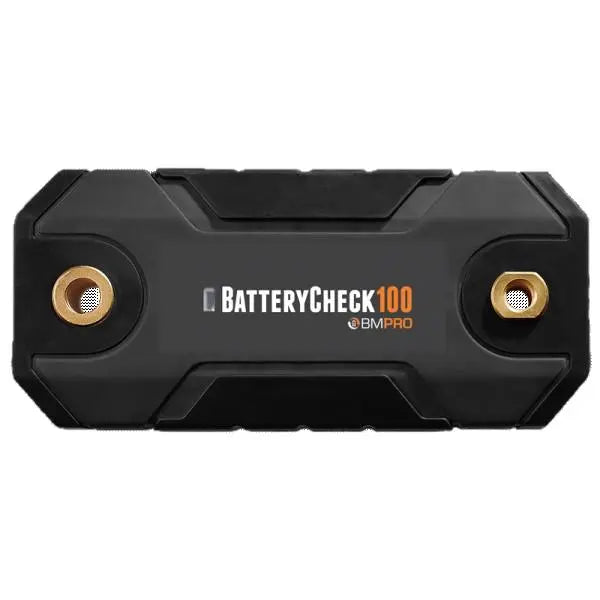

BMPRO Batterycheck100 Wireless Battery Monitor 100amp for Lead Acid AGM Batteries

• Communicates with smartphones via Bluetooth
• Free BatteryCheck100+PRO app via Google Play and iTunes App Store
• Easy DIY installation
• For batteries in parallel (7Ah-800Ah battery bank)
• Internal shunt capacity – 100A peak, 80A continuous
• Compatible with any deep cycle 12V lead acid, AGM and gel battery
• Australian designed and made

WIRELESSLY MONITOR YOUR 12V BATTERY WITH Your Smart Phone

With BatteryCheck100, you can really understand your Van’s secondary battery when on the road. A simple measurement of voltage is not enough to really comprehend fully what is happening with your deep cycle battery. Whether you are using your 12V power or charging the battery, you want to be 100% sure your battery is in good health and has enough power for your adventure.

BATTERY Features MONITORED are:

• Voltage and Temperature
• Charge/Discharge Current
• State of Charge (SoC)
• State of Health (SoH)
• Estimated Discharge Time Remaining

BMPRO’s BatteryCheck100 is a 12V battery monitor with the latest Bluetooth technology built in, so you can monitor your battery via smartphone. The new and improved app is highly intuitive and easy to use. Download BatteryCheck100+PRO app from Google Play store or App Store and set monitoring in minutes.

BatteryCheck100 is compatible with a range of standard 12V deep cycle batteries. It provides real time battery management infomation that allows you to monitor remaining battery energy via a easy to use app.

Specially designed for recreational vehicles’ deep cycle batteries, BatteryCheck100 allows monitoring of up to 100A maximum charge or discharge.

BatteryCheck100 is not suitable with engine cranking applications of any type and is not intended for under vehicle bonnet use.

Input Voltage Range 8V to 16V
Voltage Measurement Resolution 20mV
Continuous Current Rating 80A
Current Measurement Range 100A
Current Measurement Resolution 20mA
Overload Protection (100ms w/out damage) 300A
Monitored Battery Capacity 7Ah to 800Ah
Temperature Measurement Range -20 °C to 70 °C (at Battery Terminal)
Temperature Measurement Resolution 1 °C
Dimensions 140mm x 65mm x 18.6mm
Weight 520g

Super handy to check your battery status from your phone

For Lithium Batteries look to the BATTERYCHECKPro

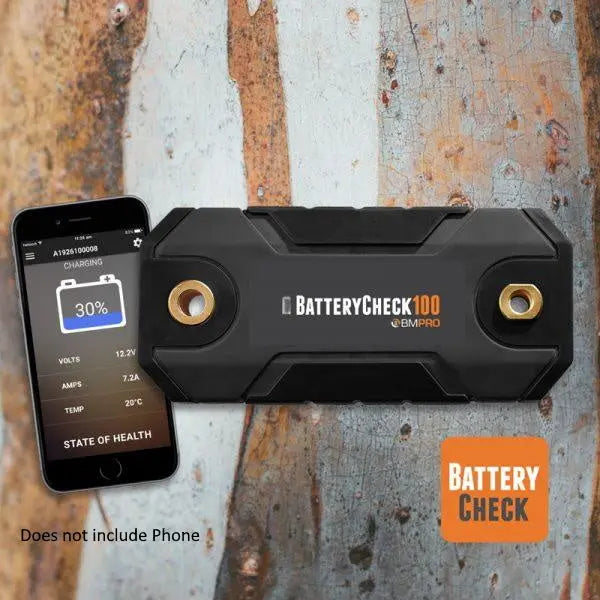

**Phone not included
