Black Jack Trailer Jack Mini – Fits Standard 50mm Jockey Wheel Clamp

Australia’s only electric jack compatible with the standard 50mm jockey wheel clamp. Simply attach it to your existing jockey wheel fitting, connect the Andersen plug, and you're ready to use.

The Black Jack Mini features a 50mm diameter shaft designed to fit directly into a standard 50mm jockey wheel clamp.

It offers three mounting notch options for positioning to suit lift and storage needs. The Black Jack Mini can be permanently mounted - but you must make sure it has adequate clearance when fully retracted.

With a 1,000 kg lifting capacity, the Black Jack Mini handles the ball weight of most Australian caravans and trailers.

Manufactured and assembled in Cleveland, Brisbane, supporting local jobs and businesses.

Features

• 1,000 kg lifting capacity, suitable for most Australian caravans and trailers
• 50mm diameter post fits standard Australian jockey wheel clamps
• 450mm stroke lifts the caravan clear of the tow hitch
• Three mounting lugs for flexible installation
• Built-in level indicator for easy caravan levelling after unhitching
• Tough powder-coated finish
• Pre-wired with a 1.4m Andersen plug cable
• Emergency crank handle included
• Built-in night light for low light operation

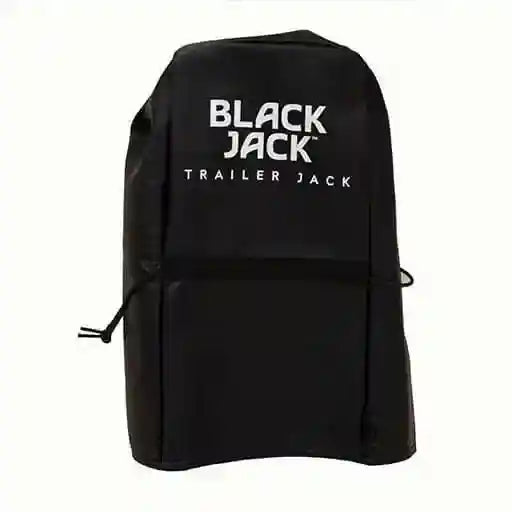

• All-weather cover included to protect from dirt and moisture
• Total weight of 8.5 kg

Kit Includes

• Black Jack Mini electric jack
• All-weather cover
• Soft ground foot pad
• manual handle

Usage Tips

• Maximise ground clearance: Wind the jack fully up. For additional clearance, mount on the lowest hole on the A-frame.
• Secure the foot: Ensure the footpad or optional folding leg is fully raised and locked before driving.
• Tighten the clamp: Confirm the 50mm jockey wheel clamp is secured firmly to prevent movement or loosening from vibration.
