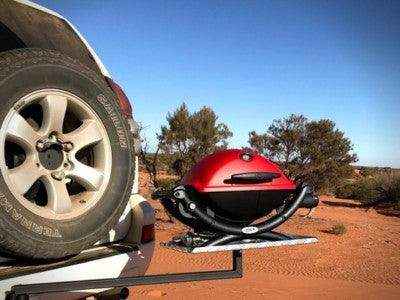

BBQArm Kit Black 850mm Arm Silver Regular Size Tray for Weber Baby Q or Similar

BBQArm Kit Black 850mm Arm Silver Tray for Weber Baby Q and Similar BBQs

The original Swing Arm BBQ Table designed for caravan and outdoor use.

This BBQArm Kit includes a black 850mm arm and a regular size silver alloy tray suitable for Weber Baby Q models and similar BBQs. Designed and made in Australia, the BBQArm mounts securely to your caravan drawbar or rear bar, providing a durable, space-saving outdoor cooking surface. The arm swings away when not in use, helping to keep your area clear. A new Tow-Hitch mount option allows use on your vehicle hitch for added versatility.

Features

• Arm: 850mm black powder-coated galvanised steel
• Tray: Silver alloy chequer-plate aluminium, 560mm x 360mm (fits Weber Baby Q Q2000 size)
• Mount: Universal no-drill drawbar mount fits 50mm (2") caravan drawbars or rear bumpers
• Optional vehicle Tow-Hitch mount for use on tow-vehicles
• Kit weight approximately 7.5kg
• Rated to carry up to 30kg when properly installed
• Laser-cut, powder-coated galvanised steel for durability and rust resistance

Installation Instructions

Universal Drawbar Mount (Caravan):

• Loosen bolts on the mount and position on drawbar
• Tighten bolts securely using a shifting spanner
• Loosen clamp handle, insert arm, tighten handle
• Insert tray into arm tube and secure with locking screw/wing-nut

Tow-Hitch Mount (Tow Vehicle):

• Slide mount into tow-hitch receiver and secure with locking pin
• Loosen clamp handle, insert arm, tighten clamp handle
• Place tray into arm tube and tighten locking screw/wing-nut

BBQArm Mate Accessory:

• Attaches to existing BBQArm by clamping around lower arm shaft
• Allows adding a second tray or replacement tray
• Can also clamp onto jockey wheel shaft if no existing BBQArm

About BBQArm

• Designed for easy, stable, and portable outdoor BBQ tables
• Simple swing-away design minimizes space use when not in use
• Built to withstand Australian outdoor conditions
• Lightweight and easy to install without drilling
