BBQArm Kit Black 850mm Arm Silver Regular Size Tray for Weber Baby Q or Similar

The ORIGINAL Swing Arm BBQ Table

Black 850mm Arm, Regular size Alloy Silver Tray.

BBQARM is the must-have caravan and travel accessory for your outdoor barbecues. Australian designed and built on the Gold Coast, this space-saving innovation simply mounts to your caravan drawbar or rear bar to create a sturdy 'out of the way' place for your BBQ. Swing it away when not using. With our new TOW-HITCH mount, use your BBQARM anywhere you travel with or without your caravan.

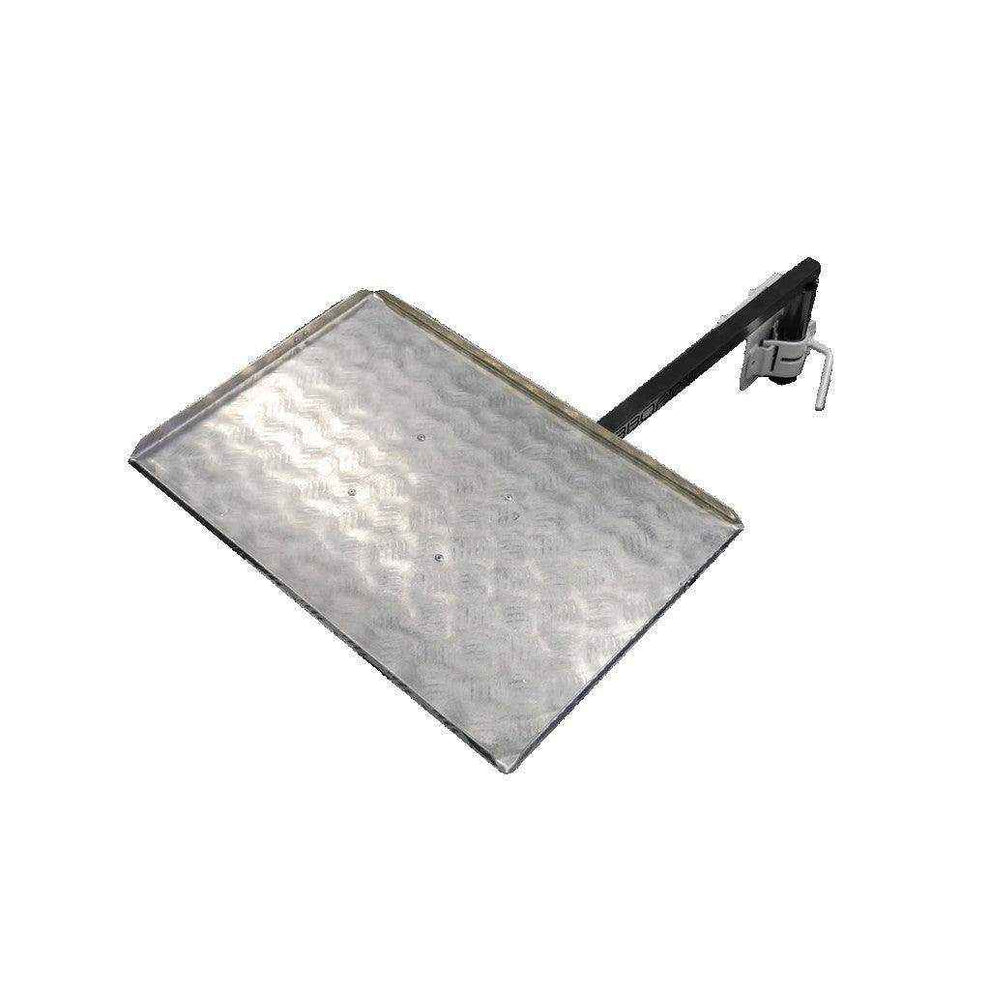

Kit has 3 parts:
1) ARM black powder-coated galvanised steel is available in 3 lengths, this one is:

• 850mm

2) TRAY chequer-plate aluminium with upturned edges, regular size:

• 560mm x 360mm (suits Weber Baby Q Q2000)
• Silver Alloy Finish

3) Universal Drawbar Mount(no-drill)

• fits 50mm/2"drawbar or rear bumber on caravan

BBQARM Kit for Caravan Or Trailer 850mm Arm

• Laser-cut and powder-coated galvanised steel tube 850mm
• BQARM Kits include mount, arm and tray
• Overall kit weighs approx. 7.5kg.
• When correctly fitted is rated to carry up to 30kg

WHAT IS BBQARM?

• BBQARM swing-away table for camp bbqs
• Take your bbq wherever you go
• Solid and simple design with few moving parts
• BBQARM is built to withstand Australia's harsh climate extremes
• With van space at a premium and weight and load a real issue for caravaners, BBQARM is light weight and portable.

Installation Instructions

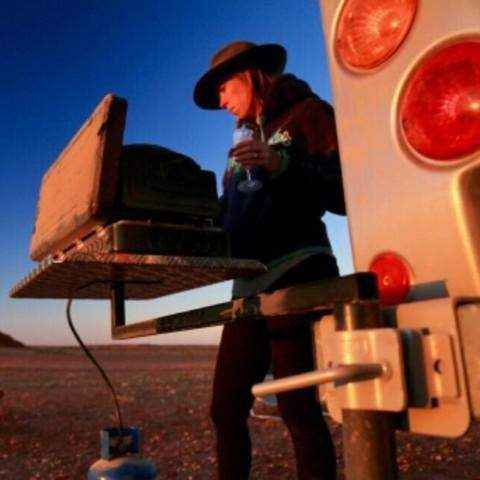

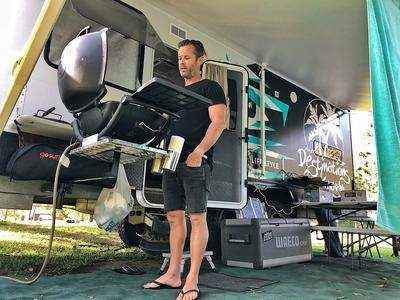

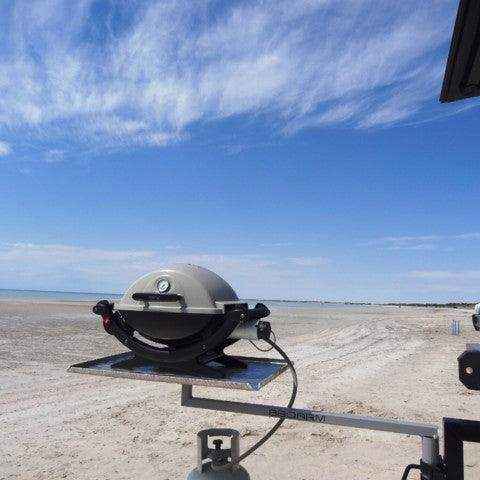

BBQARM with Universal Drawbar Mount for Caravan

• Loosen off the two bolts on the Universal Drawbar Mount
• Place the mount into position on your drawbar.
• Using a shifting spanner, tighten the bolts to secure it in place
• Unwind the handle to loosen the clamp at the front
• Place the arm into position and tighten handle
• Place the tray into the square tube end of arm
• Tighten the locking screw/wing-nut to reduce any movement

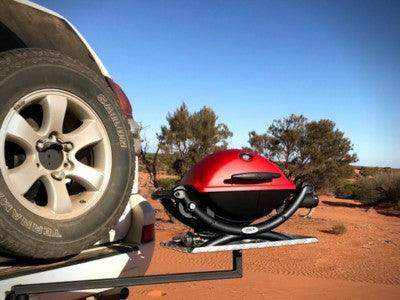

BBQARM with Vehicle Tow-Hitch mount for tow-vehicle

• Slide mount into your tow-hitch receiver.
• Slide in you locking pin
• Unwind the handle to loosen the clamp at the front
• Place the arm into position and tighten handle
• Place the tray into the square tube end of arm
• Tighten the locking screw/wing-nut to reduce any movement

BBQARM MATE

• Designed to connect to your existing BBQARM
• Undo the bolt at the front of the clamp
• Wrap the clamp around the lower shaft/round tube section of your existing BBQARM arm and tighten bolt all the way. Tighten with shifter but allow your arm to swivel (so not too tight).
• Place the tray on to the end of your arm.
• Tighten the wing-bolt to secure your tray
• If you do not have an existing BBQARM you can attach this product to the shaft of your jockey wheel
