BQA850-TRAYLGE

BBQArm Kit Black 850mm Arm Silver Large Size Tray for Ziggy or Most Bbqs

We currently have 2 in stock.
2 items left

The ORIGINAL Swing Arm BBQ Table

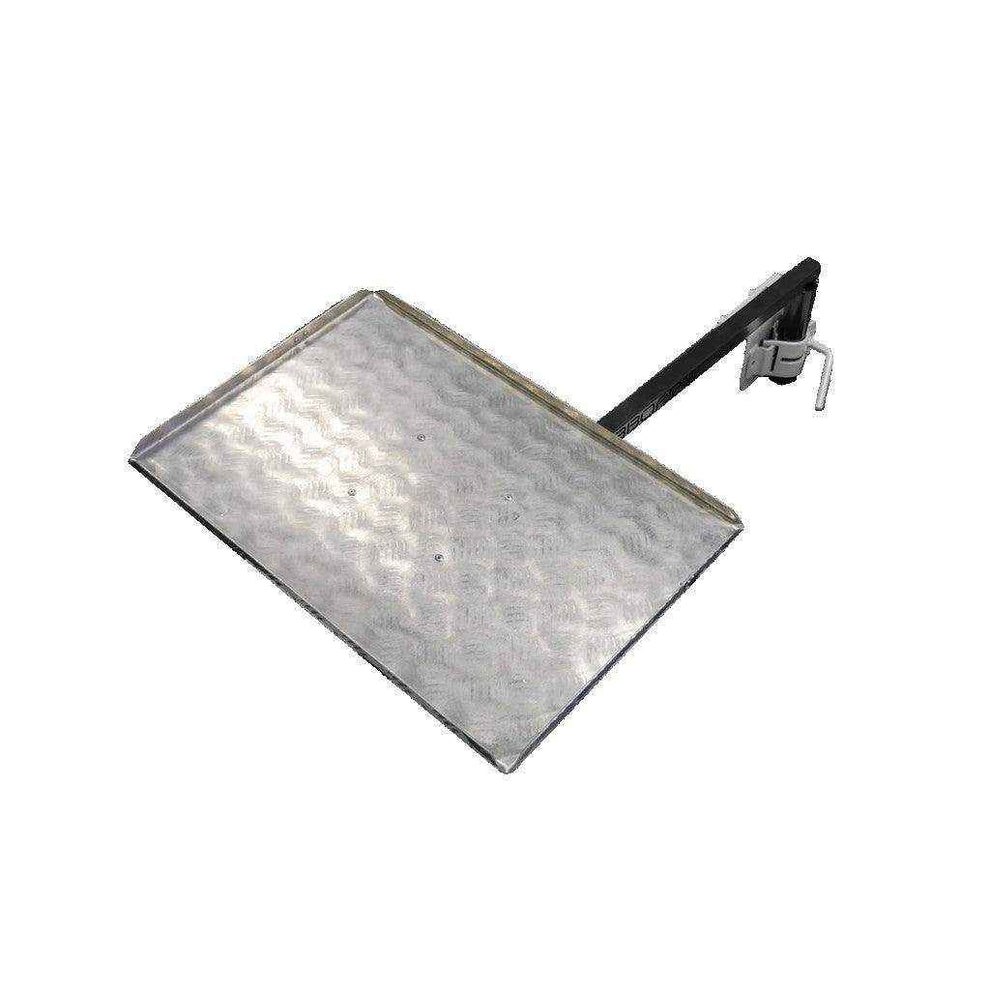

Black 850mm Arm, Large size Alloy Silver Tray.

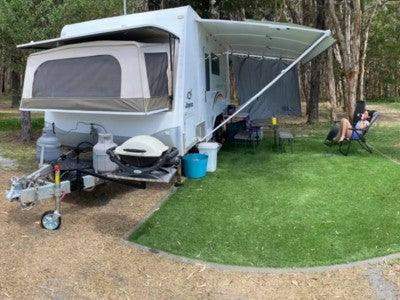

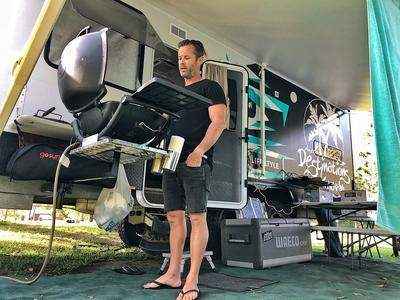

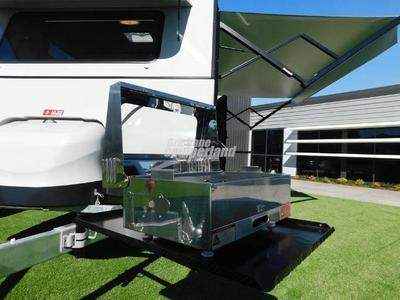

BBQARM is the must-have caravan and travel accessory for your outdoor barbecues. Australian designed and built on the Gold Coast, this space-saving innovation simply mounts to your caravan drawbar or rear bar to create a sturdy 'out of the way' place for your BBQ. Swing it away when not using. With our new TOW-HITCH mount, use your BBQARM anywhere you travel with or without your caravan.

Kit has 3 parts:
1) ARM black powder-coated galvanised steel is available in 3 lengths, this one is:

  • 850mm

2) TRAY chequer-plate aluminium with upturned edges, regular size:

  • Large 700mm x 500mm (suits Ziggy and most other portable barbecues)
  • Silver Alloy Finish

3) Universal Drawbar Mount(no-drill)

  • fits 50mm/2"drawbar or rear bumber on caravan

BBQARM Kit for Caravan Or Trailer 850mm Arm

  • Laser-cut and powder-coated galvanised steel tube 850mm
  • BQARM Kits include mount, arm and tray
  • Overall kit weighs approx. 7.5kg.
  • When correctly fitted is rated to carry up to 30kg

WHAT IS BBQARM?

  • BBQARM swing-away table for camp bbqs
  • Take your bbq wherever you go
  • Solid and simple design with few moving parts
  • BBQARM is built to withstand Australia's harsh climate extremes
  • With van space at a premium and weight and load a real issue for caravaners, BBQARM is light weight and portable.

Installation Instructions

BBQARM with Universal Drawbar Mount for Caravan

  • Loosen off the two bolts on the Universal Drawbar Mount
  • Place the mount into position on your drawbar.
  • Using a shifting spanner, tighten the bolts to secure it in place
  • Unwind the handle to loosen the clamp at the front
  • Place the arm into position and tighten handle
  • Place the tray into the square tube end of arm
  • Tighten the locking screw/wing-nut to reduce any movement

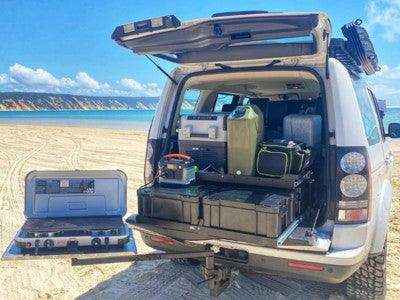

BBQARM with Vehicle Tow-Hitch mount for tow-vehicle

  • Slide mount into your tow-hitch receiver.
  • Slide in you locking pin
  • Unwind the handle to loosen the clamp at the front
  • Place the arm into position and tighten handle
  • Place the tray into the square tube end of arm
  • Tighten the locking screw/wing-nut to reduce any movement

BBQARM MATE

  • Designed to connect to your existing BBQARM
  • Undo the bolt at the front of the clamp
  • Wrap the clamp around the lower shaft/round tube section of your existing BBQARM arm and tighten bolt all the way. Tighten with shifter but allow your arm to swivel (so not too tight).
  • Place the tray on to the end of your arm.
  • Tighten the wing-bolt to secure your tray
  • If you do not have an existing BBQARM you can attach this product to the shaft of your jockey wheel
To find shipping costs - add items to the cart - open up shopping cart - at bottom of cart, enter postcode and shipping cost will display
