Autoterm Diesel Heater Push Control Short Thread

The AUTOTERM Push Control is a compact and user-friendly device designed for operating AUTOTERM heaters with various operation modes and features, depending on the specific heater model. It comes together with a control module and wire to connect to the heater.

IP67-grade specification and a Stainless-Steel body, it is waterproof and durable even in the harshest weather conditions.

With its easy-to-operate design, managing your Autoterm heaters has never been simpler.

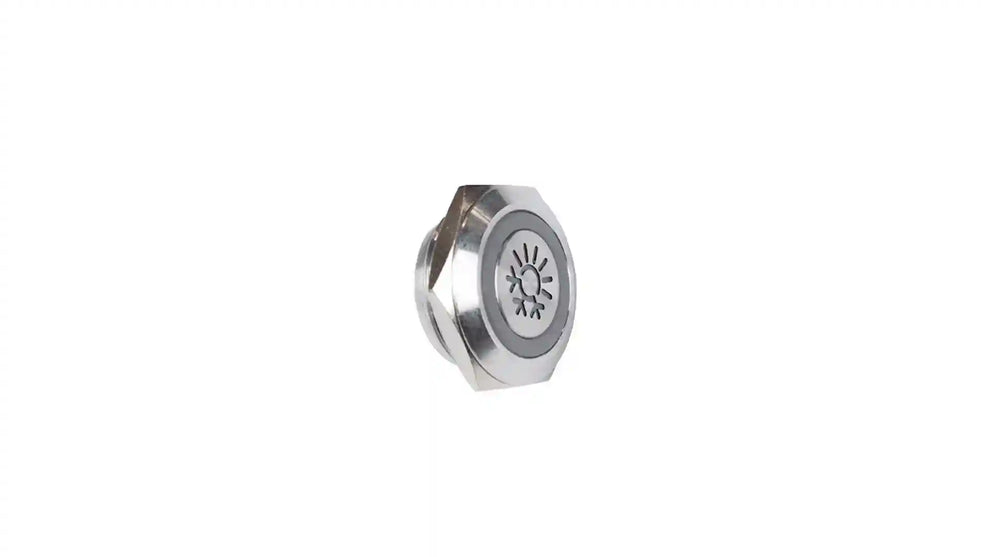

This Push Button has a 6mm long thread and molex connector but there is also a version with a 12mm deep thread and push connector.

Heating modes for Air heaters
POWER MODE:
The default heating mode for the Push Control button.
TEMPERATURE MODE (Works only with a connected external temperature sensor):
Designed to heat the space to the required temperature;
Heat output decreases as the difference between the desired temperature and the temperature in the space decreases.

Heating modes for Liquid heaters
PRE-HEATING MODE:
The heater will operate till the certain coolant temperature is reached then shuts off the combustion process. After the temperature of the coolant drops heating will start again.

Status display for Air Heating

• MIN= Blue
• LOW= Purple
• MED= Green
• High= Yellow
• MAX= RED
• Blinking RED - error code
• Blinking Red/Blue - switching off

Button surface diameter 25mm

Button thread diameter 22mm

AT13-0002-AF0
