Autoterm Diesel Heater Marine Fuel Kit Lines Complies with ISO7840

Autoterm Diesel Heater Marine Fuel Kit Lines Compliant with ISO 7840

The AUTOTERM Marine Fuel Kit is designed for use with AUTOTERM Air and AUTOTERM Flow heaters. It complies with ISO 7840 Marine Fuel A1 standards and is suitable for fuel lines in small craft with permanently installed fuel systems. This kit replaces the standard fuel kit supplied with AUTOTERM heaters.

Features

• Complies with ISO 7840 Marine Fuel A1 standard
• Compatible with AUTOTERM Air and AUTOTERM Flow diesel heaters
• Designed for small craft with fixed fuel systems

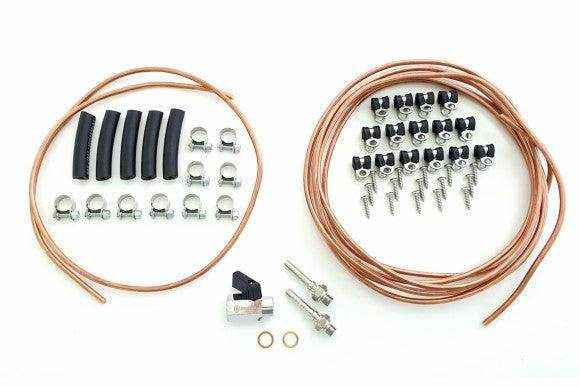

• Includes all components required for installation
• Fuel pipe clamps: 15 pcs P-type stainless steel, 5 mm ID
• Stainless steel screws: 15 pcs, Grade A2
• Stainless steel clamps: 10 pcs, 11-13 mm ID, Grade A2
• Rubber connection sleeves: 5 pcs, 5 mm ID, 13 mm OD, ISO 7840 certified
• Fittings: 2 pcs, 6 mm OD, AGR 1/8"
• Copper O-rings: 2 pcs, 10x14x1.5 mm
• Copper pipes: 4 m + 1 m lengths, 3 mm ID, 5 mm OD
• Ball valve: 1 pc, max pressure 10 bar, 1/8" SW21

Installation tip: This kit is intended to replace the standard fuel line kit of AUTOTERM heaters and should be installed according to heater manufacturer guidelines to ensure safety and compliance.
