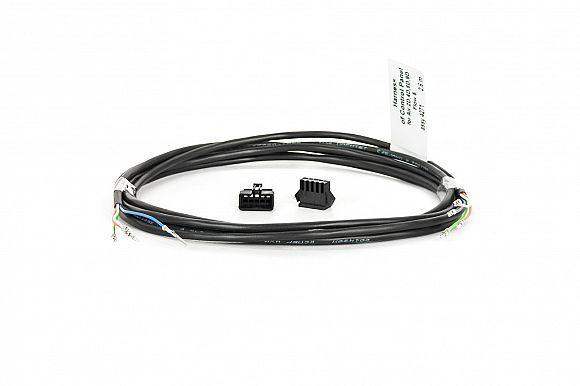

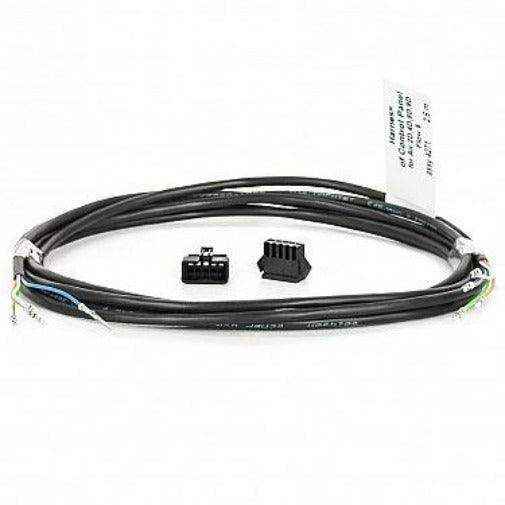

Extension wiring for control panels, assy.4269
This extension wiring is intended to increase distance between control panel and modem or to increase control panel wire length.
- 2.5m
Regular colour wiring for assembly (numbers are located on the ends of the plastic connectors): 1 = Red, 2 = Blue, 3 = White, 4 = Green, 5 = not used.
The extension wiring for control panels is suitable with following heaters:
Air heaters:
AUTOTERM Air 2D
AUTOTERM Air 4D
AUTOTERM Air 8D
AUTOTERM Air 9D
Liquid heaters:
AUTOTERM Flow 5
AUTOTERM Flow 14D (if equipped with control panel wire assy.4394)
Wiring can be connected with following control wires:
PU-5
PU-20 (12V and 24V)
PU-22
PU-27
Wiring can be connected with following modems:
Modem Qstart
Extension wiring can be connected with following control panel wiring:
Control panel wire (assy.2067) - Length 1.8 meters
Wiring for control panel (assy.2324) - Length 5 meters
Wiring for control panel (assy.3298) - Length 7 meters
Extension wiring for digital control panel (assy.2323) - Length 5 meters
-
