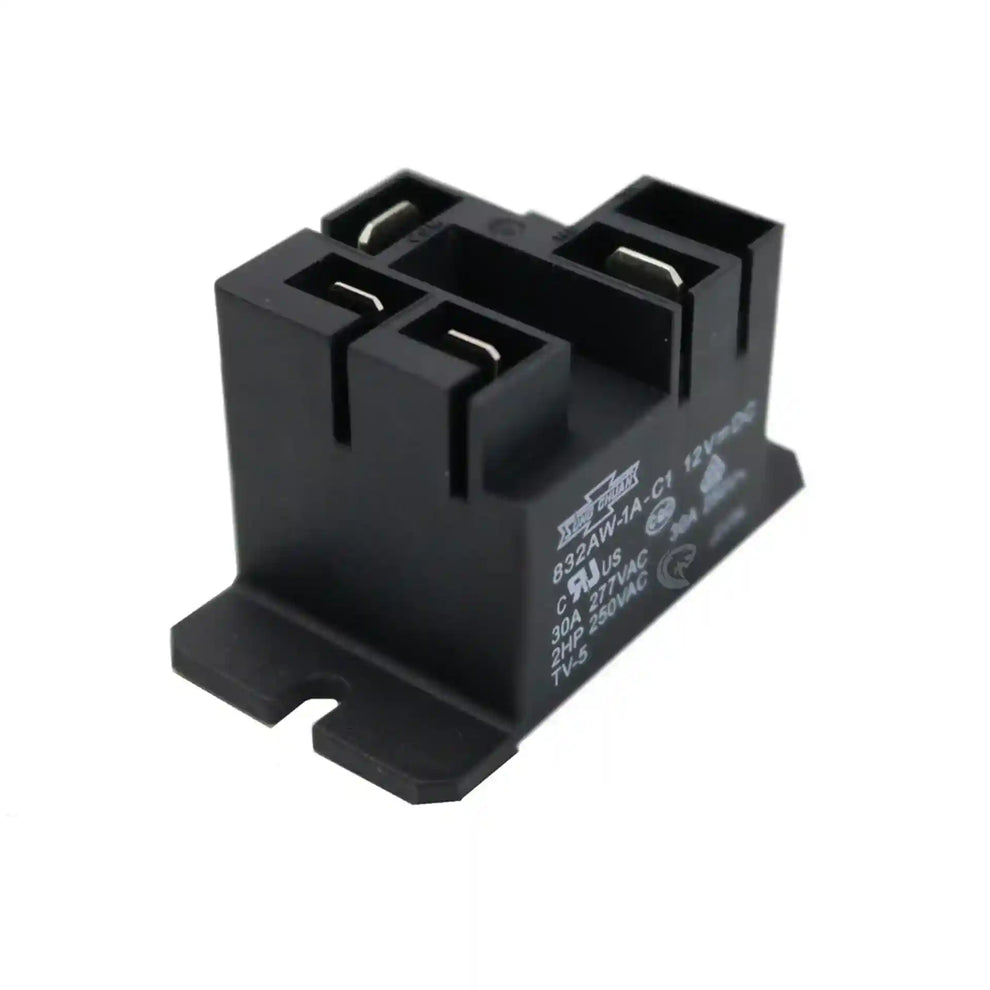

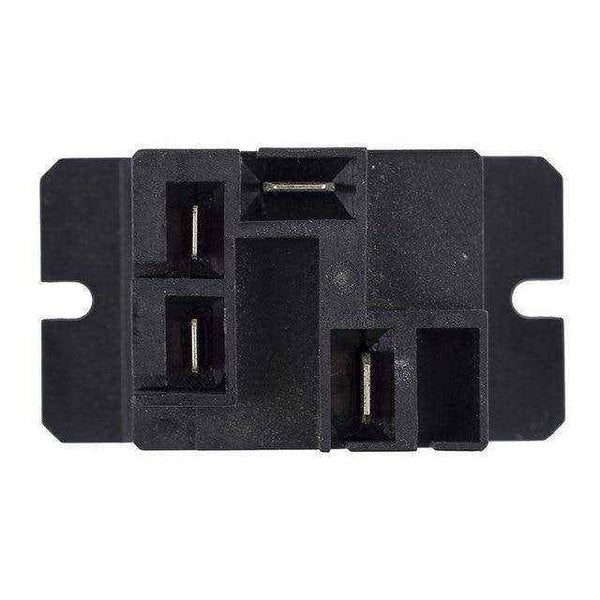

Atwood HWS Svc Relay for Atwood Water Heater

Atwood HWS Service Relay for Atwood Water Heater

Replacement relay service kit for Atwood Water Heater models: GCH6A-10E, GC6AA-10E, GC10A-4E, GCH10A-4E, G9-EXT, GE9-EXT, GEH9-EXT, G16-EXT, GE16-EXT, GEH16-EXT.

This relay controls power to the heating element. When the electric switch is turned on, a 12V DC signal is sent via the yellow wire to energise the relay. The relay then supplies 240V AC to the water heater element.

Features

• Compatible with multiple Atwood Water Heater models
• Replaces the original power relay for reliable heater operation
• Operates with 12V DC control voltage via yellow wire
• Supplies 240V AC power to heating element when activated
• Easy to install replacement part
• Part number: US-93849
