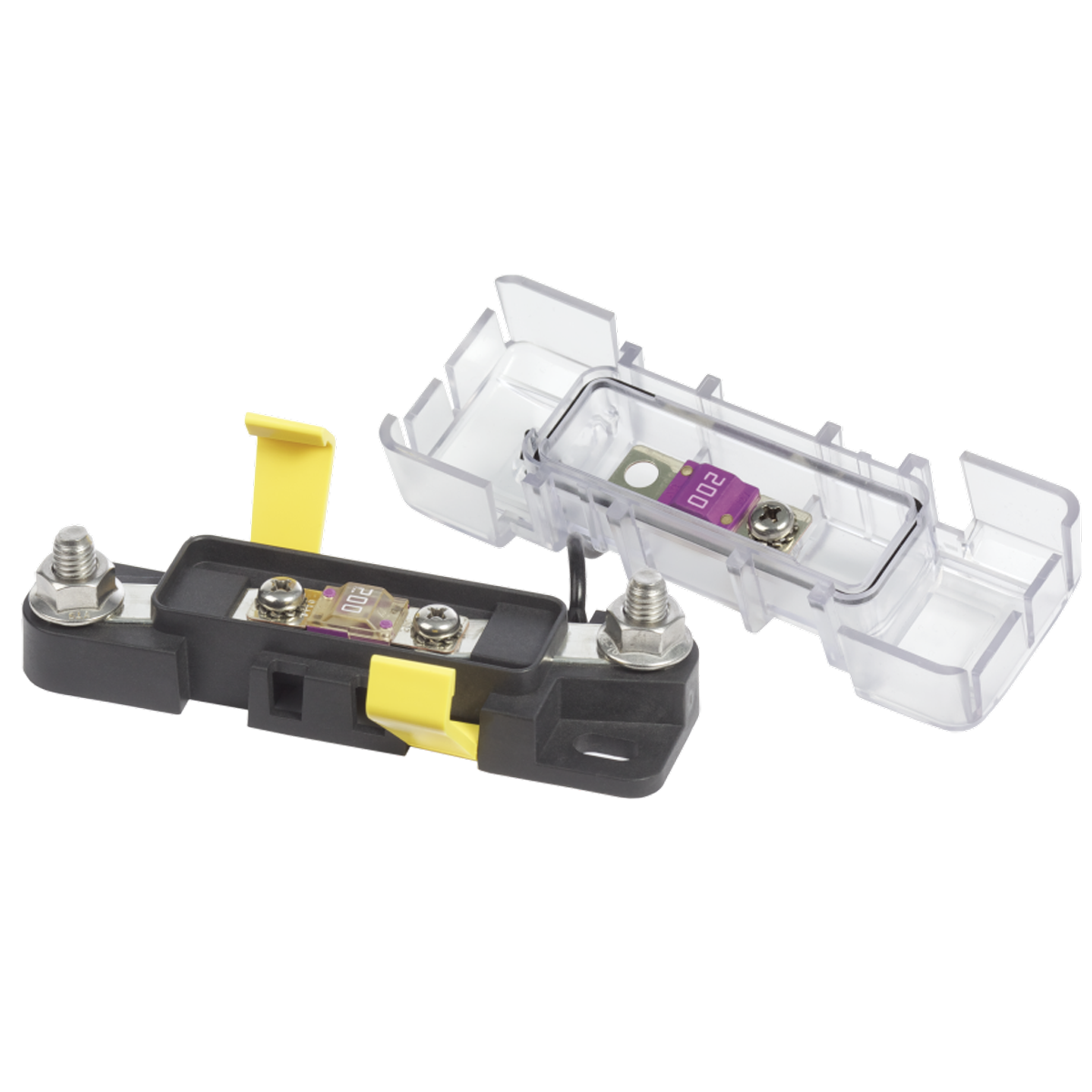

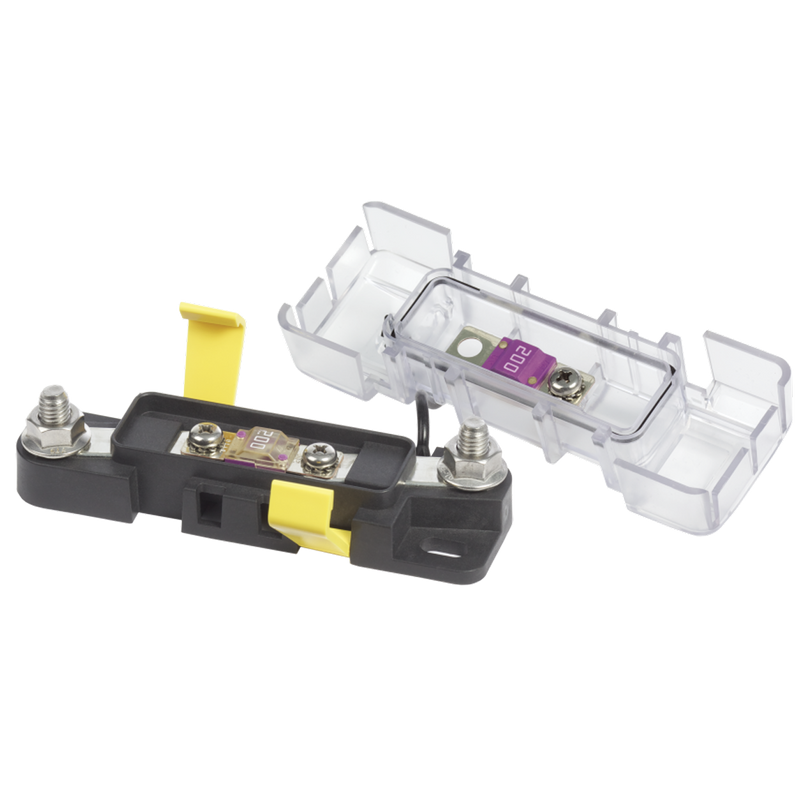

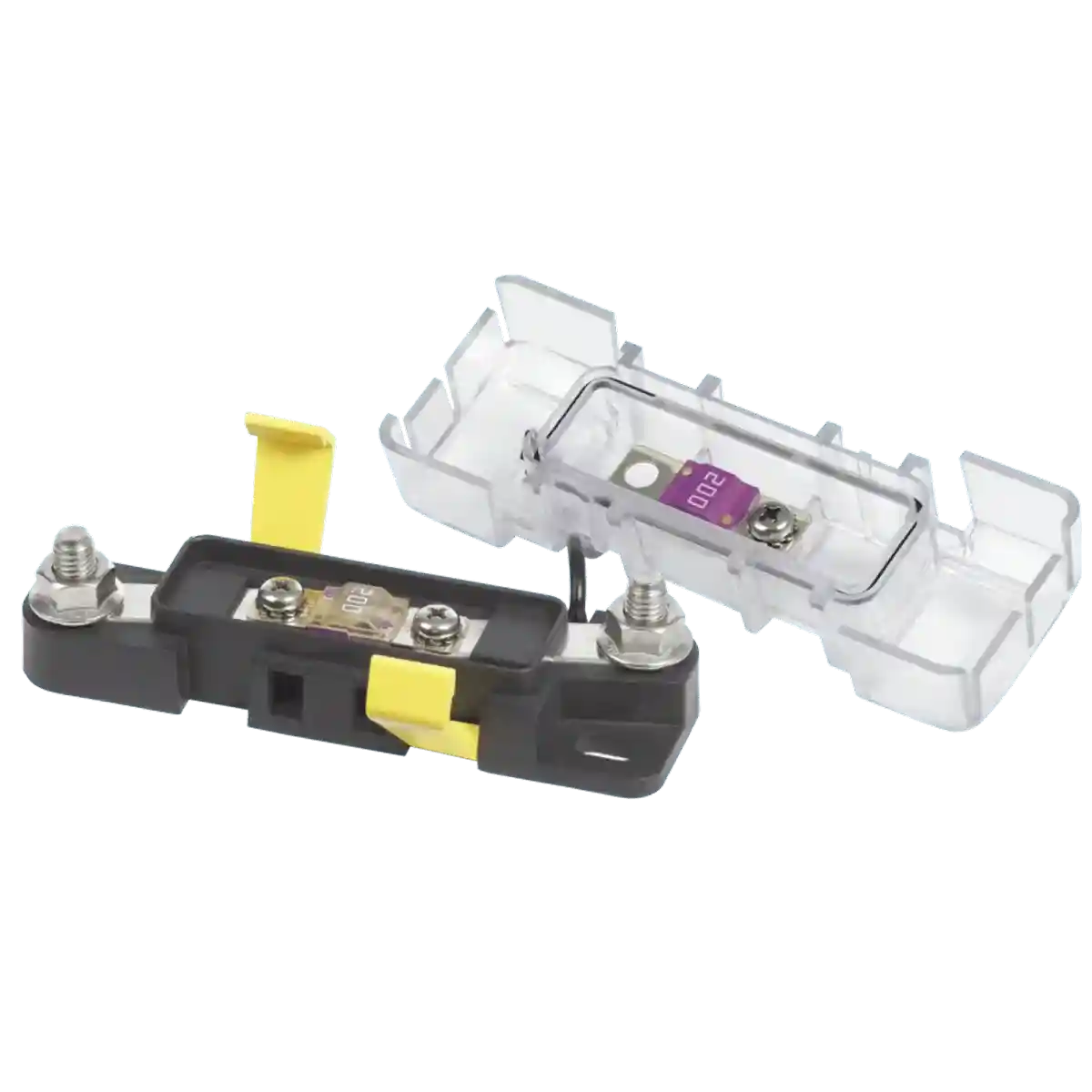

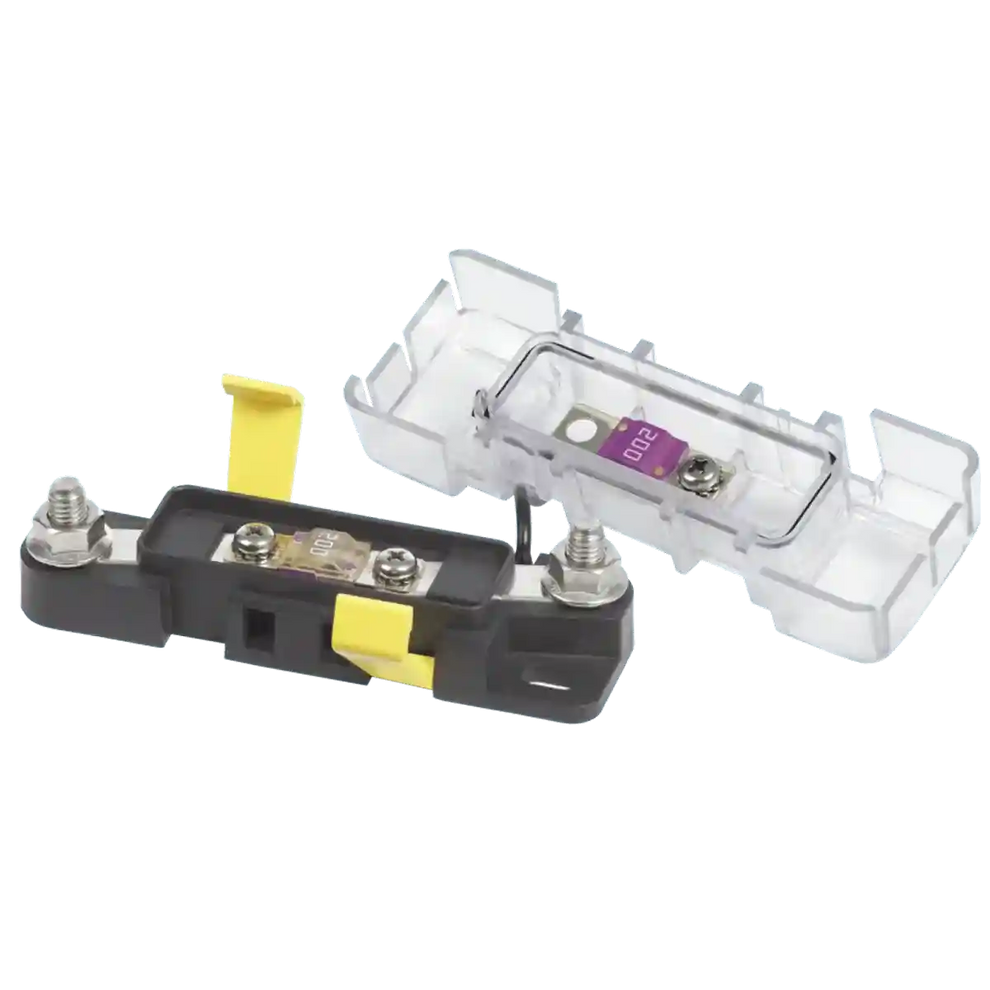

AMI or Midi Safety Fuse Block

Fuse Block Safety – Suit MIDI / AMI Fuse (200A)

The MIDI / AMI Safety Fuse Block is a compact and reliable solution for protecting high-current DC circuits in automotive, marine, caravan, and off-grid applications. Designed to suit MIDI (AMI) fuses, it provides secure mounting and safe electrical distribution in demanding environments.

With an ignition-protected design and sealed protective cover, this fuse block is ideal for use in both gasoline and diesel-powered systems, ensuring safety and durability even in harsh marine conditions.

Key Features

• Compatible with MIDI / AMI safety fuses
• Ignition protected for marine and automotive installations
• Sealed cover protects fuse from moisture and harsh environments
• Insulating cover meets ABYC/USCG safety requirements
• Multi-directional cable entry via cover breakouts
• Supports up to 200A with 4/0 cable
• Accepts standard or custom label inserts
• Compact and lightweight design

Specifications

• Maximum Current: 200 A
• Maximum Voltage: 32 V DC
• Terminal Screw Size: M5
• Terminal Stud Size: 5/16″ (M8)
• Recommended Screw Torque: 3.05 Nm
• Recommended Stud Torque: 13.56 Nm
• Weight: 0.07 kg

Additional Notes

• Fuses are sold separately
• Suitable for marine, automotive, caravan, and battery systems
• Designed for safe and organised high-current circuit protection

The MIDI Fuse Block Safety is an essential component for maintaining safe and efficient electrical systems, providing reliable protection and easy installation in a wide range of applications.
