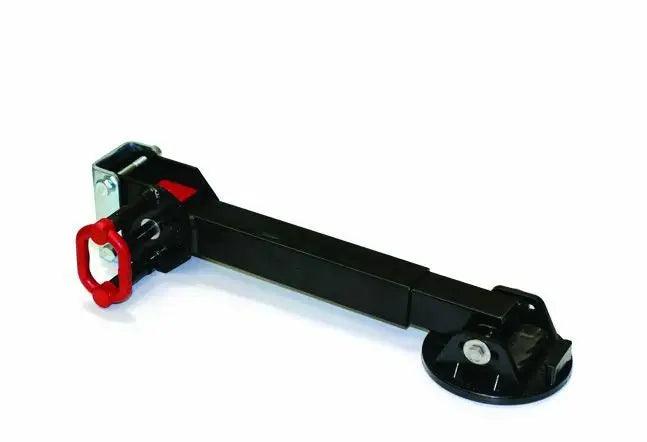

Alko Corner Steady 590mm Black with Big Foot

Corner Steadies are designed to stabilise the trailer or caravan when stationary

Key Features:

• Multi Positional
• Twin Locking Pin
• Positive Gear Drive
• Easy Grip Pin Release with Smooth Action

Spec:

• Genuine Alko Part 654859B
• Suitable for On-Road Vans as a Corner Support
• Includes Alko Bigfoot Support Pad for Extra Stability on Soft Ground
• 590 mm of Adjustable Height with the Leg Fully Extended
• 410mm Closed Length
• 440 mm Minimum Height when Leg is Dropped Down (Bigfoot Pad Included Per Measurement)
• Leg Will Operated in Various Angles Allowing for Various Height Options
• Stowed Height of Leg is 125 mm
• Surface finish- E Coat, (E-Coat is an electrically-applied paint coating)
• Mounting Bracket is Included for Chassis Installation.
• Bolt on Installation for Legs to Mounting Bracket for Quick Changeover (Two Bolt Hole 80 mm Centres – Leg Top Section Measures L 100 mm x W 65 mm)
• All Steel Construction with Zinc Plating for Durability
• 17-mm Standard Hex Wind Nut
• Features Smooth Grip Handle for Comfort

Corner steadies are not designed to lift the trailer or caravan off the ground.
