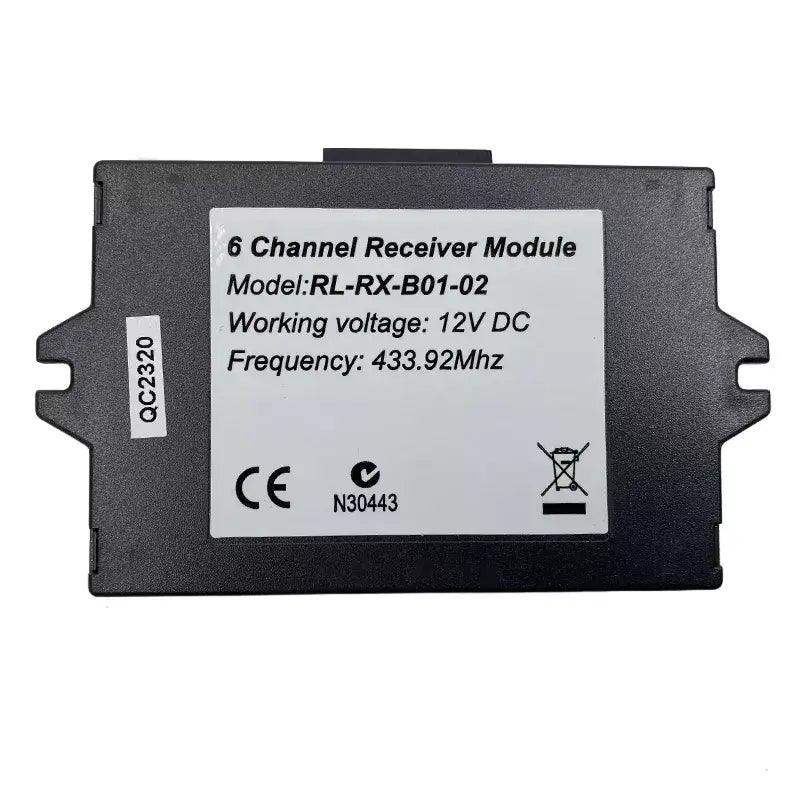

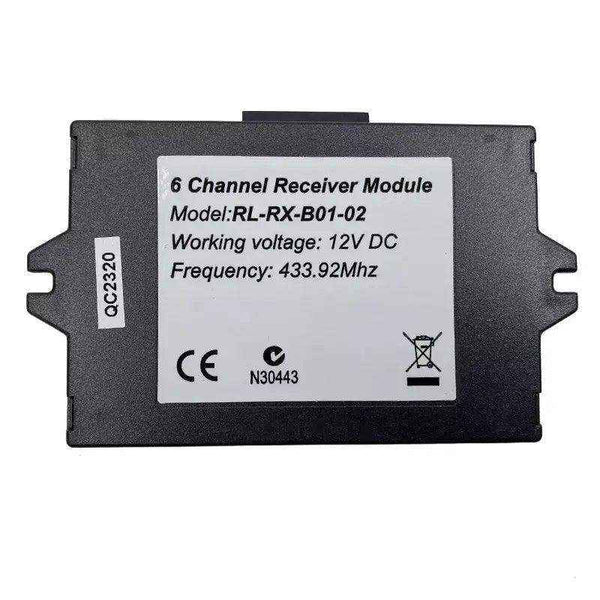

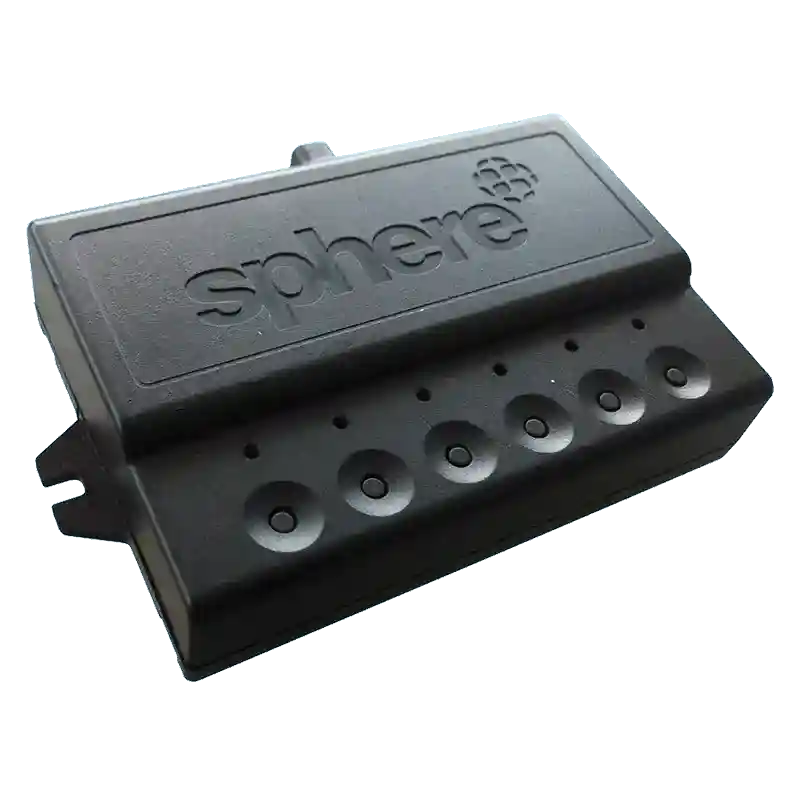

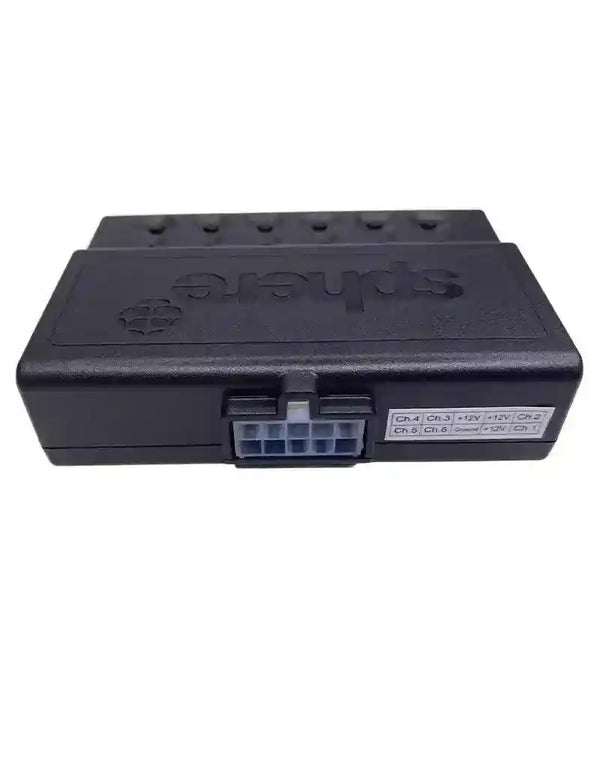

Sphere Wireless 6 Channel 12V Receiver

The 12V Sphere Wireless 6 Channel Receiver operates as a dependable wireless lighting control system for use in RVs and caravans. Users can manage six independent lighting zones through this system. The receiver features a design that allows for drill-free, wire-free installation on flat surfaces. A master OFF function enables users to shut down all connected lights with one switch.

Key Features:

• Controls six separate zones
• Drill-free, wire-free installation
• Multiple switches can be easily paired to operate different zones
• Master OFF function for turning off all zones simultaneously
• Compatible with Sphere wireless switches and remote control

Specifications:

• Model: 500-07300
• Operating Voltage: 12V
• Maximum Output Current: 15 Amps total (max 5 Amps per channel)
• Dimensions: 95mm x 70mm x 25mm
• Transmission Range: Up to 30 meters
• Working Frequency: 433.92 MHz
• CE approved

What's Included:

• 1 x Sphere 6 Channel Receiver Module
• 1 x Wiring Loom
• 2 x Screws for installation

The original Sphere Wireless Lighting System components are incompatible with Series 2.0 components, and vice versa.
