Cool-J 48VDC Inverter Air Conditioner Super Quiet Low Profile

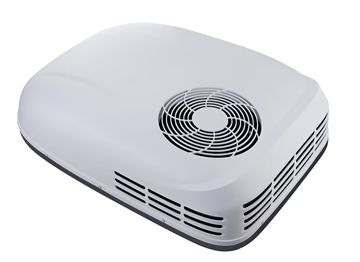

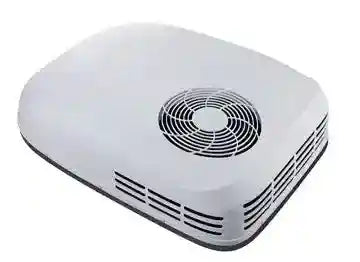

Cool-J 48VDC Inverter Low Profile Rooftop Air Conditioner

The Cool-J 48VDC Inverter Low Profile Rooftop Air Conditioner is a reverse-cycle unit designed for caravans, campervans, and motorhomes running off 48VDC power. It features a slim design, includes a low profile internal ADB panel, and supports WiFi control for easy operation.

Power Supply: 48VDC (operating voltage range: 38VDC to 56VDC) — runs directly off a 48V battery bank without needing a separate 240V inverter. Making this very efficient to run off batteries.

Specifications

• Model: RTN-135HP-VDC1
• Power supply: 48VDC (operating range 38V to 56V)
• Cooling capacity: 11,900 BTU/h (range 5,100 - 13,800 BTU/h)
• Heating capacity (heat pump): 11,600 BTU/h (range 5,100 - 13,000 BTU/h)
• Current draw: Cooling 12 - 32.8A; Heating 10.5 - 27.8A
• Power consumption: Cooling 583 - 1,752W; Heating 510 - 1,333W

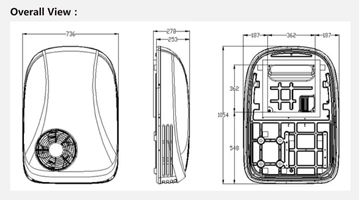

• Rooftop unit size: 738W x 253H x 1056L mm
• Weight: 42 kg (rooftop unit)
• Ceiling opening: Fits 400 x 400 mm or optional 362 x 362 mm
• Compressor: Highly variable-speed inverter type
• Base chassis: High strength metal
• Inner frame material: EPP (Expanded Polypropylene)
• Refrigerant: R32, 550g

Features

• Low profile rooftop design with a height of 253 mm
• 48VDC inverter operation for efficient energy use
• Dual-fan system reduces noise levels to 46-52 dB(A) indoors

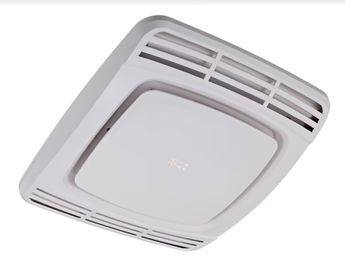

• Includes low profile indoor control panel

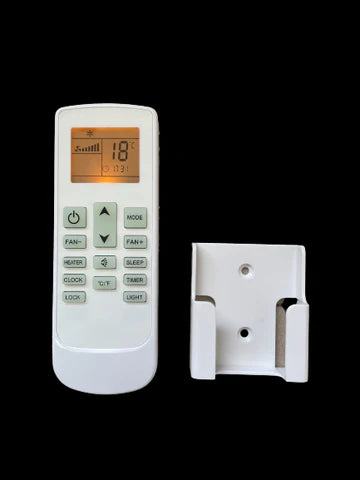

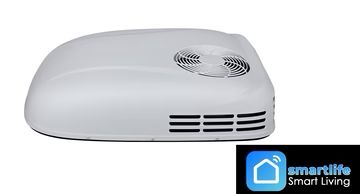

• WiFi app control and remote control for convenient operation
• Multicolour LED ceiling atmosphere lamp included
• 2-year compressor warranty and 1-year warranty on parts (excluding human damage)
