20Ah Lithium Life Po4 Invicta Battery

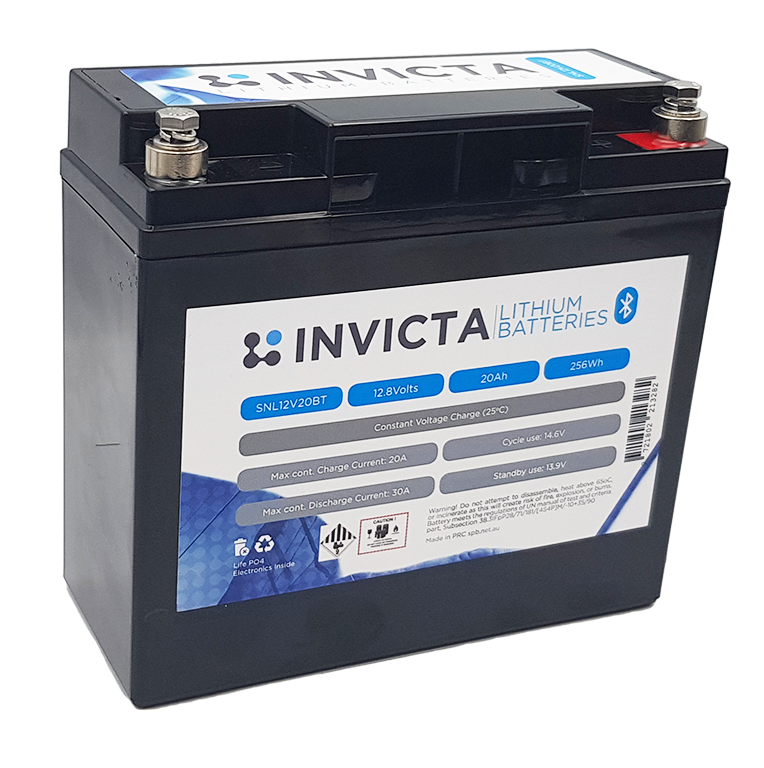

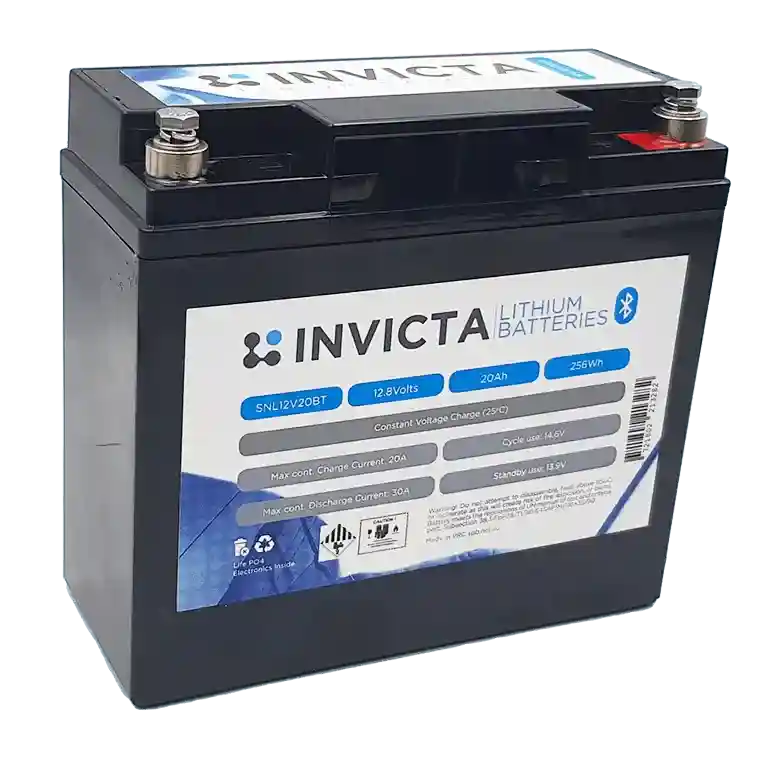

Invicta 12V 20Ah Lithium LiFePO4 Battery

The Invicta 12V 20Ah Lithium LiFePO4 battery is designed to replace similar sized lead-acid batteries with improved efficiency and longer life. Using Lithium Iron Phosphate (LiFePO4) technology, this battery suits deep cycle applications such as RVs, marine equipment, and solar systems. The battery includes a built-in Battery Management System (BMS) for overcharge, discharge, and short circuit protection.

Commonly used in our Autoterm Portable Heater kits for reliable power supply.

Features

• Long Cycle Life: More than 2000 cycles at 100% depth of discharge (DoD).
• Built-in BMS: Protects against overcharging, overdischarging, and short circuits.
• Higher Usable Capacity: 60% more usable capacity than equivalent sealed lead acid (SLA) batteries.
• Lightweight Design: Weighs 3.0kg, less than half the weight of lead-acid alternatives.
• Fast Charging: Quick recharge reduces downtime.
• Bluetooth Connectivity: Allows battery monitoring via compatible devices.

Specifications

• Nominal Voltage: 12.8V
• Capacity: 20Ah
• Terminal Type: M6
• Dimensions (L x W x H): 180mm x 76mm x 166mm
• Weight: 3.0kg
• Maximum Charge Voltage: 14.6V
• Max Continuous Discharge: 30A (30 minutes)
• Max Pulse Discharge: 55A (3 seconds)
• Operating Temperature (Charge): 0°C to 50°C
• Operating Temperature (Discharge): -20°C to 55°C
• Cycle Life (100% DoD): Over 2000 cycles

Use the Invicta 12V 20Ah Lithium LiFePO4 battery for long-lasting power in RVs, boats, solar energy systems, and heating applications. The integrated BMS and Bluetooth features enhance safety and monitoring capabilities.
