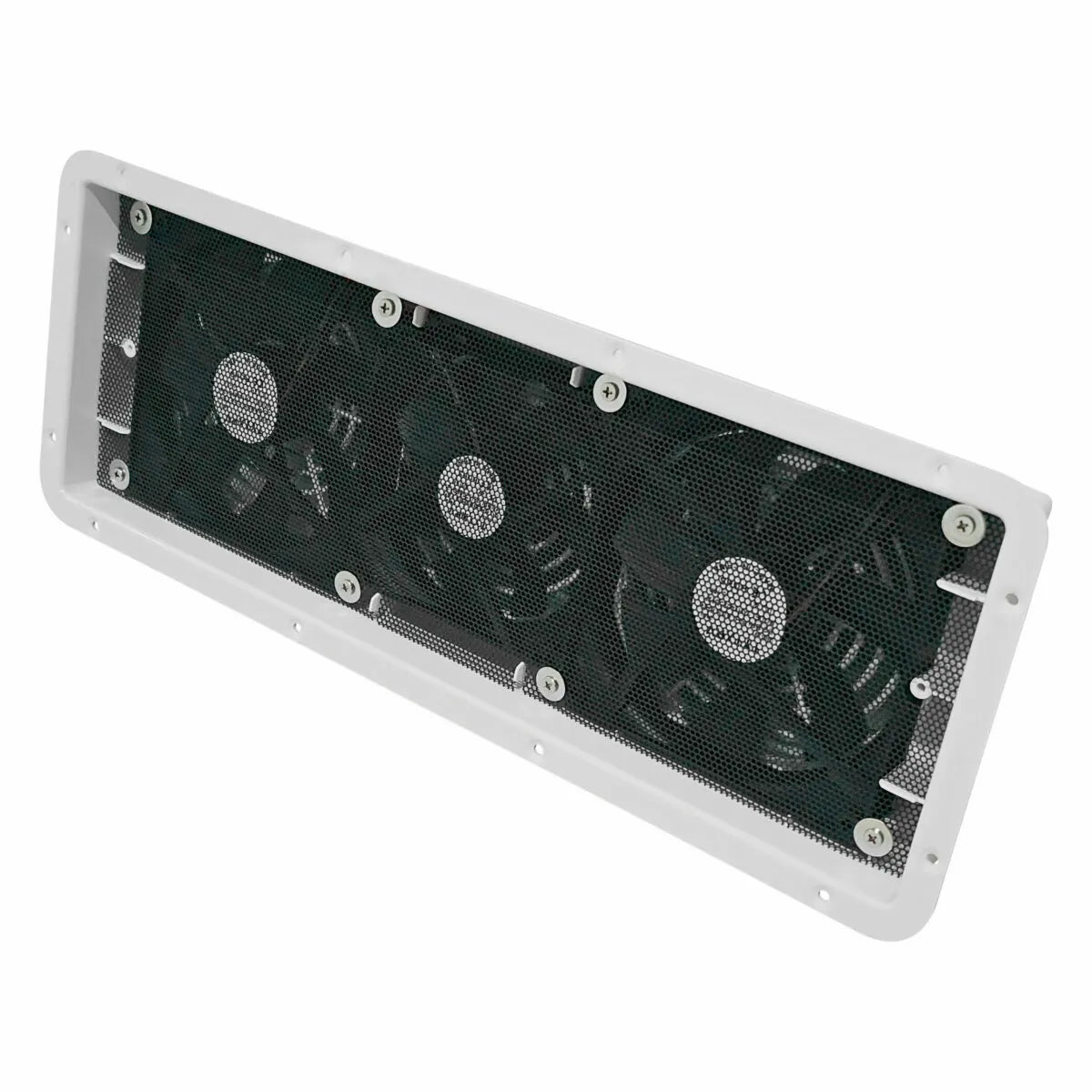

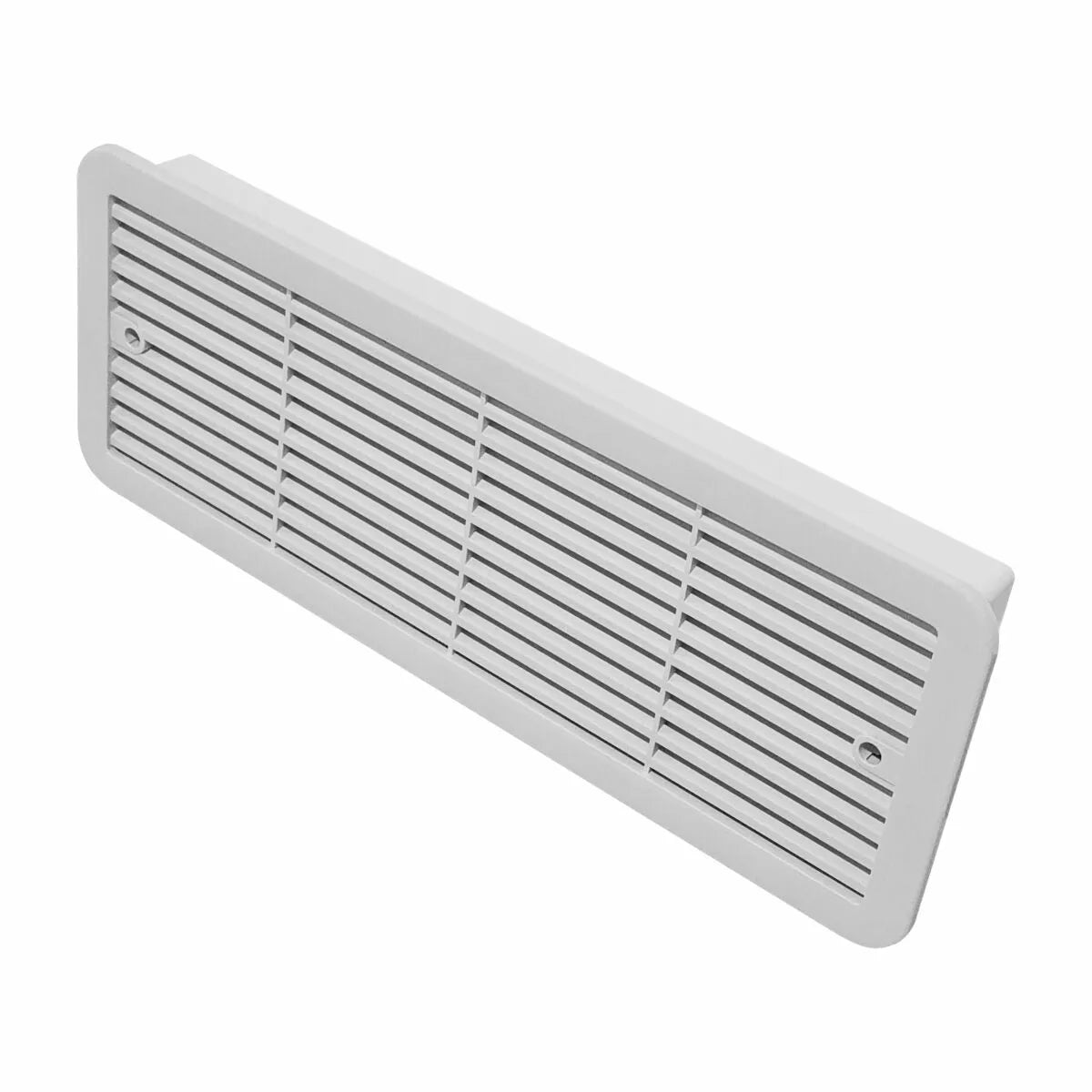

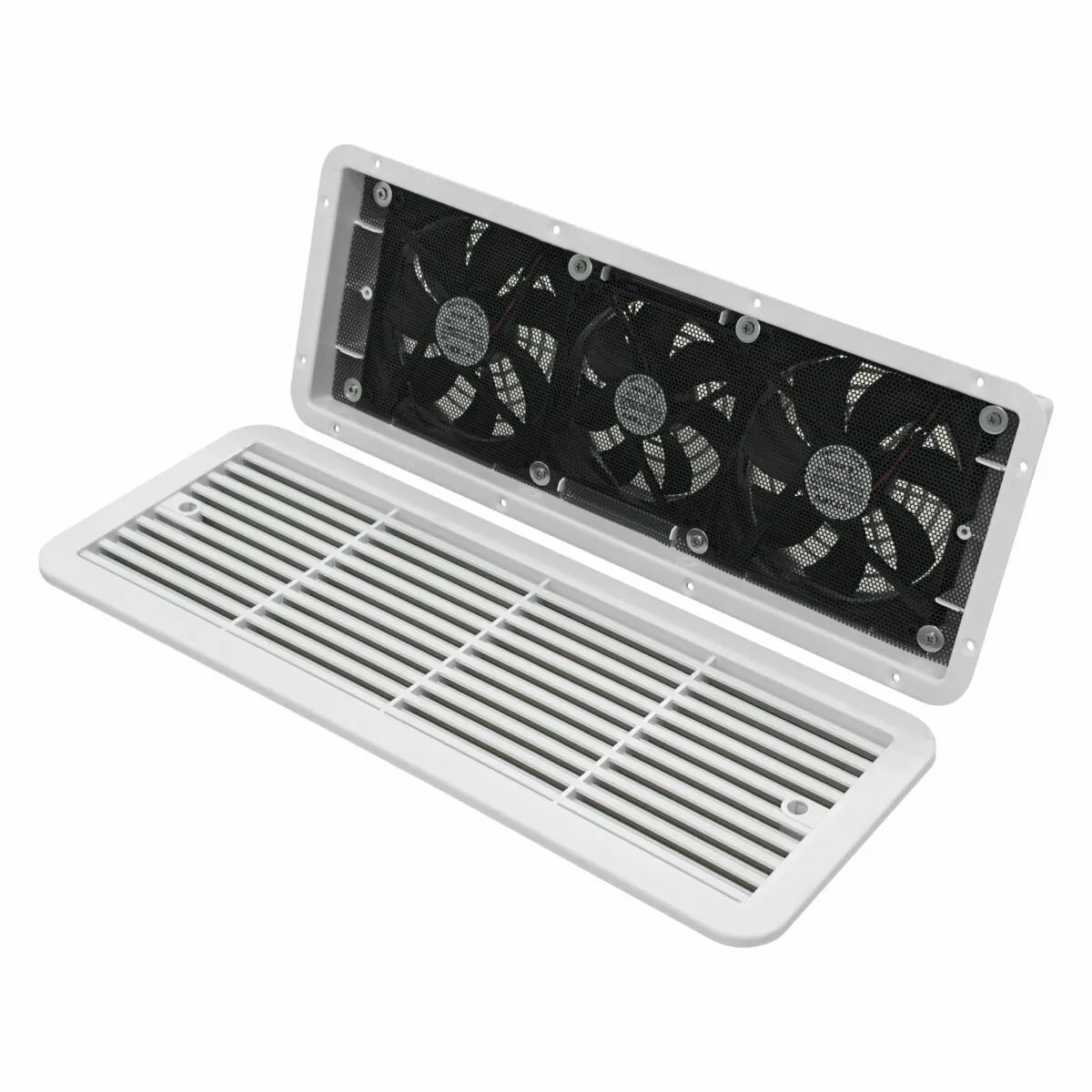

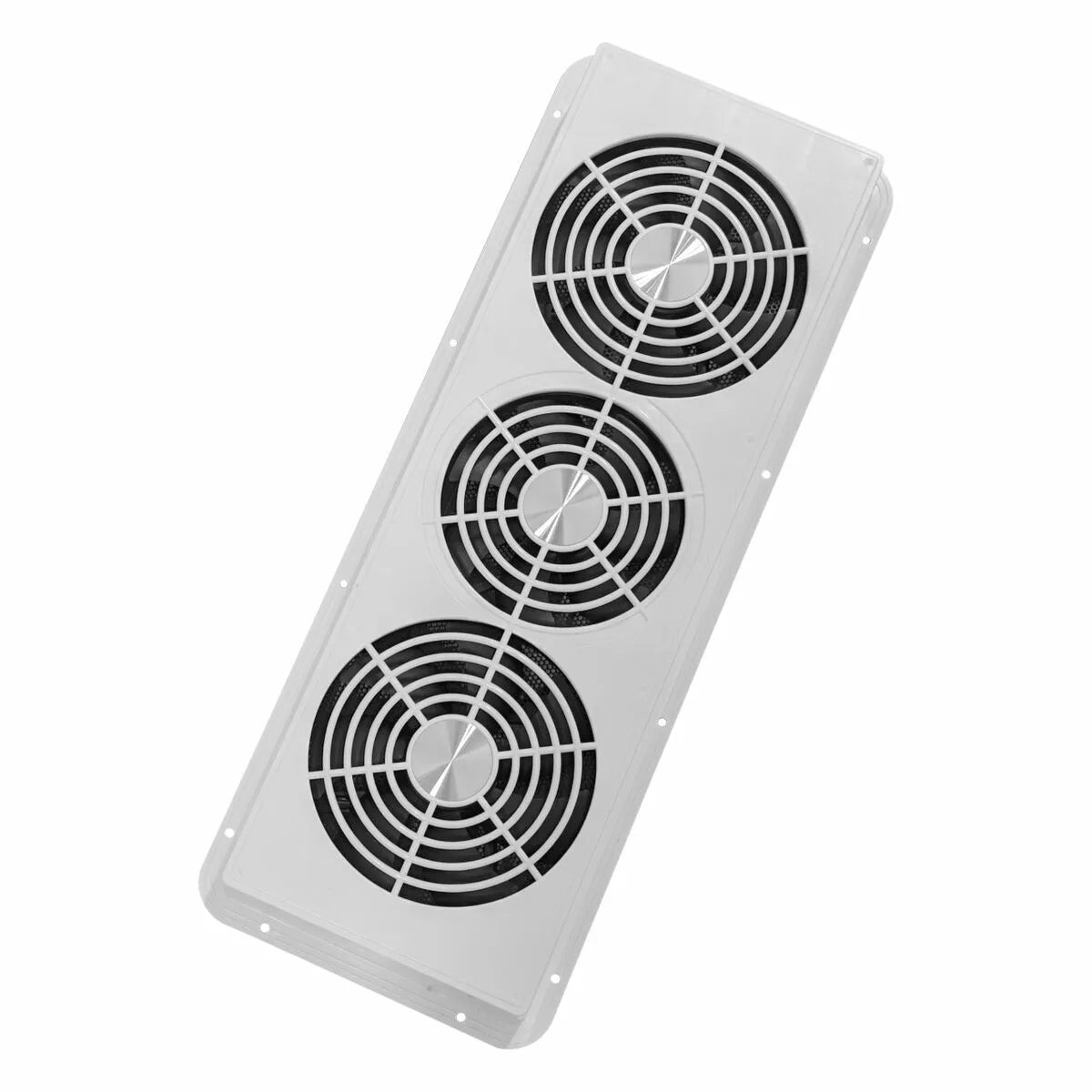

12V Caravan Fridge Vent with Triple Fans White 480mm

12V Caravan Fridge Vent with Triple Fans White 480mm

The 12V Caravan Fridge Vent White 480mm is designed to provide powered ventilation for caravan, motorhome and RV fridge compartments. It helps to extract warm air from behind the refrigerator, improving cooling efficiency. The vent features two 140mm outer fans and one 120mm centre fan operating together, delivering approximately 259 CFM combined airflow. The unit operates quietly at around 30.1 dB(A) measured at 1 metre and has an anti-UV ABS exterior grille. The vent measures 479 × 189 × 55mm and is suitable for installations requiring a 450 × 155mm cut-out.

Features

• Triple fans: Two 140mm outer fans plus one 120mm centre fan working simultaneously for effective warm air extraction.
• Approx. 259 CFM combined airflow: Combined nominal airflow based on manufacturer individual fan tests without insect mesh.
• Quiet operation: Noise level around 30.1 dB(A) at 1 metre for low-noise ventilation.
• 12V DC operation: Designed for caravan and RV electrical systems with installer-controlled ON/OFF switch.
• Extraction setup: Fans configured to exhaust warm air from inside the fridge compartment to outside; fan direction can be reversed for intake if required.
• Anti-UV ABS construction: Durable exterior grille and housing built for outdoor use.
• Replaceable fans: Each fan can be replaced individually to simplify maintenance.
• Installation requirements: Requires 450 × 155mm wall cut-out, minimum wall thickness 47mm, 5A fuse recommended, and minimum AWG 18 wiring.
• Operating conditions: Suitable for temperatures between -5°C and 50°C.
• Estimated fan life: Approximately 50,000 hours under normal operating conditions (30°C, 15–65% relative humidity).

Specifications

• SKU: TRA-VF480W
• Colour: White
• Voltage: 12V DC
• Fan sizes: 2 × 140 × 140 × 25mm outer fans, 1 × 120 × 120 × 25mm centre fan
• Fan speed: Outer fans approx. 2,000 RPM; centre fan approx. 1,850 RPM
• Airflow: Approx. 259 CFM combined nominal airflow*
• Noise level: Approx. 30.1 dB(A) at 1 metre
• Current draw: Approx. 0.4A continuous at 12V
• Start-up current: Requires 12V supply capable of at least 1A
• Fuse: 5A recommended
• Wire size: Minimum UL2468 AWG 18

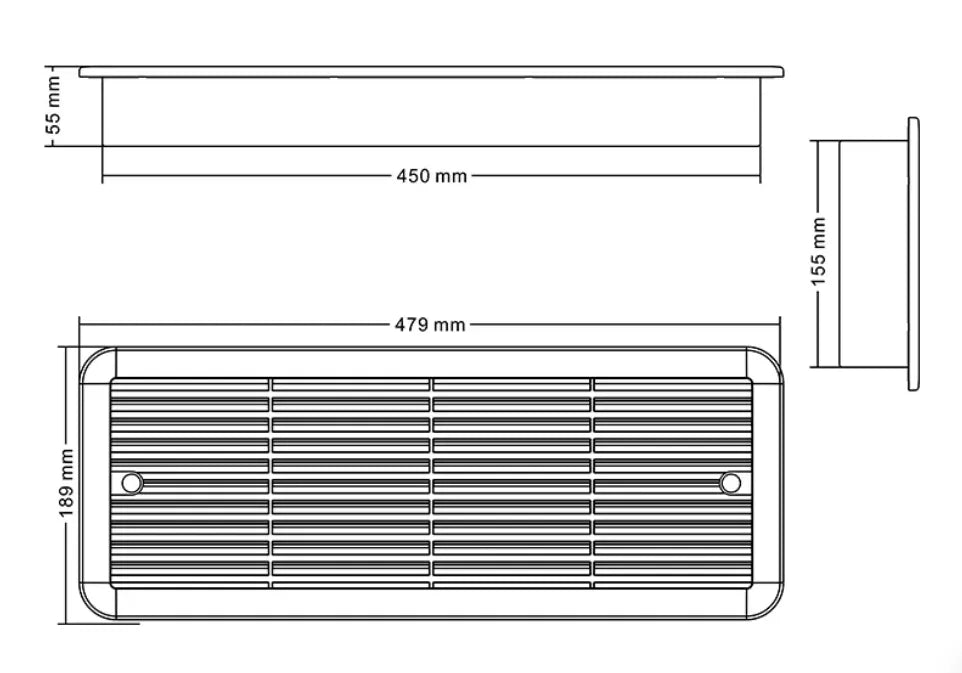

• Dimensions: 479 × 189 × 55mm (overall)
• Required cut-out: 450 × 155mm
• Minimum wall thickness: 47mm
• Material: Anti-UV ABS
• Operating temperature: -5°C to 50°C
• Estimated fan life: Approx. 50,000 hours**
• IP rating: No tested IP or weather-resistance rating

*Manufacturer airflow figures are based on individual fan testing without insect mesh and represent combined nominal airflow, not a full unit test.

**Life expectancy is manufacturer estimated under 30°C and 15–65% relative humidity conditions.

Ideal For

• Caravan fridge compartments
• Motorhomes
• Camper trailers
• 12V RV fridge ventilation
• Powered warm air extraction

Installation Tips

• Confirm 450 × 155mm wall cut-out and minimum 47mm wall thickness before installation.
• Use 5A fuse and minimum AWG 18 wiring for electrical connections.
• Install using structural adhesive or sealant around the vent edges and secure with screws.
• Correct positioning and sealing are critical for exterior installations.
• Fan direction can be physically reversed if intake ventilation is desired.
• Professional installation by a licensed electrician or installer is recommended.

What’s Included

• 1 × White 480mm 12V Caravan Fridge Vent with Triple Fans
• Mounting screws
• Decorative screw caps
