12V Caravan Fridge Vent with Triple Fans Black 480mm

12V Caravan Fridge Vent with Triple Fans Black 480mm

The 12V Caravan Fridge Vent with Triple Fans Black 480mm offers powered ventilation for caravan, motorhome, and RV fridge compartments. It helps remove warm air build-up behind the refrigerator. This vent includes two 140mm outer fans and one 120mm centre fan operating together, delivering approximately 259 CFM combined nominal airflow. It features quiet operation at about 30.1 dB(A) measured at 1 metre, and a durable anti-UV ABS exterior grille in a compact 479 × 189 × 55mm design.

Features

• Triple fans: Two 140mm outer fans and one 120mm centre fan work simultaneously to expel warm air from the fridge compartment.
• Approx. 259 CFM airflow: Combined nominal airflow based on manufacturer testing without insect mesh.
• Quiet operation: Low noise level of approximately 30.1 dB(A) at 1 metre.
• 12V DC operation: Suitable for caravan and RV electrical systems with installer-connected ON/OFF switch control.
• Extraction configuration: Fans come configured to remove warm air from inside the fridge compartment to outside, reversible if intake is needed.
• Anti-UV ABS construction: Durable exterior grille and housing resistant to UV damage.
• Replaceable individual fans: Each fan can be replaced separately if necessary.
• Estimated fan life: Approximately 50,000 hours under recommended operating conditions.

Specifications

• SKU: TRA-VF480B
• Colour: Black
• Voltage: 12V DC
• Fan sizes: 2 × 140 × 140 × 25mm outer fans, 1 × 120 × 120 × 25mm centre fan
• Fan speed: Outer fans ~2,000 RPM; centre fan 1,850 RPM
• Combined airflow: ~259 CFM nominal*
• Noise level: Approx. 30.1 dB(A) at 1 metre
• Continuous current: Approx. 0.4A at 12V
• Start-up current requirement: 12V supply capable of at least 1A
• Recommended fuse: 5A
• Recommended wiring: Minimum UL2468 AWG 18

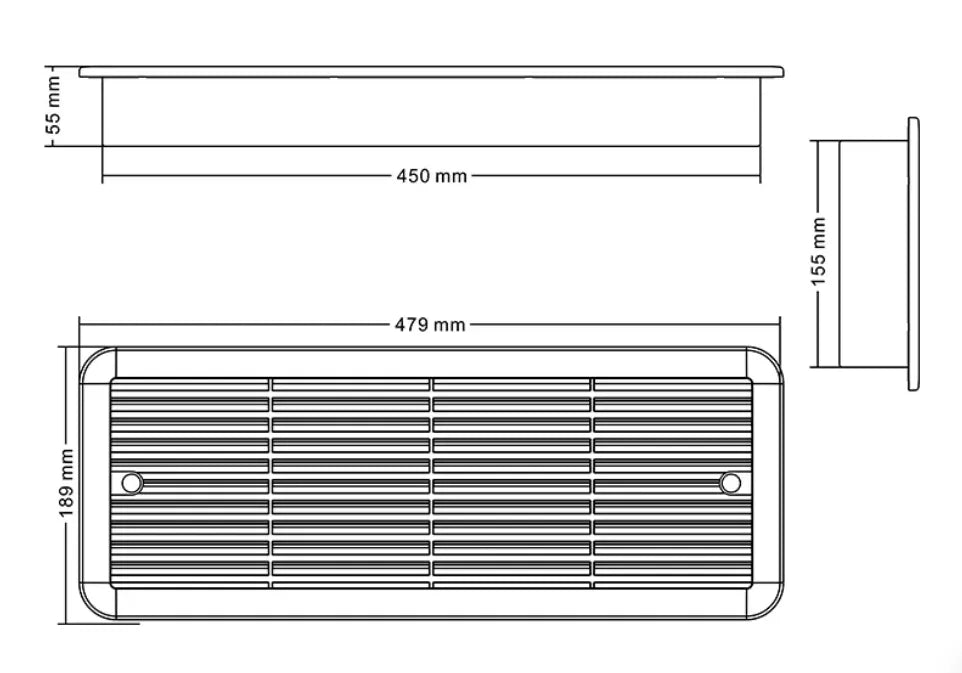

• Overall dimensions: 479 × 189 × 55mm
• Cut-out size: 450 × 155mm
• Minimum wall thickness: 47mm
• Material: Anti-UV ABS
• Operating temperature: -5°C to 50°C
• IP rating: No tested IP/weather-resistance rating

*Airflow measurements are manufacturer nominal totals calculated from individual fan testing without insect mesh.

Ideal for

• Caravan fridge compartments
• Motorhomes
• Camper trailers
• 12V RV fridge ventilation
• Powered warm-air extraction

Installation & Fitment

• Required wall cut-out: 450 × 155mm
• Minimum wall thickness: 47mm
• Use 5A fuse recommended
• Minimum wire size AWG 18 recommended
• Requires installer-connected ON/OFF switch
• Fans are preset for air extraction but can be reversed for intake
• Seal edges with structural adhesive or sealant and fix with screws for secure external installation
• No tested weatherproof IP rating; proper sealing is important

What’s Included

• 1 × Black 480mm 12V Caravan Fridge Vent with Triple Fans
• Mounting screws
• Decorative screw caps

Usage Tip

Ensure the fridge compartment has clear airflow paths before installation. Confirm cut-out size and wall thickness fitment.
