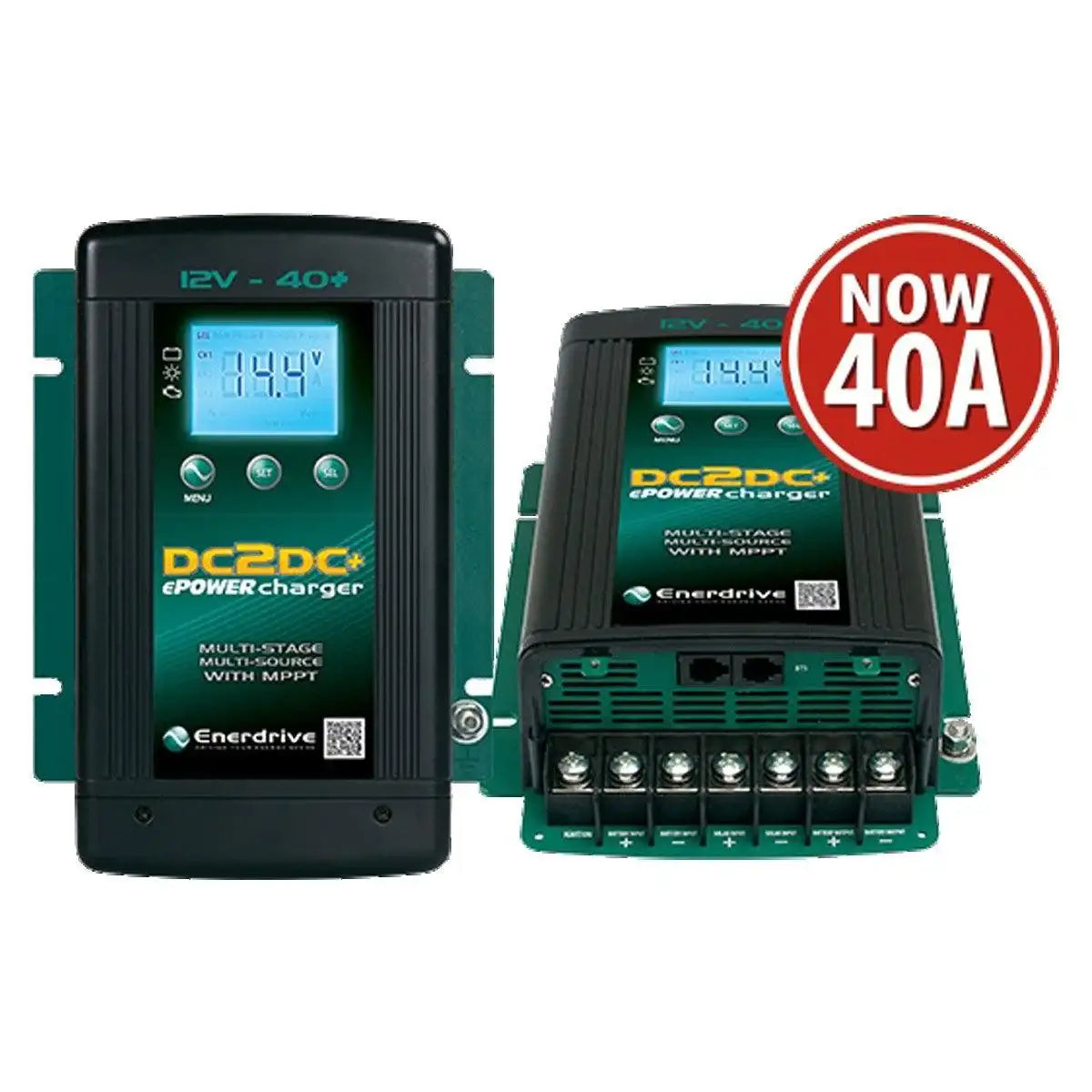

Enerdrive DC2DC 40+amp Battery Charger and Solar Regulator

Our Favorite DCDC charger great for all battery types including lithium.

We use this for all installs needing more than 30amps of charge capacity especially if needing to update the Solar charging.

Key Features:

Versatile Charging: Suitable for all battery types, including lithium, AGM, gel, and flooded batteries, with customizable settings.

High Capacity: Provides more than 30 amps of charge capacity, making it ideal for high output loads and solar charging updates.

Multiple Inputs: Features two separate DC inputs for engine/start battery and solar panel charging, with an MPPT solar regulator.

User-Friendly: Includes a programmable LCD display showing charging source, charger status, voltage, and amperage. Offers multistage smart charging technology for efficient battery management.

Specifications:

• Model: EN3DC40+
• Output: 12V nominal, 40A-50A maximum, 775W
• Input: 14.5-45V for solar, 10.5-16V or 21-32V for start/alternator
• Dimensions: 242mm x 172mm x 74mm
• Weight: 1.85 kg (shipping weight 2.17 kg)
• Efficiency: 95%
• Maximum solar input: 45V/800W
• Operates up to 40+°C with fan cooling

This charger is perfect for bus builds, taking 24V down to 12V, and can be permanently connected to your battery bank for continuous charging from multiple sources.

• Two separate DC Inputs for engine/start battery and solar panel charging to a single house battery bank
• M6 screw terminals
• Maximum Power Point (MPPT) solar regulator
• The same algorithms as used in the AC mains ePOWER battery charger.
• GEL, AGM, Flooded, Lithium with the ability to create a full custom profile
• Vehicle input of either 12 or 24v
• Maximum solar input of 45V/800W
• 40A output
• up to 40+°C with fan cooling

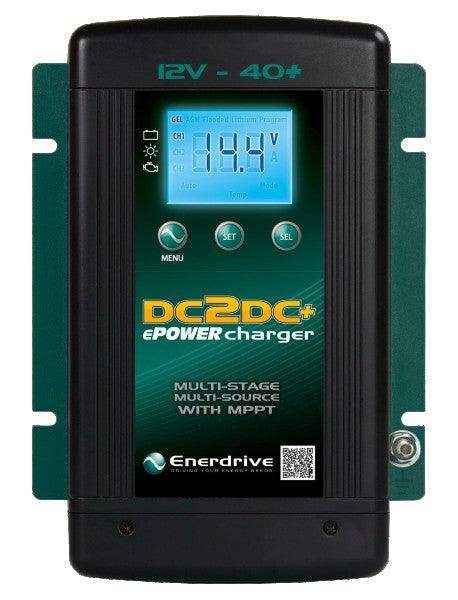

• Programmable LCD display to show which source is charging, along with charger status, voltage and amperage

DC 2 DC 40+amp Battery Charger/ MPPT Reg

During normal operation the ePOWER DC2DC+ Battery Charger will do a full charge cycle to float stage on the house battery bank with ability to choose either GEL, AGM, Flooded, Custom Programmable or Lithium. Once float stage is reached the charger transitions to a power supply mode to support any on-board DC loads.

Multistage Charging Process

The ePOWER DC2DC+ Battery Charger is a fully automatic, set and forget charger. It is designed to quickly and accurately recharge your deep cycle batteries utilising charger algorithms that help to maximise the life of your specialised deep cycle batteries.

The ePOWER DC2DC+ Battery Charger features multistage smart charging technology that enables the charger to be connected to your battery bank permanently. With the input of multiple sources, you can be assured of charging your batteries whenever underway; or when the sun is shining on your solar array.
