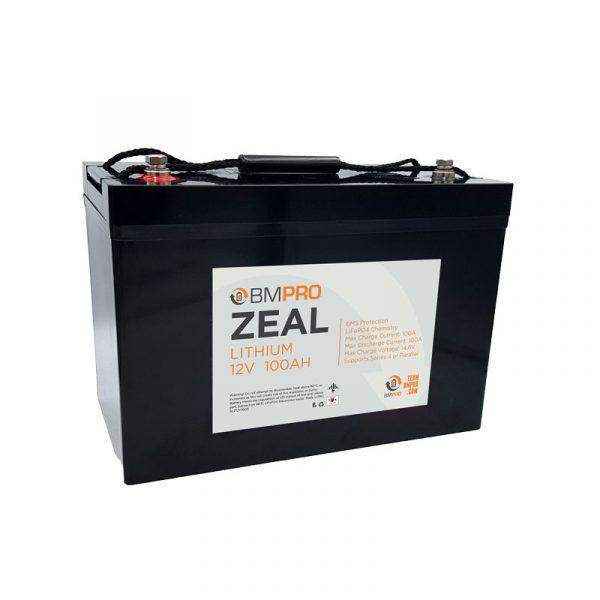

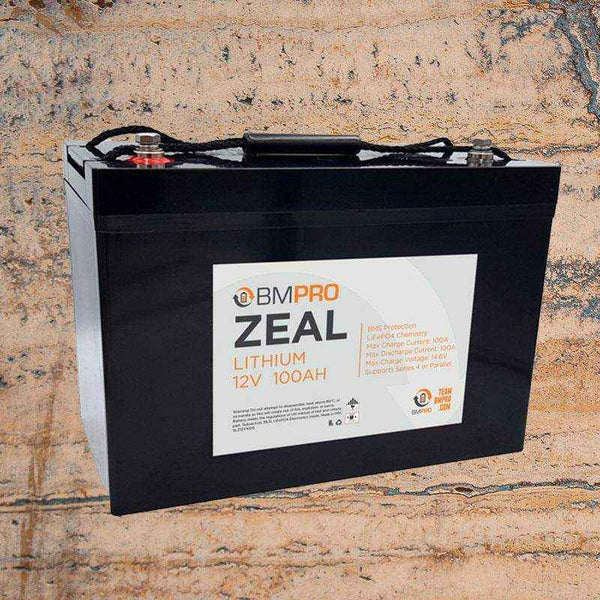

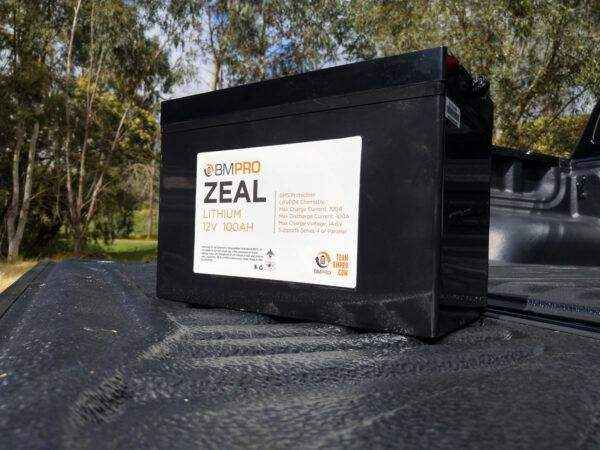

BMPRO Zeal 12v 100Ah Lithium Battery Lifepo4

BMPRO Zeal 12V 100Ah Lithium Battery LiFePO4

LiFePO4 – Ideal for Off-Grid Power

The BMPRO Zeal 12V 100Ah Lithium Battery uses LiFePO4 technology. It offers advantages over lead acid deep cycle batteries including longer life, lighter weight, and faster recharge.

Features

• Longer lifespan – lasts up to 5 times longer than lead acid batteries
• Higher usable capacity – delivers around 60% more usable power
• Lighter weight – approximately half the weight of sealed lead acid batteries (12.8 kg)
• Fast recharge – shorter charging time to get back on the road quickly
• Efficient power delivery – stable voltage ensures longer run-time
• Low self-discharge – retains charge during extended storage
• Integrated BMS (Battery Management System) protects against overcharge, over-discharge, temperature, and short circuit
• Aluminium case with prismatic LiFePO4 cells for stability and durability
• Suitable for deep cycle use in 4WDs, caravans, and recreational vehicles
• Can connect up to 4 batteries in series or parallel for increased voltage or capacity
• Not designed for engine starting or under bonnet use
• 3 year warranty

Specifications

• Nominal Voltage: 12.8 V
• Nominal Capacity: 100 Ah (at 25°C, 0.33C)
• Weight: 12.8 kg
• Dimensions (L x W x H): 306 x 167 x 211 mm
• Maximum Continuous Discharge Current: 100 A
• Maximum Pulse Discharge Current (3 sec): 300 A
• Maximum Charge Voltage: 14.6 ± 0.2 V
• Standby Voltage: 13.8 ± 0.2 V
• Cut-off Voltage: 10 V
• Terminal Type: M8
• Cycle Life: 1800+ cycles at 100% Depth of Discharge

Recommended Inverter Matching

• 100Ah battery – for inverters up to 1200 W
• 200Ah (2 batteries) – for inverters up to 2000 W (peak 3000 W)
• 300Ah (3 batteries) – for inverters up to 3000 W
