Enerdrive Inverter Charger Combi 3000W 100A 12v

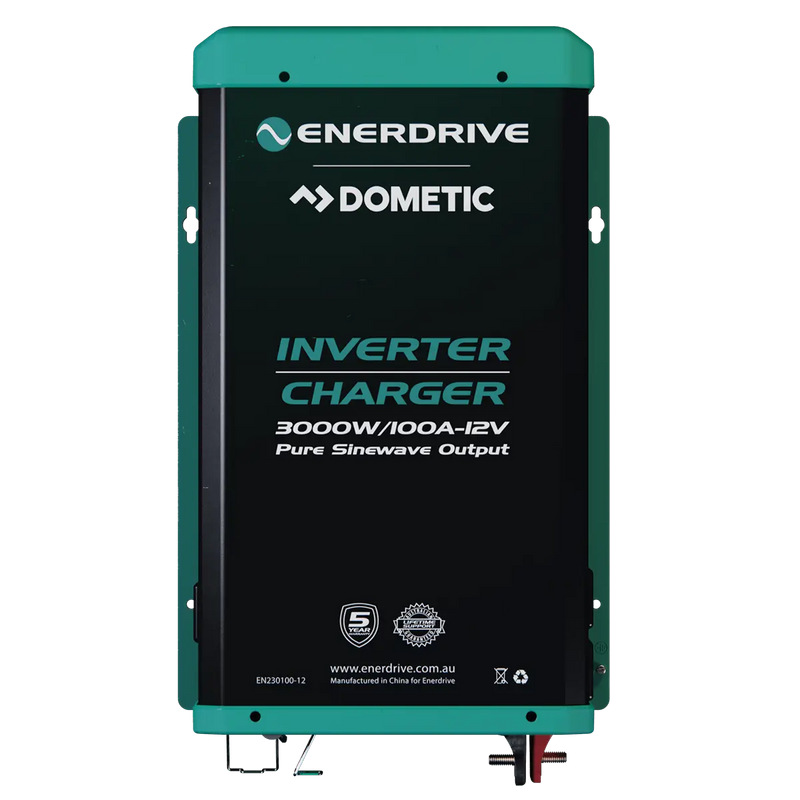

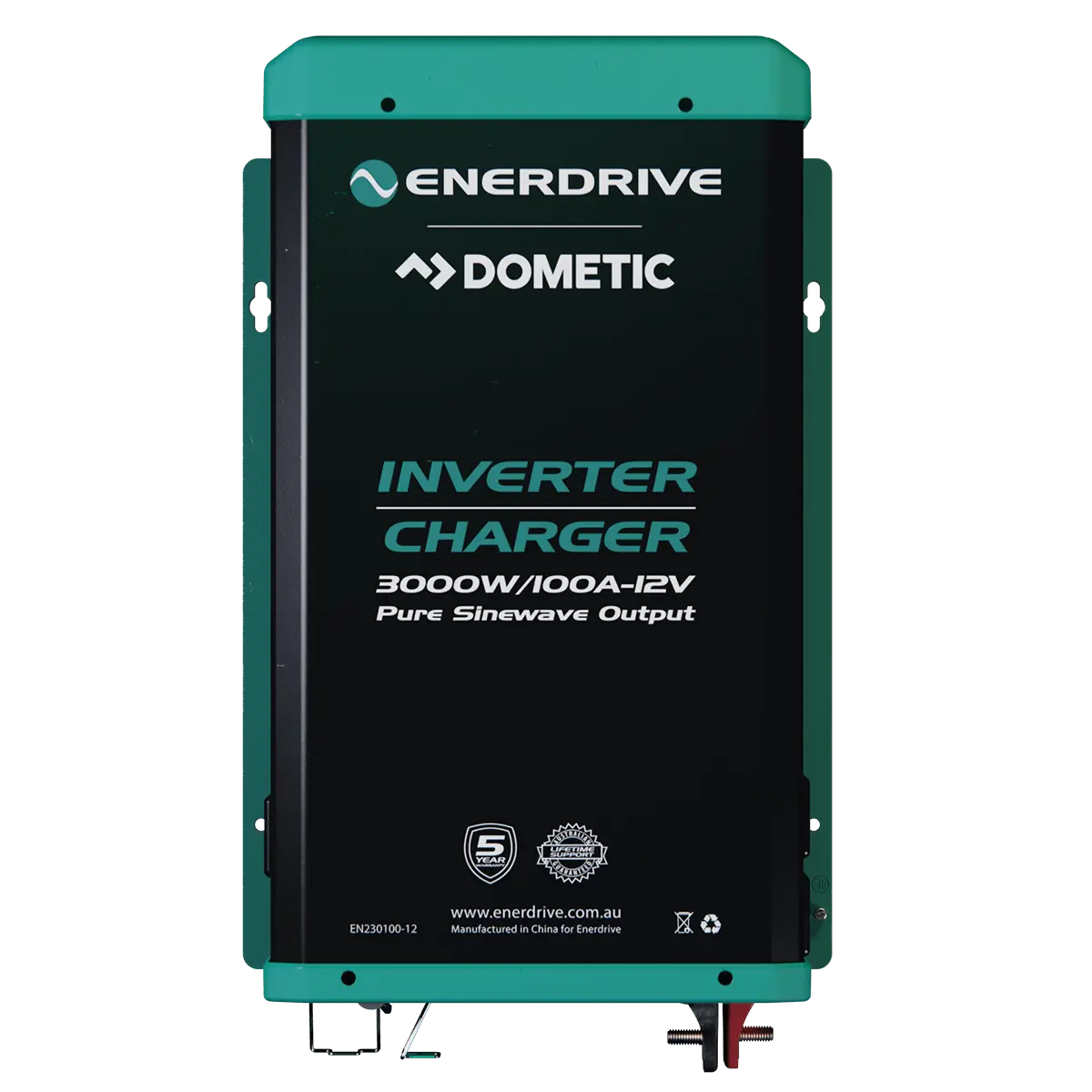

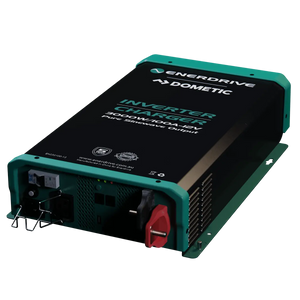

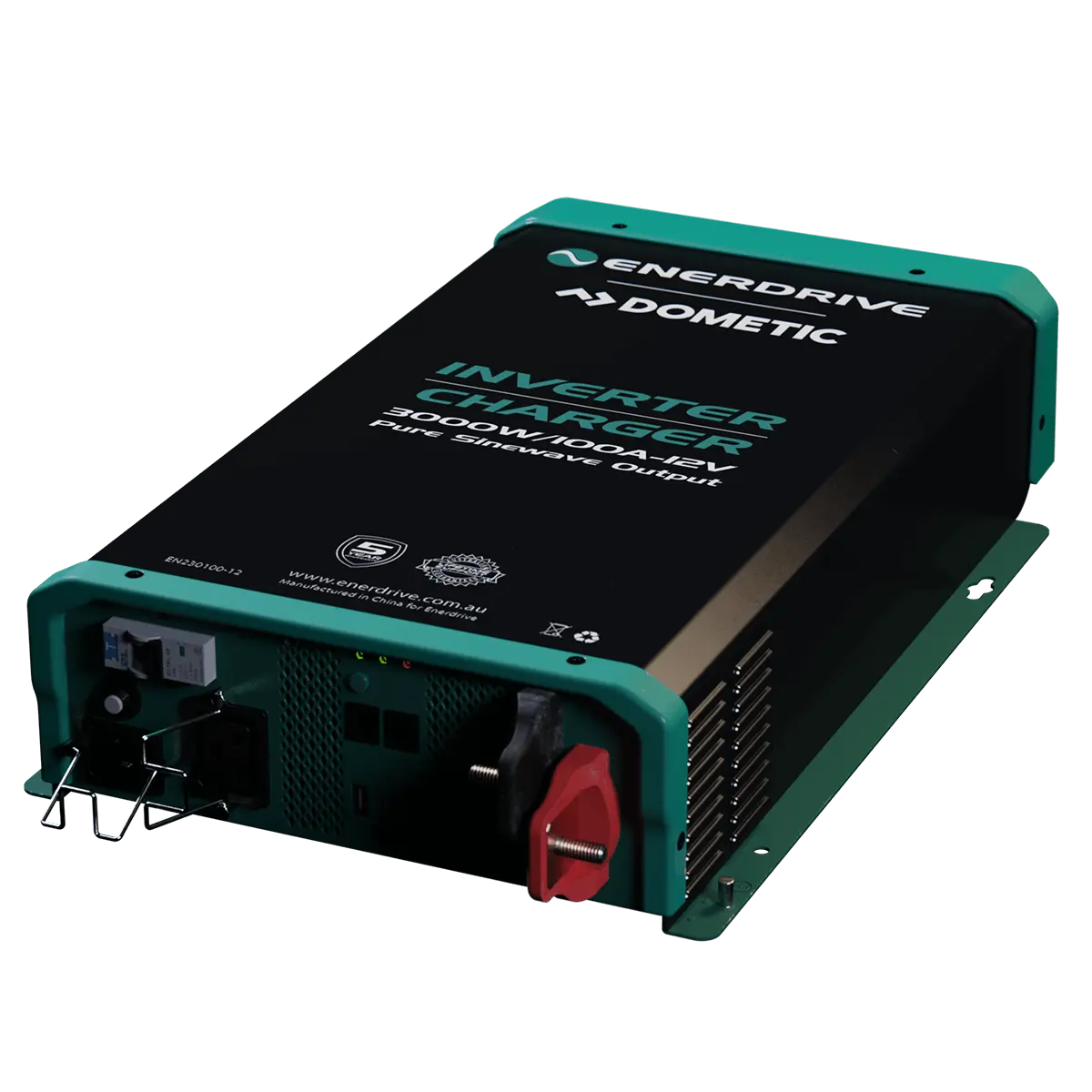

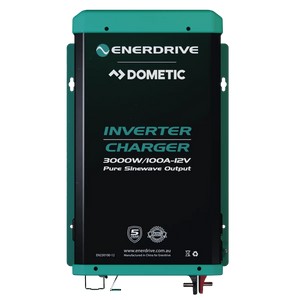

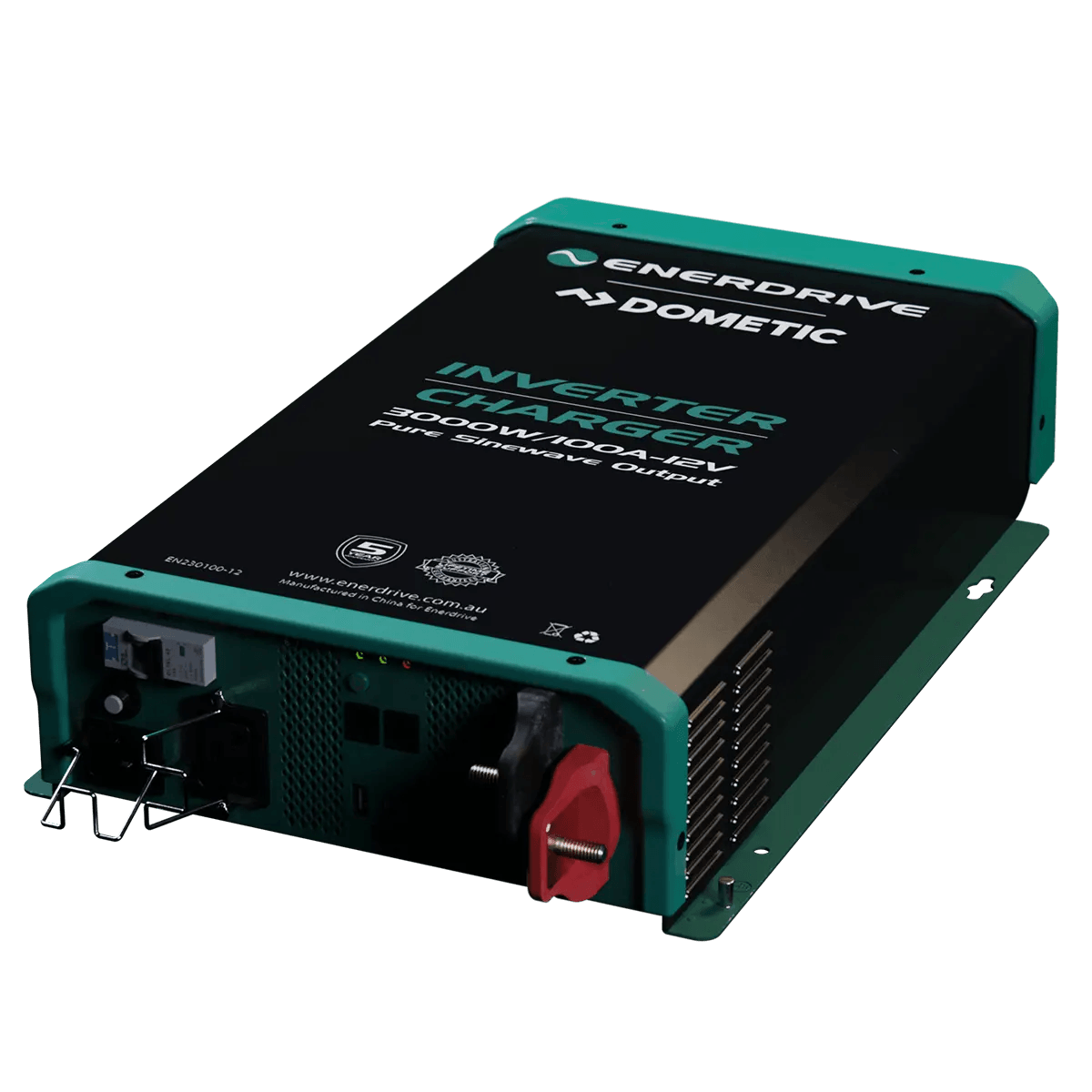

12V 3000W/100A Inverter-Charger (Model EN230100-12)

Introducing our advanced 12V 3000W/100A Inverter-Charger, a premier solution designed to provide you with reliable True Sinewave AC power for RVs, Marine, 4WD, and off-grid applications. It also efficiently recharges your battery when connected to 240V AC. This product combines state-of-the-art technology with user-friendly design, ensuring your power needs are met with efficiency and safety.

Key Features:

• True Sinewave Output: Delivers clean, stable power for sensitive electronics, ideal for high-power appliances.
• Automatic Transfer Switch: Quick switch between 240V mains and battery power, ensuring continuous power supply.
• Multi-Stage Charging: Tailored charging profiles for various battery types, maximizing battery lifespan.
• Safety First: Integrated AC RCD/Safety Switch for immediate power cut-off in case of electrical faults.
• Remote Control Display Panel: For easy monitoring and control of your power setup.
• Compact & Quiet Operation: Fits in tight spaces and runs quietly, perfect for any setup.

Technical Specifications:

• AC Output Power: 3000W
• Charger Output Current (Maximum): 100A
• AC Output Current: 13.0A
• AC Output Voltage: 230VAC
• AC Output Waveform: True Sinewave (<3% THD)
• Nominal DC Input Voltage: 12.5Vdc
• DC Input Voltage Operating Range: 10.5 – 16.5 VDC
• Under Voltage Alarm / Shutdown: 11.0 / 12.5 VDC & 10.5 / 12.0 VDC
• Over Voltage Shutdown: 16.5 VDC
• Transfer Time: <30ms
• Transfer Relay Rating: 16A
• AC Input/Output Sockets: IEC-C20 / IEC-C19 (16A Heavy Duty Connectors)
• Conformance: LVD: EN/IEC 62040-1, IEC 61558-2-16
• Agency Markings: CE
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 60°C
• Relative Humidity: 5 - 90% non-condensing
• Operating Altitude: Up to 3000m above sea level
• Weight: 10.4kg
• Dimensions (W x H x D): 440.7mm x 307mm x 108mm
• Warranty: 5 Years

What's Included:

• 1 x Enerdrive EN230100-12 3000W/100A-12V Inverter / Charger (Combi)
• Remote Control Display Panel
• 4m 1.5mm2 AC Lead with IEC C19-C20 Connectors
